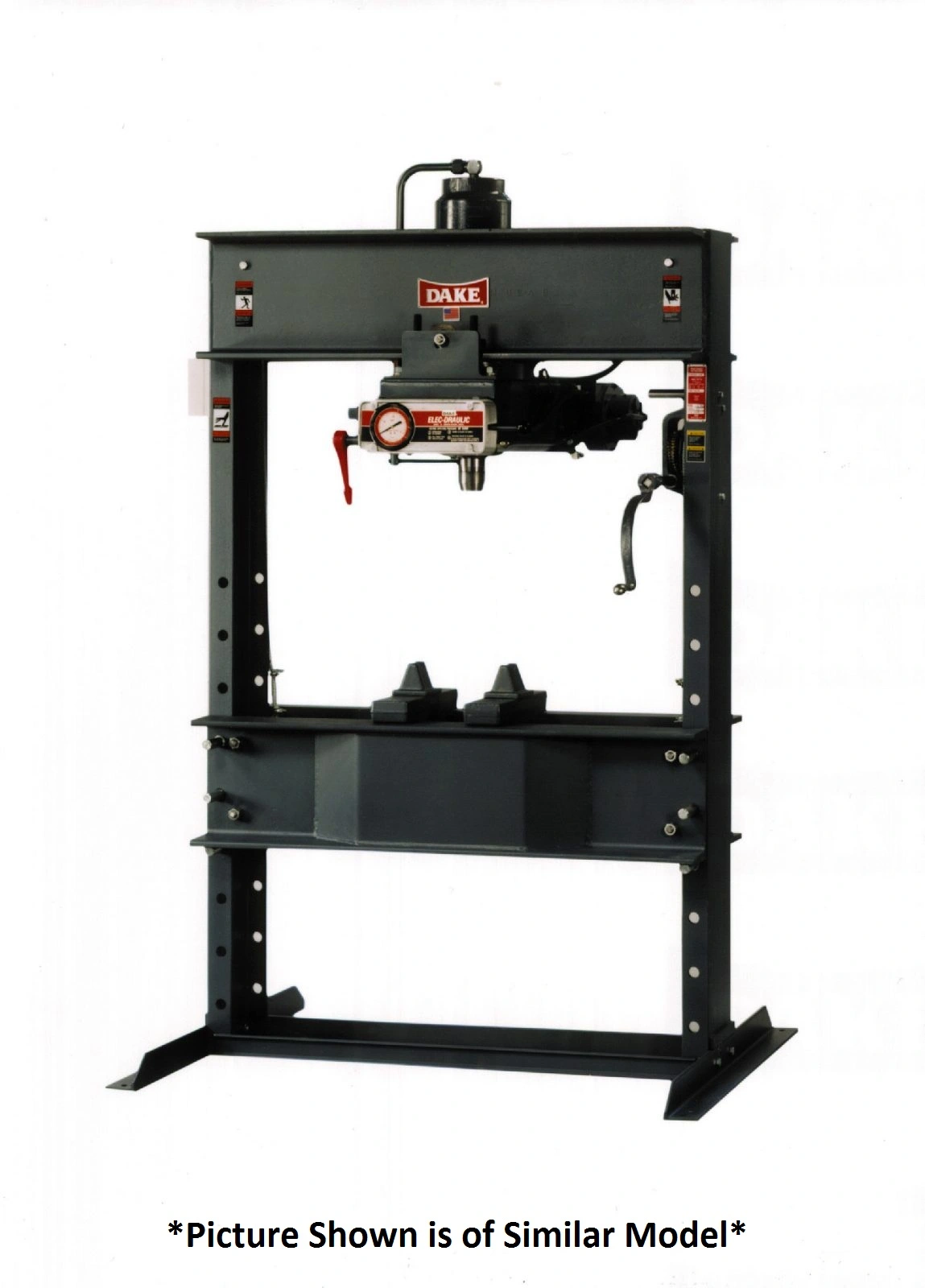

Dake 150 Ton Elec-Draulic I H-Frame Press, Model 5-150 – NEW
Number
905150
Capacity
150 tons
Operation
Electric
Horsepower
2
Voltage
220V/440V, 3-Phase
Width between uprights
48″
Width between table channels
12-1/4″
Minimum ram to table
10″
Maximum ram to table
30″
Ram travel
16″
Screw Travel
n/a
Horizontal workhead travel
24-3/4″
Footprint
66″ x 42″
Height
95″
Weight
3,000 lbs
Base
66″ x 42″
Ram advance speed
16 ipm
Pressing speed
2-3/4 ipm
RPM
1,800
Air Pressure
n/a
