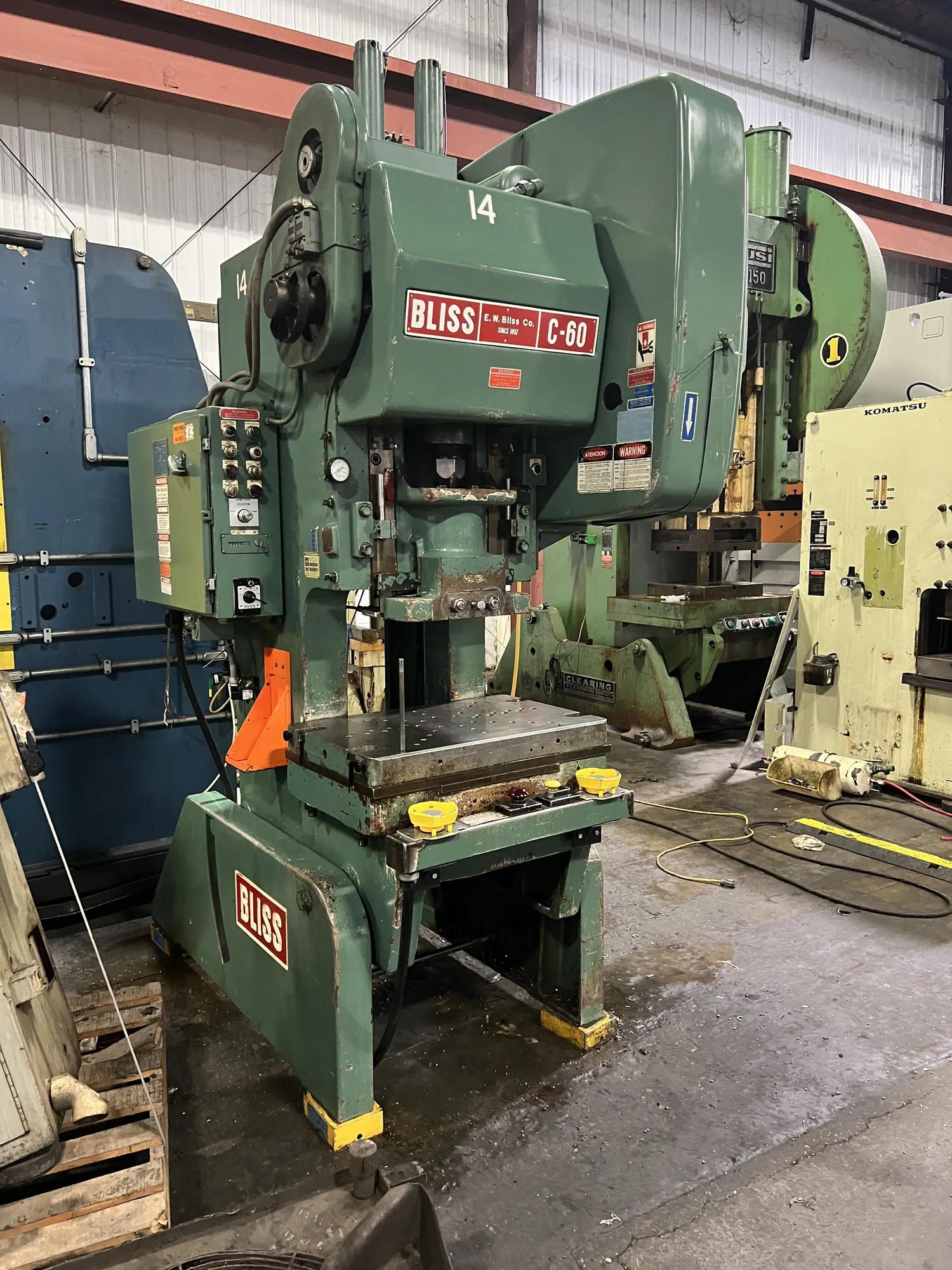

USED 1978 BLISS 60 TON OBI

BLISS 60 TON OBI PRESS, USED, MODEL SN H70655, 1978. 60-ton capacity, 21"x32" bed, 100 SPM, air clutch/brake, 7.5 HP motor, 460V 3-phase. Includes air counterbalances and palm buttons. Dimensions: 76"x80"x115", weight 10,600 lbs.

SPECIFICATIONS:
BLISS 60 TON OBI PRESS
S/N H70655
Capacity 60 Ton
Bed Size: 21" x 32"
Ram Face: 12" x 17"
Stroke: 4"
Adjustment: 3"
Shut Height: 14-1/4"
100 SPM
Center of Ram Back to Frame: 10-1/2"
Die Shank Hole
Single Speed
Palm Buttons
Air Clutch/Brake
Air Counterbalances
7-1/2 HP Motor, Wired 3 Phase, 60 Cycle, 460 Volts

Overall Dimensions: 76" L-R x 80" F-B x 115" H
Weight: 10,600 Lbs.
