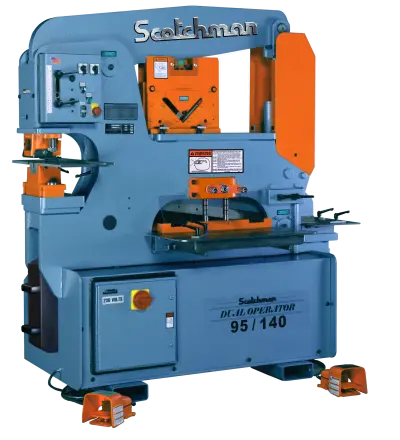

NEW SCOTCHMAN DO 95/140-24M

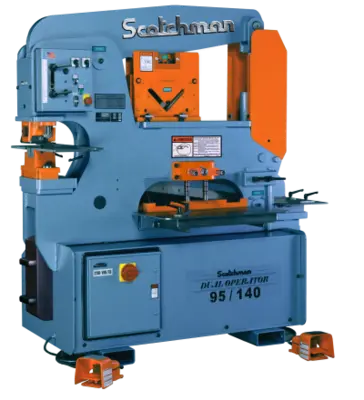

Scotchman 95 Ton Dual Operator Ironworker, Model DO 95/140-24M – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
95 ton
1-3/16″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
9″
Flat Bar Shear
(sabre blade-std.)
140 ton
24″ Length
1″ x 8″
3/4″ x 12″
1/2″ x 16″
3/8″ x 24″
Angle Shear 90°
Angle Shear 45°
(with Bar Shear)
6″ x 6″ x 1/2″
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
Brake 24″
80 ton
55 ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher
Schedule 40
3/4″
1″
1-1/4″
1-1/2
2″
90° V-Notcher
6″ x 6″ x 5/16″
Rectangle Notcher
3″ x 5″ x 3/8″
3″ x 4″ x 1/2″
V-Notch
3″ x 3″ x 3/8″
Notching in Leg of Channel
6″ to 10″
Channel Shear
2″ to 6″ adj.
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1-1/4″, 9 Cavity
1/4″ to 1″, 1 Cavity
Strut Shear
Samples Required
Square Tube Shear
1/2″ to 2″
12 gauge
Picket Tool
1/2″
3/4″
1″
16 gauge
Offset Die Holder
Max. 40 ton
Strokes per minute in light material
1/4″ stroke [Punch Station]
Strokes per minute in heavy material
3/4″ stroke [Punch Station]
Hydraulics
3,500/3,500 psi
Motor Standard
10 hp 3 ph
230/460
208/380/575
Motor Optional
10 hp 1 ph
220v
Dimensions
W-30″
L-65″
H-72 1/8″
Shipping Weight
3,800 lbs.
