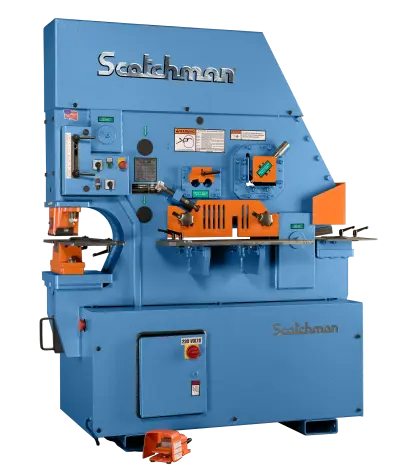

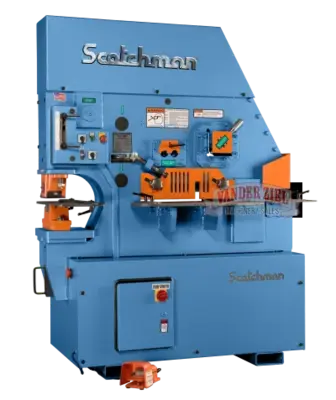

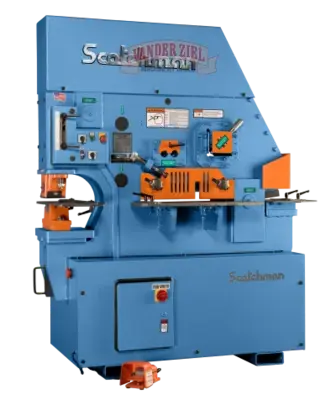

NEW SCOTCHMAN FI-8510-20M

Scotchman 85 Ton Fully Integrated Ironworker, Model FI-8510-20M – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
85 ton
1-1/16″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
10″
Flat Bar Shear
20″ Length
1″ x 12″
3/4″ x 20″
Angle Shear 90°
6″ x 6″ x 1/2″
45° with Bar Shear
4″ x 4″ x 1/2″
Brake 12″
85 ton
Brake 24″
85 ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher
Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2″
2″
90° V-Notcher
6″ x 6″ x 5/16″
Rectangle Notcher
90° V. Notch
3″ x 5″ x 1/2″
3″ x 3″ x 1/2″
Channel Shear
2″ to 6″ Adj.
Strut Shear
Samples Required
Rod Shear
Round Rod
Square Rod
1-1/2″
1-1/4″
Square Tube Shear
1/2″ to 2″
12 ga.
Picket Tool
1/2″
3/4″
1″
16 gauge
Offset Die Holder
Max. 40 ton
Strokes Per Minute in Light Material
1/4″ Stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ Stroke [Punch Station]
Hydraulics
2,600 psi
Motors Standard
5 hp 3 ph
230/460
208/380/575
Motors Optional
5 hp 1 ph
230v
Dimensions
W-30″
L-67″
H-77″
Shipping Weight
4,554 lbs.
