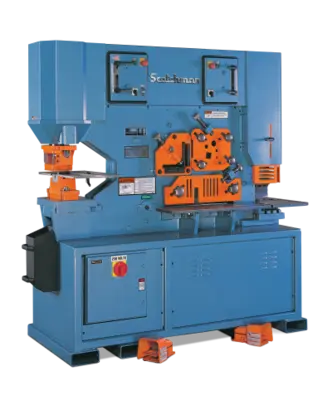

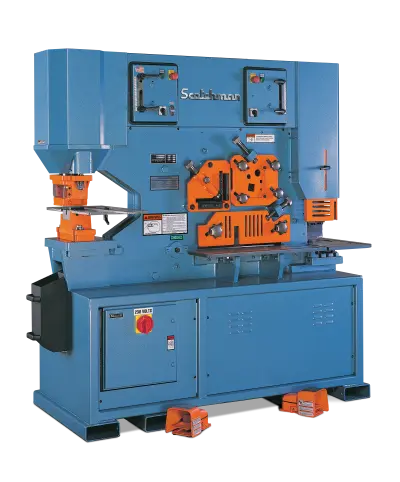

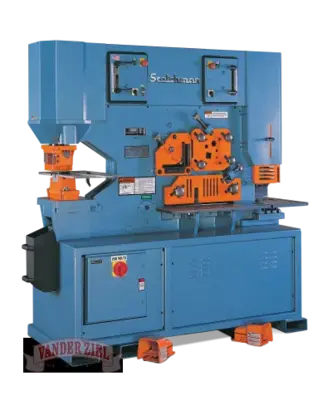

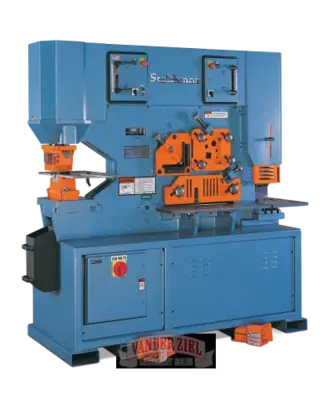

Scotchman 85 Ton Fully Integrated/Dual Operator Ironworker, Model DO-8514-20M – NEW
Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
85 ton
1-1/16″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
14″
Flat Bar Shear
20″ Length
1″ x 16″
3/4″ x 20″
Angle Shear 90°
6″ x 6″ x 1/2″
(45° with Bar Shear)
4″ x 4″ x 1/2″
Brake 12″
85 ton
Brake 24″
85 ton
Open End Brake
5″ x 5/8″
Pipe Notcher
Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2″
2″
90° V. Notcher
(Punch Station)
6″ x 6″ x 5/16″
Rectangle Notcher
2″ x 4″ x 1/2″
90° V. Notcher (Notcher Station)
3″ x 3″ x 1/2″
Punch Attachment
(Notcher Station)
Throat Depth w/Punch Attachment
50 ton
1-1/4″ in 1/2″
4-7/16″
Channel Shear
2″ to 6″
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)Square Rod (Max.)
1/2″
3/4″
1″
1-1/2″
1-1/2″
Square Tube Shear
1/2″ to 2″
12 gauge
Offset Die Holder
Max. 40 ton
Strokes per Minute in Light Material
1/4″ Stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ Stroke [Punch Station]
Hydraulics
3,350/3,800 psi
Motors Standard
10 hp 3 ph
230/460
208/380/575
Motor Optional
10 hp 1 ph
230v
Dimensions
W-30″
L-70″
H-77″
Shipping Weight
5,504 lbs
