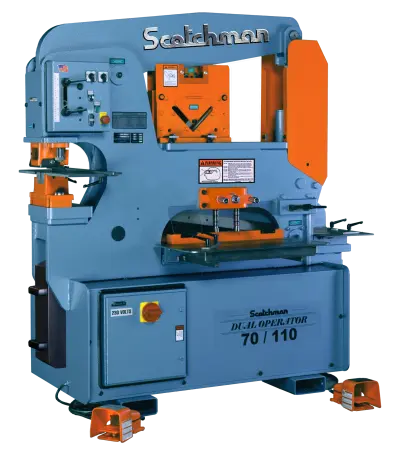

NEW SCOTCHMAN DO 70/110-24M

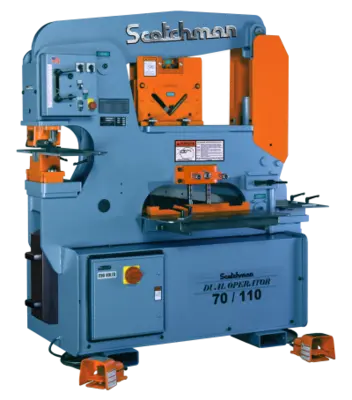

Scotchman 70 Ton Dual Operator Ironworker, Model DO 70/110-24M – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
70 ton
1-1/8″ in 3/4″
Special Tooling
4″ Max. Dia.
Throat Depth
9″
Flat Bar Shear
(Sabre Blade – Std)
110 ton
24″ Length
1″ x 6″
3/4″ x 10″
1/2″ x 14″
3/8″ x 24″
Angle Shear 90°
6″ x 6″ x 1/2″
Angle Shear 45°
(with Bar Shear)
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
65 ton
Brake 24″
45 ton
Open End Brake
Max. 1/4″ x 6″
Flat or Angle Iron
Pipe Notcher
Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2″
2″
90° V. Notcher
6″ x 6″ x 5/16″
Rectangle Notcher
V. Notch
Notching in Leg of
Channel
3″ x 5″ x 3/8″
3″ x 4″ x 1/2″3″ x 3″ x 3/8″6″ to 10″
Channel Shear
2″ to 6″ Adj.
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1-1/4″, 9 Cav.
1/4″ to 1″, 1 Cav.
Square Tube Shear
1/2″ to 2″, 12 gauge
Picket Tool
1/2″
3/4″
1″
16 gauge
Offset Die Holder
Max. 40 ton
Strokes Per Minute in Light Material
1/4″ Stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ Stroke [Punch Station]
Hydraulics
3,000/3,000 psi
Motors Standard
10 hp 3 ph
230/460
208/380/575
Motors Optional
10 hp 1 ph
230v
Dimensions
W-30″
L-65″
H-72-1/8″
Shipping Weight
3,800 lbs.
