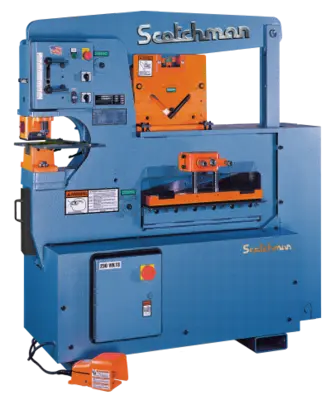

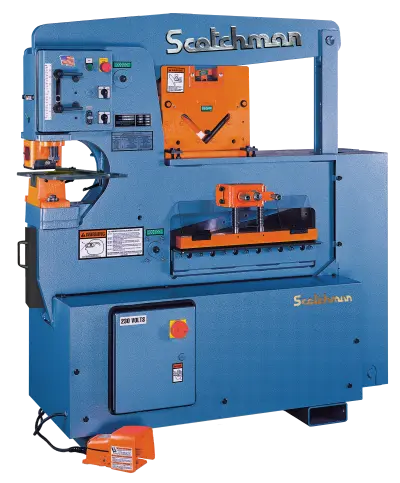

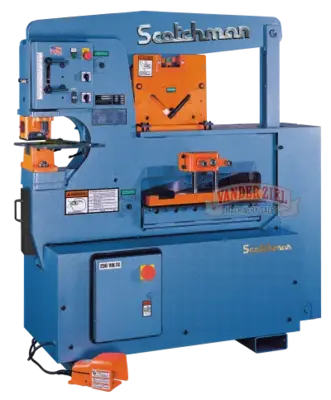

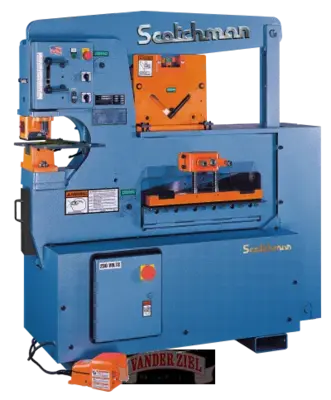

Scotchman 65 Ton Component Tool Ironworker, Model 6509-24M – NEW
Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
65 ton
1-1/16″ in 3/4″
Special Tooling
4″ Max. Dia.
Throat Depth
9″
Flat Bar Shear
24″ Length
1″ x 6″
3/4″ x 10″
1/2″ x 12″
3/8″ x 16″
1/4″ x 24″
Opt. Saber Blade
1″ x 6″
1/2″ x 16″
Angle Shear 90°
6″ x 6″ x 3/8″
5″ x 5″ x 1/2″
Angle Shear 45°
(with Bar Shear)
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
40 ton
Brake 24″
30 ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher
Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2″
2″
Rectangle Notcher
2″ x 2-1/2″ x 3/8″
90° V. Notcher
6″ x 6″ x 5/16″
Channel Shear
2″ to 5″ Adj.
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1-1/4″, 9 Cav.
1/4″ to 1″, 1 Cav.
Square Tube Shear
1/2″ to 2″,
12 ga.
Picket Tool
1/2″
3/4″
1″
16 gauge
Offset Die Holder
Max. 40 ton
Strokes Per Minute in Light Material
1/4″ Stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ Stroke [Punch Station]
Hydraulics
2,600 psi
Motors Standard
5 hp 3 ph
230/460
208/380/575
Motors Optional
5 hp 1ph
230v
Dimensions
W-24″
L-60″
H-66″
Shipping Weight
2,984 lbs.
