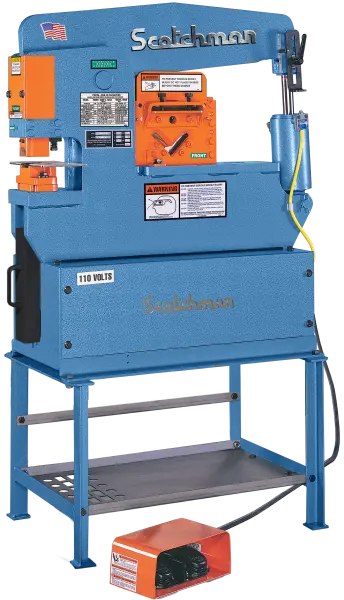

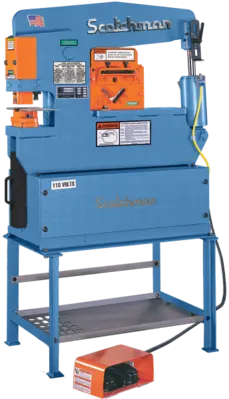

NEW SCOTCHMAN PORTA FAB 45

Scotchman 45 Ton Component Tool Ironworker, Model Porta Fab 45 – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
45 Ton
1-1/8″ in 1/2″
Special Tooling
2-1/4″ Max. Dia.
Throat Depth
4-1/4″
Flat Bar Shear
6″ Length
1/2″ x 4″
3/8″ x 6″
Angle Shear 90°
3″ x 3″ x 5/16″
Angle Shear 45°
2″ x 2″ x 1/4″
Round Rod
3/4″
Brake 8″
25 Ton
Brake 12″
20 Ton
Open End Brake
Max. 1/4″ x 3″
Flat or Angle Iron
Pipe Notcher
Schedule 40
3/4″, 1″
1-1/4″
1-1/2″, 2″
Rectangle Notcher
2″ x 1-3/4″ x 1/4″
90° V. Notcher
6″ x 6″ x 1/8″
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)Square Rod (Max.)
1/4″ to 1″
5 Cavity
7/16″, 9/16″
5/8″, 3/4″, 1″1/4″ to 3/4″
1 Cavity
3/4″
Square Tube Shear
1/2″ to 1″
12 ga.
Picket Tool
1/2″, 3/4″, 1″
16 ga.
Strokes per minute in light material
1/4″ Stroke [Punch Station]
Strokes per minute in heavy material
3/4″ Stroke [Punch Station]
Hydraulics
2500 psi
Motor Standard
2 hp 1 ph
110v
Motor Optional
2 hp 1 ph
220v
Dimensions
W-17.63″
L-35.75″
H-38.75″
Shipping Weight
724 lbs.
