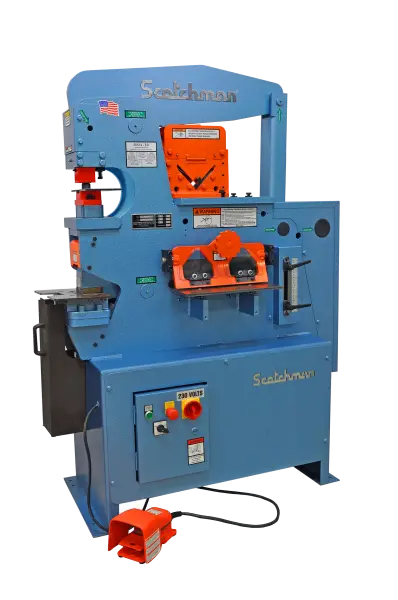

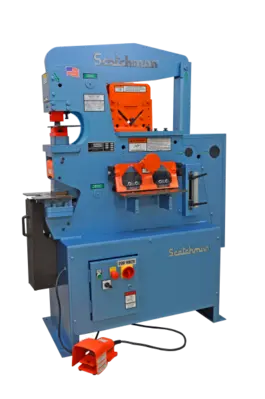

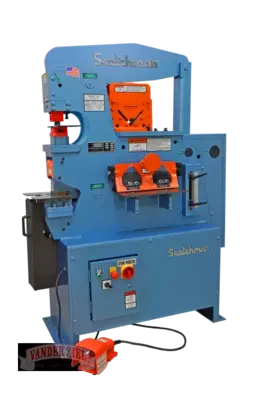

Scotchman 50 Ton Component Tool Ironworker, Model 50514-EC – NEW
Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
50 ton
1-1/4″ in 1/2″
13/16″ in 3/4″
Special Tooling
2-1/4″ Max. Dia.
Throat Depth
6″
Flat Bar Shear
14″ Length
3/4″ x 4″
1/2″ x 8″
3/8″ x 10″
1/4″ x 14″
Opt. Saber Blade
1/2″ x 10″
3/8″ x 12″
Angle Shear 90°
4″ x 4″ x 3/8″
Angle Shear 45°
2″ x 2″ x 3/8″
Brake 8″
30 ton
Brake 12″
25 ton
Open End Brake
Max. 1/4″ x 3″
Flat or Angle Iron
Pipe Notcher
Schedule 40 I.D.
3/4″, 1″
1-1/4″
1-1/2″, 2″
Rectangle Notcher
2-1/2″ x 3″ x 5/16″
2-1/2″ x 2-3/4″ X 3/8″
90° V. Notcher
6″ x 6″ x 1/8″
3″ x 3″ X 1/4″
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1″
5 Cavity
7/16″, 9/16″
5/8″, 3/4″, 1″1/4″ to 3/4″
1 Cavity
3/4″
Square Tube Shear
1/2″ to 1″
12 ga.
Picket Tool
1/2″
3/4″
1″
16 Gauge
Strokes Per Minute in Light Material
1/4″ stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ stroke [Punch Station]
Hydraulics
2350 psi
Motors Standard
3 hp 3 ph
230/460
208/380/575
Motors Optional
5 hp 1 ph
220v
Dimensions
W-29″
L-47″
H-59″
Shipping Weight
1,515 lbs.
