NEW SCOTCHMAN DO 120/200-24M

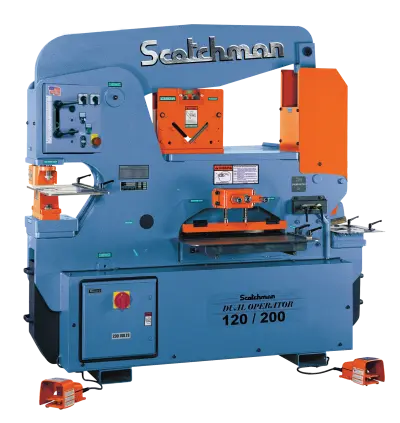

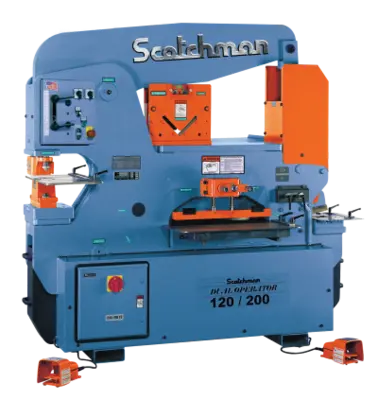

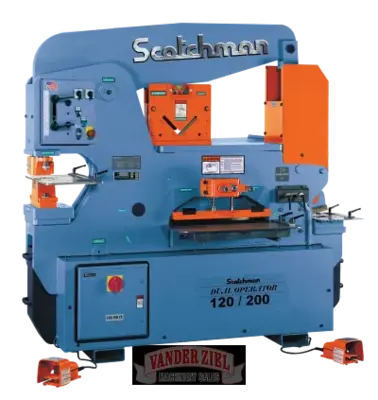

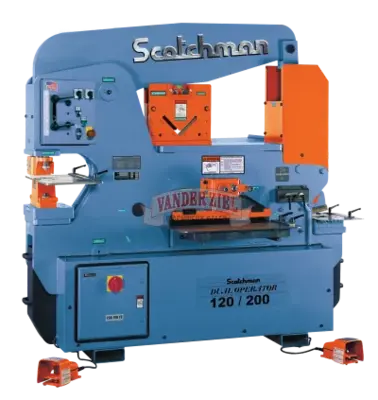

Scotchman 120 Ton Dual Operator Ironworker, Model DO 120/200-24M – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
120 ton
1-1/2″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
12″
Flat Bar Shear
(Sabre Blade – Std)
200 ton, 24″ Length
1″ x 12″
3/4″ x 20″
1/2″ x 24″
Angle Shear 90°
6″ x 6″ x 1/2″
Angle Shear 45°
(with Bar Shear)
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
75 ton
Brake 24″
55 ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2″
2″
90° V. Notcher
6″ x 6″ x 5/16″
Rectangle Notcher
V-Notch
Notching in Leg of
Channel
3″ x 5-3/4″ x 1/2″
3″ x 3″ x 1/2″
6″ to 10″
Channel Shear
2″ to 6″ Adj.
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1-1/4″, 9 Cav.
1/4″ to 1″, 1 Cav.
Square Tube Shear
1/2″ to 2″,
12 ga.
Picket Tool
1/2″
3/4″
1″
16 ga.
Offset Die Holder
Max. 40 ton
Strokes Per Minute in Light Material
1/4″ Stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ Stroke [Punch Station]
Hydraulics
3,500/3,500 psi
Motors Standard
10 hp 3 ph
230/460
208/380/575
Motors Optional
10 hp 1 ph
230v
Dimensions
W-34″
L-77.25″
H-74.25″
Shipping Weight
6,204 lbs.
