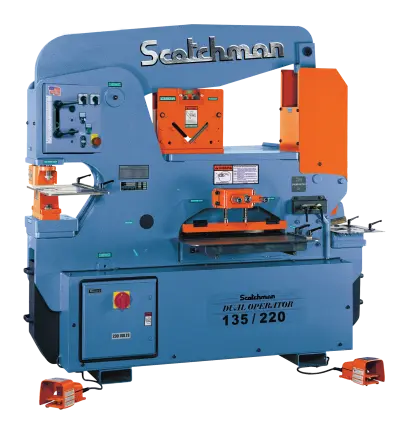

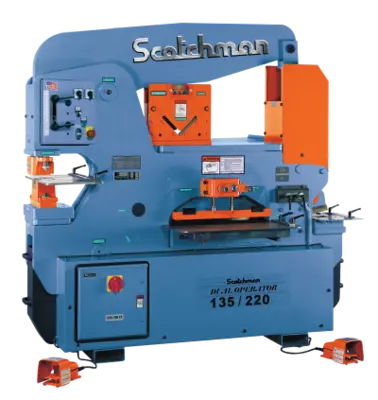

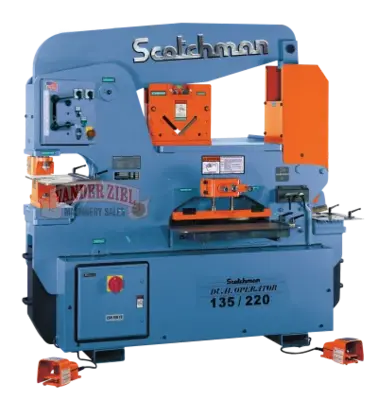

NEW SCOTCHMAN DO 135/220-24M

Scotchman 135 Ton Dual Operator Ironworker, Model DO 135/220-24M – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
135 ton
1-11/16″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
12″
Flat Bar Shear
(sabre blade-std.)
220 ton, 24″ Length
1″ x 12″
3/4″ x 20″
1/2″ x 24″
Angle Shear 90°
Angle Shear 45°
(with Bar Shear)
6″ x 6″ x 1/2″
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
Brake 24″
90 ton
70 ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher
Schedule 40
3/4″
1″
1-1/4″
1-1/2″
2″
90° V-Notcher
6″ x 6″ x 5/16″
Rectangle Notcher
3″ x 5-3/4″ x 1/2″
V-Notch
3″ x 3″ x 1/2″
Notching in Leg of Channel
6″ to 10″
Channel Shear
2″ to 6″ adj.
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1-1/4″, 9 Cavity
1/4″ to 1″, 1 Cavity
Square Tube Shear
1/2″ to 2″
12 gauge
Picket Tool
1/2″
3/4″
1″
16 gauge
Offset Die Holder
Max. 40 ton
Strokes per minute in light material
1/4″ stroke [Punch Station]
Strokes per minute in heavy material
3/4″ stroke [Punch Station]
Hydraulics
3,500/3,500 psi
Motor Standard
10 hp 3 ph
230/460
208/380/575
Motor Optional
10 hp 1 ph
230v
Dimensions
W-34″
L-77-1/4″
H-74 1/4″
Shipping Weight
6,404 lbs.
