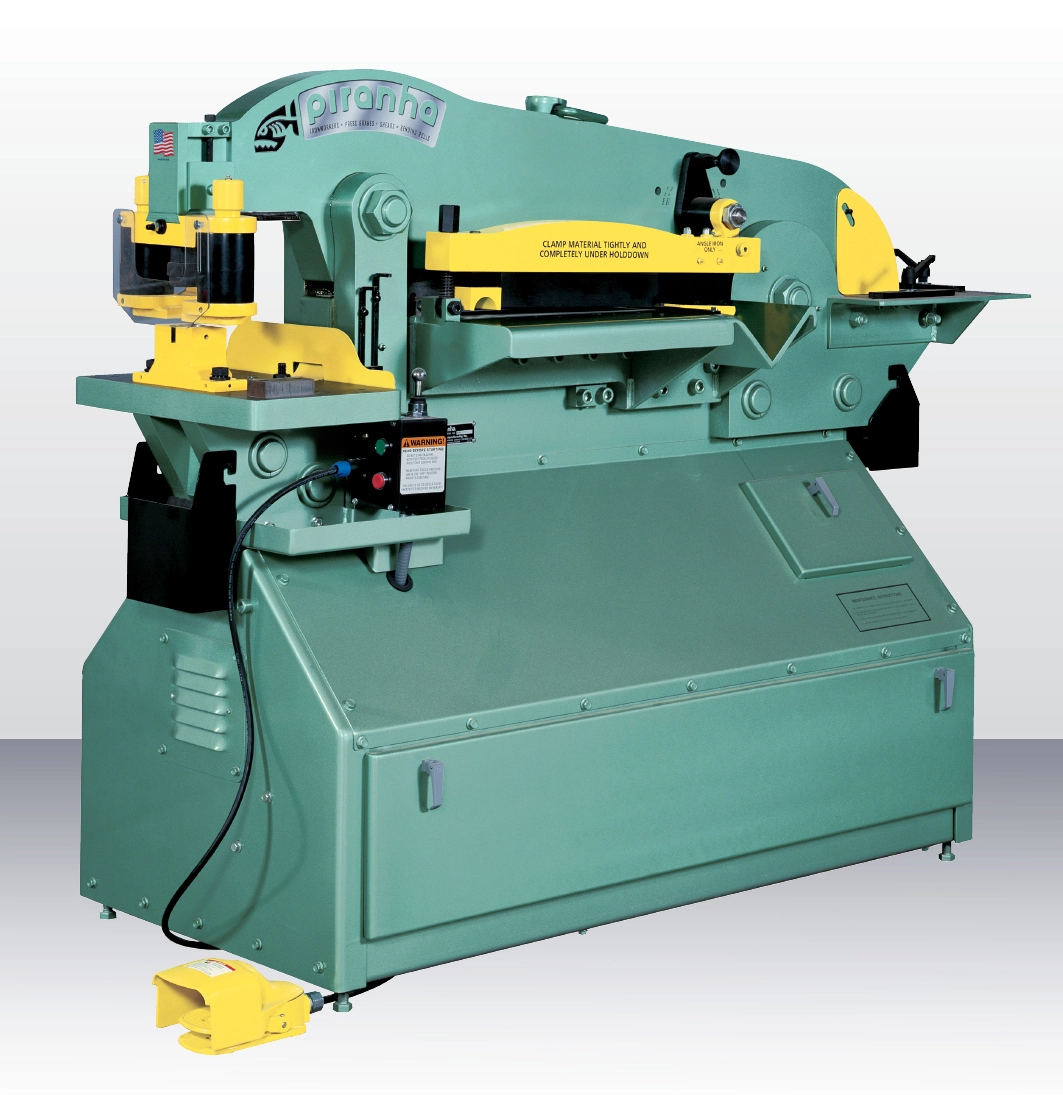

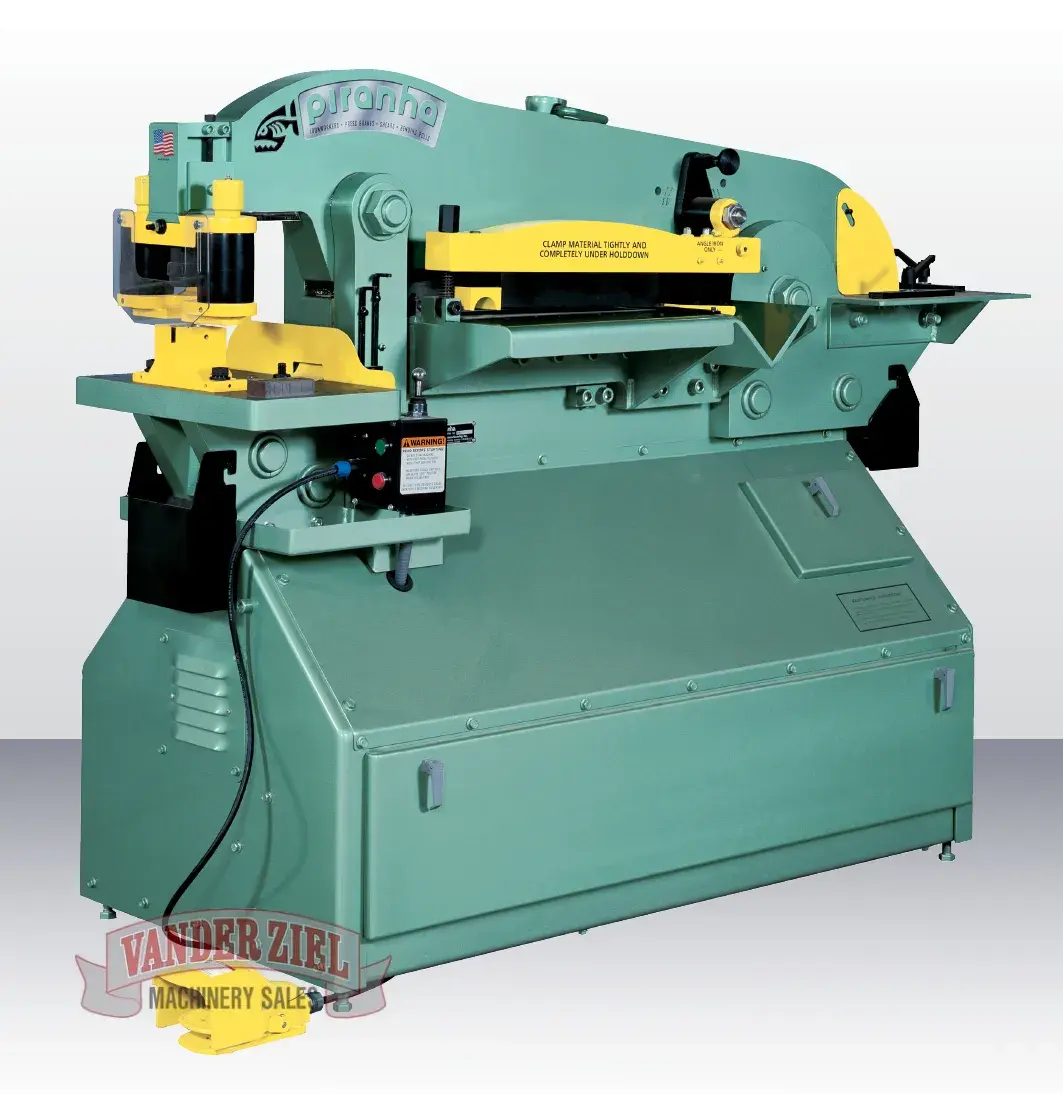

NEW PIRANHA P-90

Piranha 90 Ton Ironworker, Model P-90 – NEW

Specifications:
Throat Depth
8″
Coper-Notcher (Tons)
(Max.)
56
2-3/4″ x 4″ x 1/4″
Open Height
13-1/2″
Bending Attachment
(Optional)
8″, 12″, 14″, 24″
Closed Height
w/o Die Block
9-1/4″
Punch End – Strokes Per Minute
Optional Speed-Up Kit
30 @ 3/4″
45 @ 3/4″
Stroke Length
4-1/4″
Work Station Height
Approx.
42″
Platen Table Size (D-W)
10″ x 17″
Hydraulics
Pump GPM
System R/V PSI
7.5
3000
Punch
Hole Size (Max. Material)
Max. Hole Size (Material)
65 Tons
1-1/16″ (3/4″)
5″ (1/8″)
Fluid Capacity (gal.)
20
Plate Shear
*with fixed hold down
15-1/2″ Long
*1″ x 4″
3/4″ x 10″
5/8″ x 15″
Motor Std. 230/460 3 Ph.
1800 RPM
Opt Phase & Voltage Available
7.5 HP 3 Ph.
Angle Shear
** with special blade
5″ x 5″ x 3/8″
**4″ x 4″ x 1/2″
Dimensions (Net)
W-L-H Approx.
24″ x 66″ x 60″
Bar Shear
Round (min. to max.)
Square (min. to max.)
1/4″ to 1-1/2″
1/2″ to 1″
Weight (Net)
Lbs. Approx.
2600
