NEW SCOTCHMAN 12012-24M

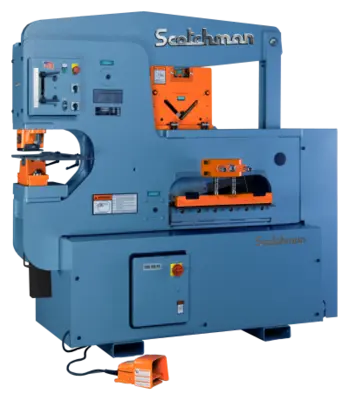

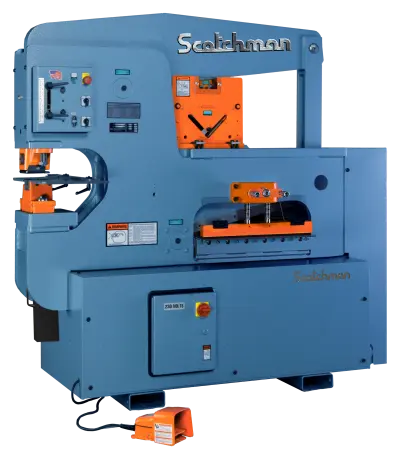

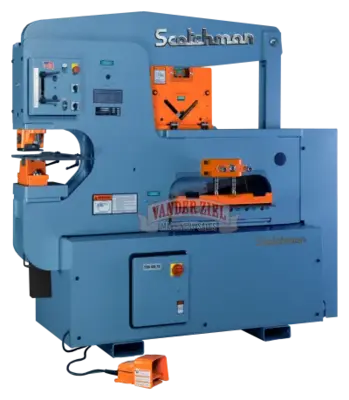

Scotchman 120 Ton Component Tool Ironworker, Model 12012-24M – NEW

Specifications:
Rated on:
65,000 PSI Tensile
Punching Capacity
120 ton
1-1/2″ in 1″
Special Tooling
4″ Max. Dia.
Throat Depth
12″
Flat Bar Shear
24″ Length
1″ x 12″
3/4″ x 20″
1/2″ x 24″
Angle Shear 90°
6″ x 6″ x 1/2″
Angle Shear 45°
(with Bar Shear)
3″ x 3″ x 3/8″
4″ x 4″ x 1/2″
Brake 12″
83 ton
Brake 24″
65 ton
Open End Brake
Max. 1/4″ x 5″
Flat or Angle Iron
Pipe Notcher
Schedule 40 I.D.
3/4″
1″
1-1/4″
1-1/2″
2″
Rectangle Notcher
2″ x 2-1/2″ x 3/8″
90° V. Notcher
6″ x 6″ x 5/16″
Channel Shear
2″ to 6″ Adj.
Strut Shear
Samples Required
Rod Shear
Round Rod (Max.)
Square Rod (Max.)
1/4″ to 1-1/4″, 9 Cav.
1/4″ to 1″, 1 Cav.
Square Tube Shear
1/2″ to 2″
12 ga.
Picket Tool
1/2″
3/4″
1″
16 ga.
Offset Die Holder
Max. 40 ton
Strokes Per Minute in Light Material
1/4″ Stroke [Punch Station]
Strokes Per Minute in Heavy Material
3/4″ Stroke [Punch Station]
Hydraulics
2,600 psi
Motors Standard
5 hp 3 ph
230/460
208/380/575
Motor Optional
5 hp 1 ph
230v
Dimensions
W-28″
L-77″
H-73″
Shipping Weight
5,204 lbs.
