NEW PIRANHA P-140

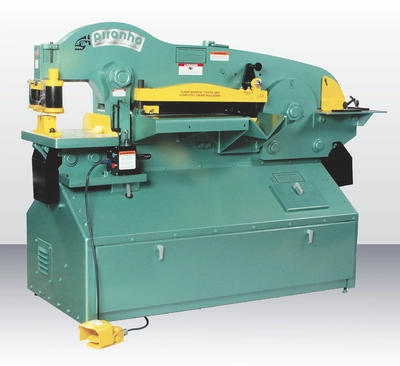

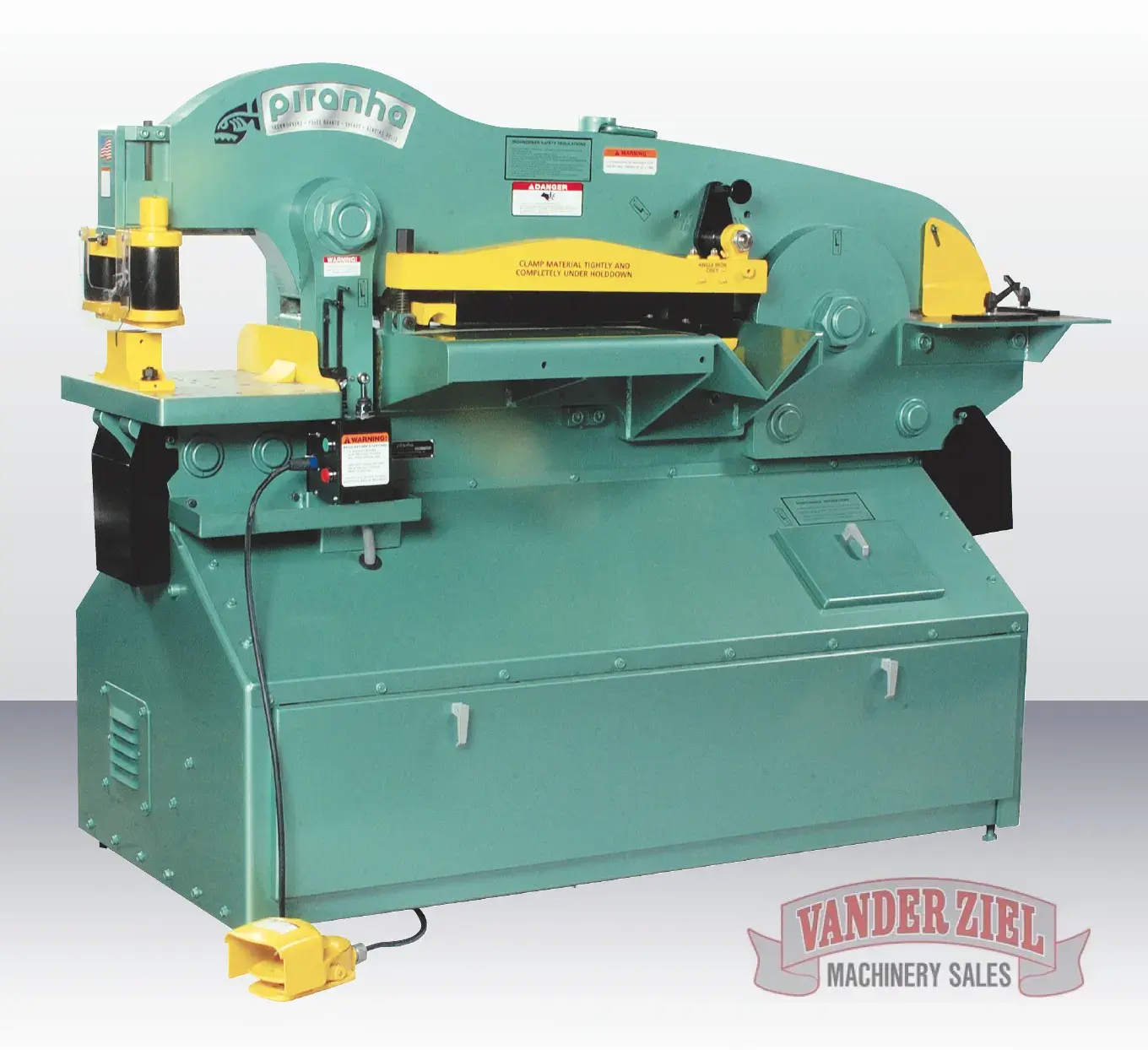

Piranha 140 Ton Ironworker, Model P-140 – NEW

Specifications:
Throat Depth
12″
Coper-Notcher (Tons)
(Max.)
95
4″ x 6″ x 3/8″
Open Height
15-1/2″
Bending Attachment
(Optional)
12″, 24″
Closed Height
w/o Die Block
10-1/4″
Punch End – Strokes Per Minute
Optional Speed-Up Kit
30 @ 3/4″
35 @ 3/4″
Stroke Length
5-1/4″
Work Station Height
Approx.
44″
Platen Table Size (D-W)
14-1/2″ x 21″
Hydraulics
Pump GPM
System R/V PSI
15
3500
Punch
Hole Size (Max. Material)
Max. Hole Size (Material)
140 Tons
1-3/4″ (1″)
5″ (5/16″)
Fluid Capacity (gal.)
25
Plate Shear
20-1/2″ Long
1″ x 14″
3/4″ x 18″
1/2″ x 20″
Motor Std. 230/460 3 Ph.
1800 RPM
Opt Phase & Voltage Available
15 HP 3 Ph.
Angle Shear
6″ x 6″ x 5/8″
Dimensions (Net)
W-L-H Approx.
35″ x 90″ x 68-1/2″
Bar Shear
Round (min. to max.)
Square (min. to max.)
1/2″ to 2″
1/2″ to 1-3/8″
Weight (Net)
Lbs. Approx.
6200
