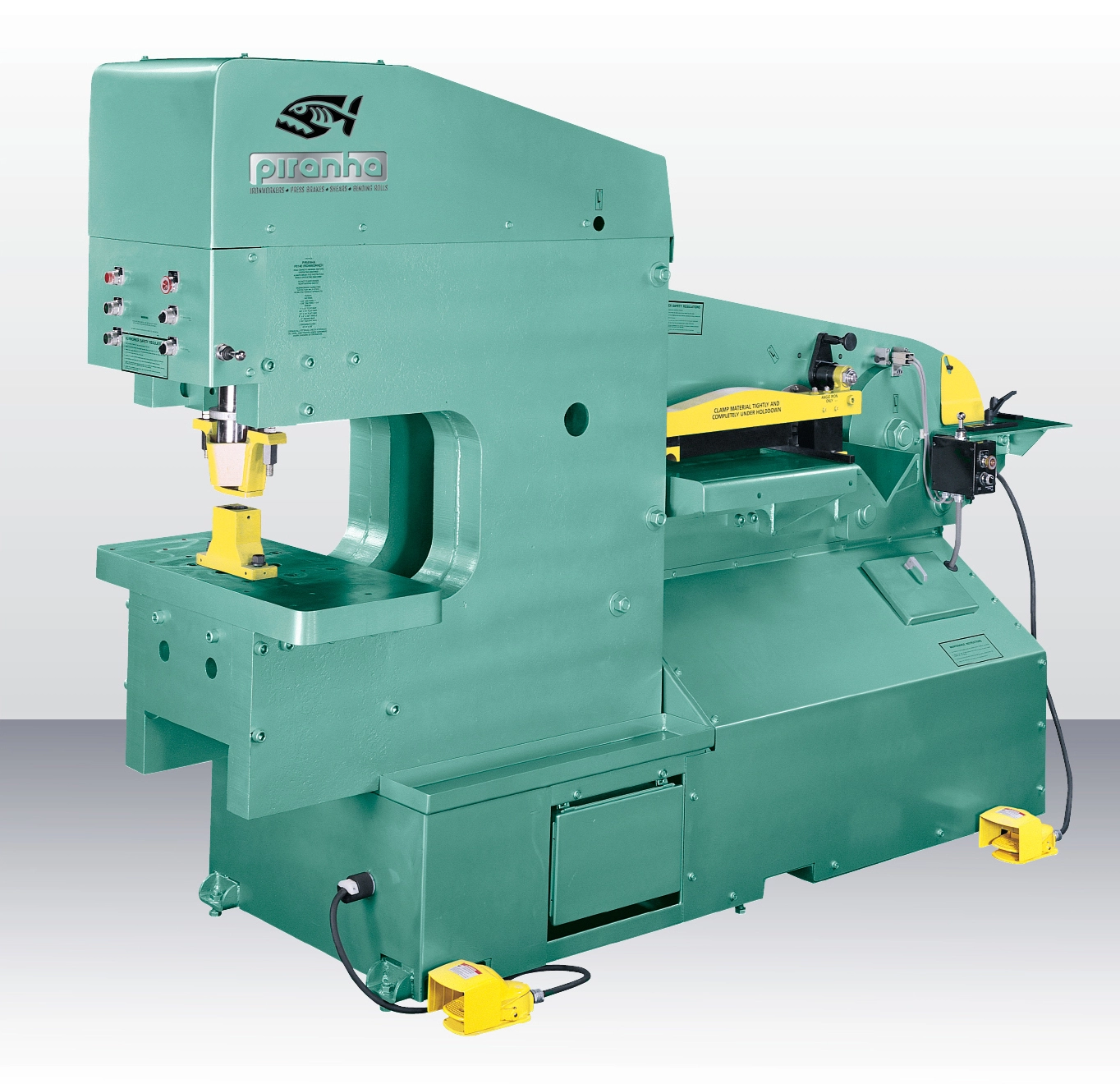

NEW PIRANHA PII-140

Piranha 140 Ton Dual Operator Ironworker, Model PII-140- NEW

Specifications:
Throat Depth
9″
Coper-Notcher (Tons)
(Max.)
56
2-3/4″ x 4″ x 1/4″
Open Height
14″
Bending Attach. (Optional)
24″, 36″, 48″
Closed Height
w/o Die Block
7-3/4″
Punch End
Strokes Per Minute
19 @ 1″
Stroke Length
7″
Work Station Height
Approx.
41″
Platen Table Size (D-W)
11″ x 38″
Hydraulics
Pump GPM
System R/V PSI
7.5
3500
Punch
Hole Size (Max. Material)
Max. Hole Size (Material)
88 Tons
1-1/16″ (1″)
5″ (3/16″)
Fluid Capacity (gal.)
20
Plate Shear
24″ Long
3/4″ x 8″
5/8″ x 12″
1/4″ x 24″
Motor Std. 230/460 3 Ph.
1800 RPM
Opt Phase & Voltage Available
10 HP 3 Ph.
Angle Shear
5″ x 5″ x 3/8
**4″ x 4″ x 1/2″
Dimensions (Net)
W-L-H Approx.
38″ x 90″ x 72″
Bar Shear
Round (min. to max.)
Square (min. to max.)
1/4″ to 1-1/2″
1/2″ to 1″
Weight (Net)
Lbs. Approx.
4700
