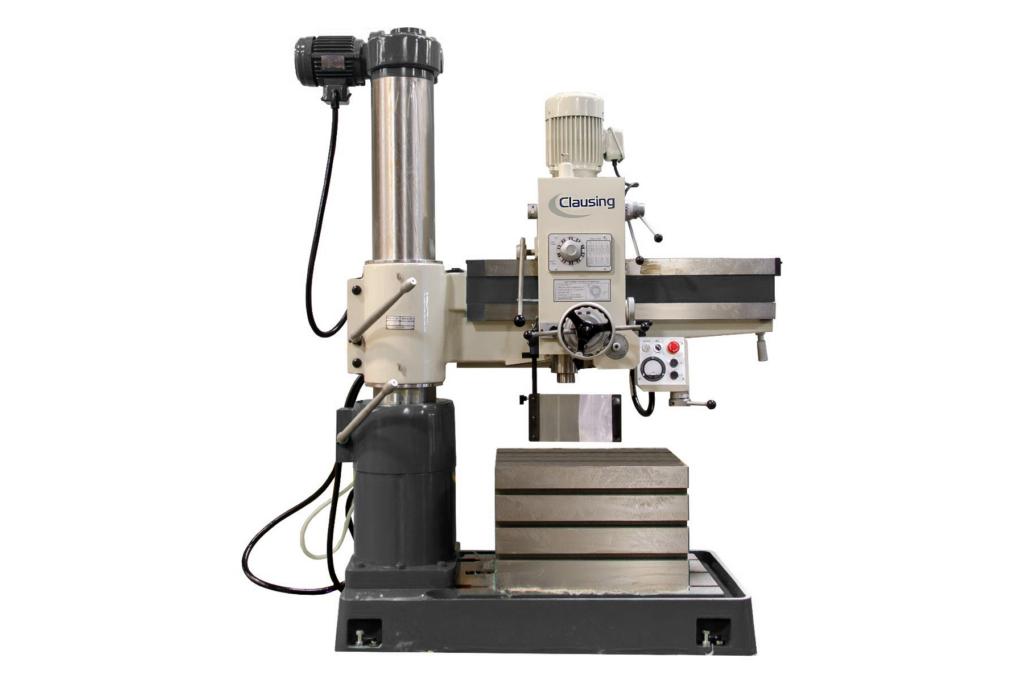

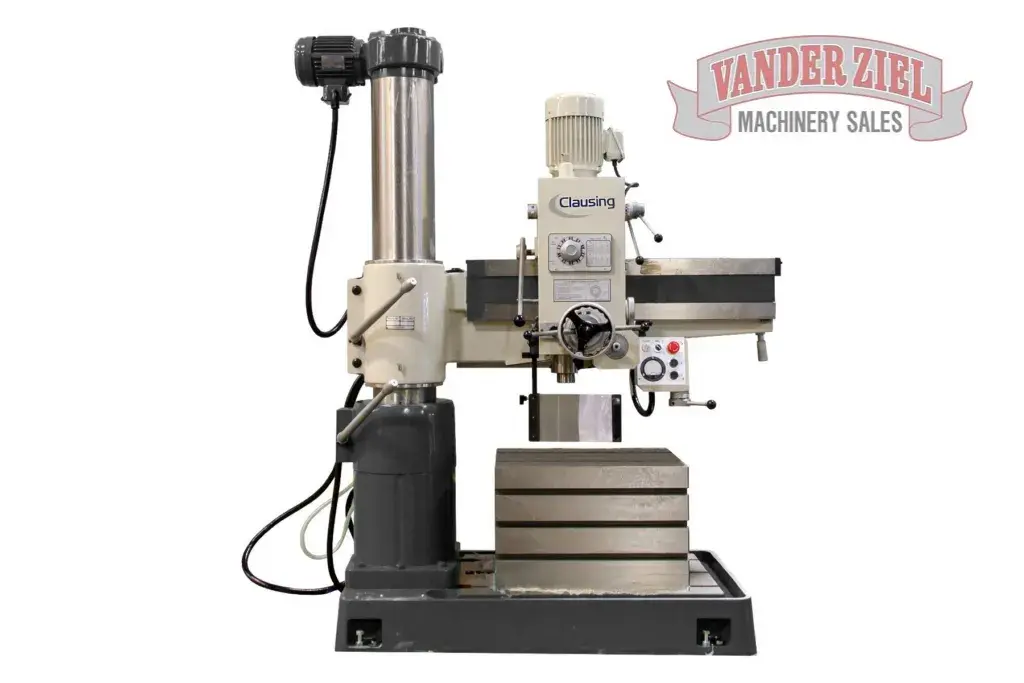

Clausing 8″ x 37.4″ Radial Drill, Model CL920A – NEW
Standard Features…
Limit switch
High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
Powerful 2 Hp spindle drive motor for heavy-duty cutting
Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, .0394″ to 7.874″
Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
Coolant system
Low volt and overload protection
CSA Electrics Standard
Tool kit and manuals
Working Area
Drill Head
Column Sleeve Dia. (E)
8.28″ (210mm)
Spindle Taper
4MT
Column Face to Spindle Center
Spindle Stroke
8.66″ (220mm)
Maximum (D+C)
37.4″ (950mm)
Quill Diameter
2.95″ (75mm)
Minimum (D)
8.7″ (220mm)
Number of Spindle Speeds
6
Spindle Head Travel (C)
28.7″ (730mm)
Spindle Speeds (rpm)
88, 154, 282, 455, 796, 1500
Base Surface to Spindle End
Number of Feeds
3
Maximum (A)
47.6″ (1210mm)
Spindle Feed Rate (in/rev.)
0.002″/0.0035″/0.006″
Minimum (B)
13.8″ (350mm)
(mm/rev.)
.05mm/.09mm/.15mm)
Arm Vertical Travel (A-B)
25.2″ (640mm)
Spindle Drive Motor
2 hp (1.5 Kw)
Arm Rotation (Right & Left)
180°
Elevating Motor
1 hp (.75 Kw)
Baseplate Working Surface
35.5″ x 25.3″ (902x643mm)
Coolant Pump Motor
1/8 hp (.10 Kw)
Box Table Area
Length (L)
23.6″ (600mm)
Capacities
Width (K)
17.5″ (445mm)
Drilling In Steel
1.26″ (32mm)
Height (H)
15″ (380mm)
Drilling In Cast Iron
2″ (50mm)
Base Dimensions
Tapping In Steel
1″ (25mm)
Floor Area (R x S)
49.6″ x 25.2″ (1260x640mm)
Tapping In Cast Iron
1.26″ (32mm)
Height (Q)
6.5″ (160mm)
Boring In Steel
2.75″ (70mm)
Boring In Cast Iron
4.06″ (105mm)
Dimensions/Weights
Max. Machine Height (F)
91.3″ (2320mm)
Base and Column Height (G)
79.1″ (2010mm)
Shipping Dimensions
(L x W x H)
71.1″ (1806mm) x
32.5″ (826mm) x 86.2″ (2190mm)
Net Weight
2,756 lbs. (1250kg)
Shipping Weight
3,086 lbs. (1400kg)
