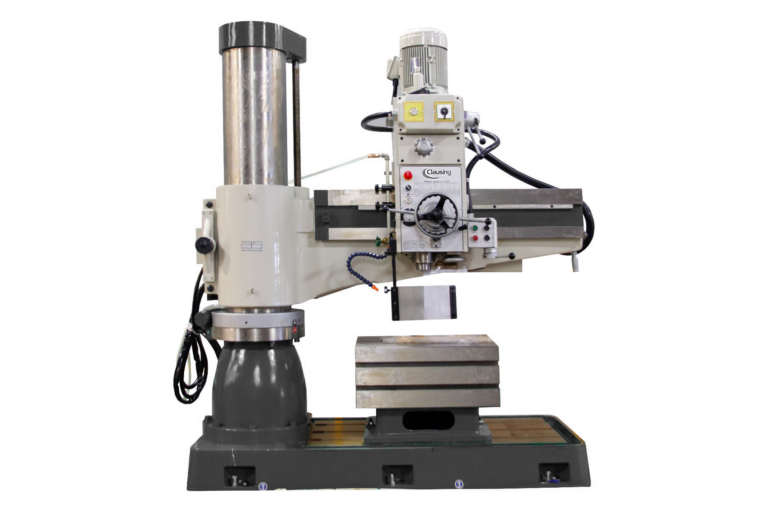

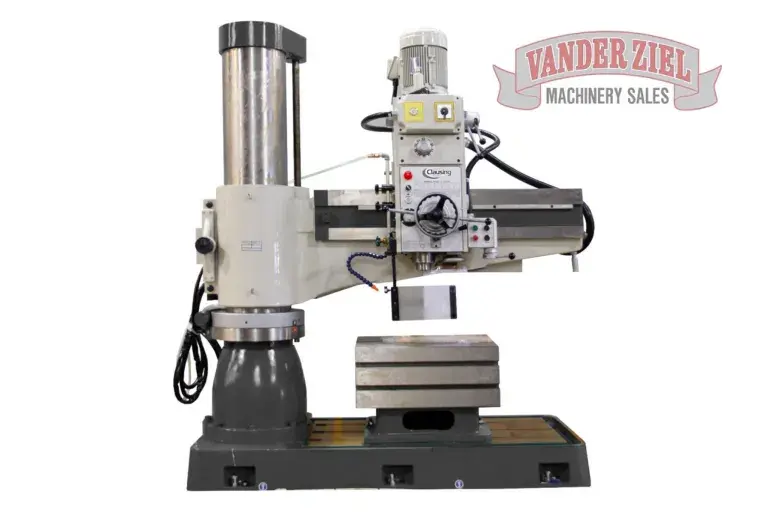

Clausing 12.5″ x 63″ Radial Drill, Model CLC1600H – NEW
Standard Features…
Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting
Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear
Powerful 5 Hp, 2-speed, heavy-duty spindle drive motor
Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation
Special automatic tool eject device is supplied to allow you to change tools quickly. (No drifter is required) Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage
Coolant system
CSA Electrics Standard
Tool kit and manuals
Working Area
Drill Head
Column Sleeve Dia. (E)
12.61″ (320mm)
Spindle Taper
5MT
Column Face to Spindle Center
Spindle Stroke
10.63″ (270mm)
Maximum (D+C)
63.00″ (1600mm)
Quill Diameter
3.15″ (80mm)
Minimum (D)
13.78″ (350mm)
Number of Spindle Speeds
12
Spindle Head Travel (C)
49.21″ (1250mm)
Spindle Speeds (rpm)
56-1450
Base Surface to Spindle End
Number of Steps
3
Maximum (A)
55.90″ (1420mm)
Spindle Feed Rate (in(mm)/rev.)
0.0023″(.06mm), 0.004″(.10mm), 0.008″(.20mm)
Minimum (B)
18.31″ (465mm)
Spindle Drive Motor (2-speed)
5 hp (3.8 Kw)
Arm Vertical Travel (A-B)
26.77″ (680mm)
Elevating Motor
1 hp (.75 Kw)
Arm Rotation (Right & Left)
180°
Coolant Pump Motor
1/8 hp (.10 Kw)
Baseplate Working Surface
70.9″ x 40.4″(1800 x 1026mm)
Box Table Area
Capacities
Length (L)
24.8″ (630mm)
Drilling In Steel
1.97″ (50mm)
Width (K)
19.7″ (500mm)
Drilling In Cast Iron
2.36″ (60mm)
Height (H)
19.7″ (500mm)
Tapping In Steel
1.57″ (40mm)
Base Dimensions
Tapping In Cast Iron
1.97″ (50mm)
Floor Area (R x S)
100.4″ x 38.2″(2550 x 970mm)
Boring In Steel
4.33″ (110mm)
Height (Q)
7.9″ (200mm)
Boring In Cast Iron
6.55″ (165mm)
Dimensions/Weights
Max. Machine Height (F)
108.7″ (2760mm)
Base and Column Height (G)
86.1″ (2186mm)
Shipping Dimensions
(L x W x H)
105.2″ (2670mm) x
44.1″ (1120mm) x 94.9″ (2410mm)
Net Weight
7,275 lbs. (3300kg)
Shipping Weight
8,378 lbs. (2800kg)
