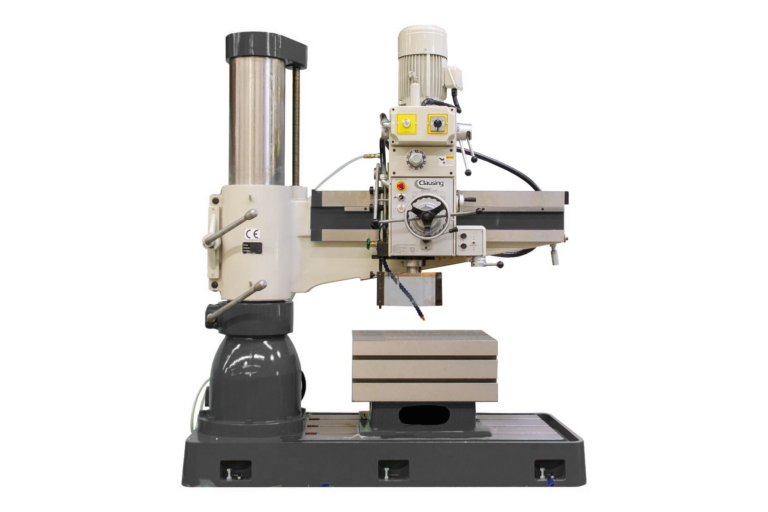

Clausing 12″ x 46″ Radial Drill, Model CL1230H – NEW
Standard Features…
High-quality cast-iron arm with heat-treated and ground slides for smooth and accurate head positioning
The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation
High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
Overload protection device
The main spindle is balanced by an adjustable block
Coolant system
Low volt and overload protection
Equipped withhydraulic clamping. With a push of a button you can have arm unclamped then move vertically, or stop then clamp automatically
CSA Electrics Standard
Tool kit and manuals
Working Area
Drill Head
Column Sleeve Dia. (E)
11.81″ (300mm)
Spindle Taper
4MT
Column Face to Spindle Center
Spindle Stroke
9.84″ (250mm)
Maximum (D+C)
46.1″ (1170mm)
Quill Diameter
3.15″ (80mm)
Minimum (D)
13.4″ (340mm)
Number of Spindle Speeds
2
Spindle Head Travel (C)
35.0″ (890mm)
Spindle Speeds (rpm)
44-1500
Base Surface to Spindle End
Number of Feeds
3
Maximum (A)
53.9″ (1370mm)
Spindle Feed Rate (in(mm)/rev.)
0.002″(.05mm), 0.0035″(.09mm), 0.006″(.15mm)
Minimum (B)
19.3″ (490mm)
Spindle Drive Motor (2-speed)
3 hp (2.25 Kw)
Arm Vertical Travel (A-B)
24.8″ (630mm)
Elevating Motor
1 hp (.75 Kw)
Arm Rotation (Right & Left)
180°
Clamping Motor
1 hp (.75 Kw)
Coolant Pump Motor
1/8 hp (.10 Kw)
Baseplate Working Surface
48″ x 29.1″(1219 x 739mm)
Box Table Area
Capacities
Length (L)
25.0″ (635mm)
Drilling In Steel
1.65″ (42mm)
Width (K)
24.5″ (520mm)
Drilling In Cast Iron
2.16″ (55mm)
Height (H)
16.3″ (415mm)
Tapping In Steel
1″ (25mm)
Base Dimensions
Tapping In Cast Iron
1.38″ (38mm)
Floor Area (R x S)
67.9″ x 28.1″(1725 x 715mm)
Boring In Steel
3.38″ (86mm)
Height (Q)
7.1″ (180mm)
Boring In Cast Iron
4.72″ (120mm)
Dimensions/Weights
Max. Machine Height (F)
109.5″ (2780mm)
Base and Column Height (G)
81.1″ (2060mm)
Shipping Dimensions
(L x W x H)
80.1″ (2035mm) x
32.5″ (862mm) x 88.2″ (2240mm)
Net Weight
4,630 lbs. (2100kg)
Shipping Weight
5,071 lbs. (2300kg)
