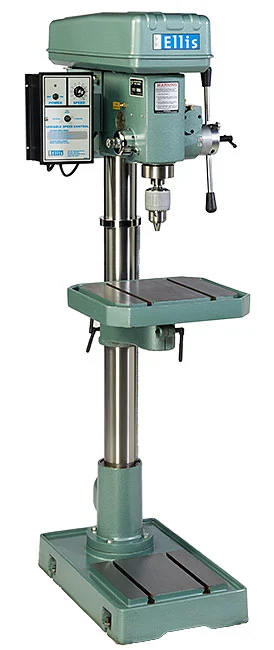

NEW ELLIS 9400

Ellis 18 1/2″ Variable Speed Drill Press – NEW

Specifications:
Motor
2HP A.C. Single Phase
Choose 110V or 220V
Control box
Infinitely variable speed by turning the dial
Electronic reversing
Full torque at low speeds
All solid state circuitry
Continuous speed adjustment while in operation
Standard
Power down feed
Spindle speeds
0 – 1200 RPM
Drills to center
18-1/8″
Drilling capacity
Steel 1-1/16″
Cast iron 1-1/4″
Tapping capacity
3/4″
Morse taper
No. 3
Quill diameter
3″
Column diameter
4″
Spindle travel
5-3/8″
Spindle to table (max.)
27-1/4″
Spindle to base
46-1/4″
Shipping weight
675 lbs
Table
Production type:
T- slotted 15-7/8″ X 17-7/8″
2 Slots for 1/2″ t-bolts
Ground working surface
Coolant trough
Base
T- slotted
16-3/8″ x 26-5/8″
2 slots for 1/2″ t-bolts
Ground working surface
Size
Height 69-1/2″
Width 20″
Depth 29″
