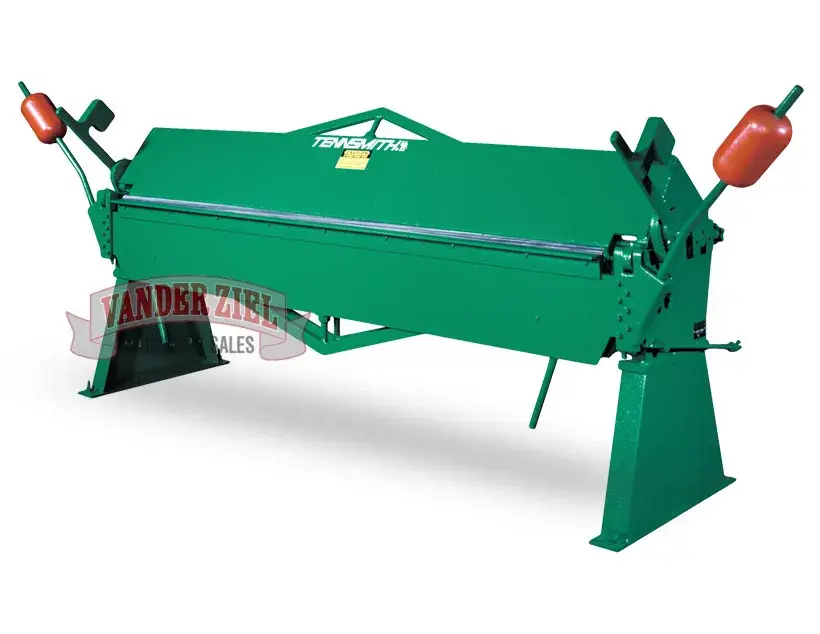

NEW TENNSMITH HB97-16

Tennsmith 8' x 16 GA Straight Hand Brake, Model HB97-16 - NEW
SKU # 3602007

TENNSMITH's heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability.
With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches.
Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.
Other adjustment features include:

Leveling screws and lock nuts on the pedestals

Jack screws and tensioner bolts on the apron

Truss rods on the apron, base and upper beam

Fully adjustable counter balances to facilitate the bending process

Replaceable nose bar and apron inserts

Removable apron angle and insert permit 1/4-inch reverse bends in lighter material.
Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel.
Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes.

Heavy-Duty Hand BrakesHB97-12
Capacity, mild steel12 gauge/2.7 mm
Bending length97 in./2464 mm
Maximum Iift of beam2-1/4 in./57 mm
Front to rear beam adjustment1/2 in./13 mm
Minimum reverse bend1/4 in./6 mm
Minimum flange in capacity material1 in./25 mm
Dimensions, counterweights in place, LxWxH145 x 54 x 63-1/2 in.3683 x 1372 x 1613 mm
Shipping weight2800 Ibs./1273 kg
