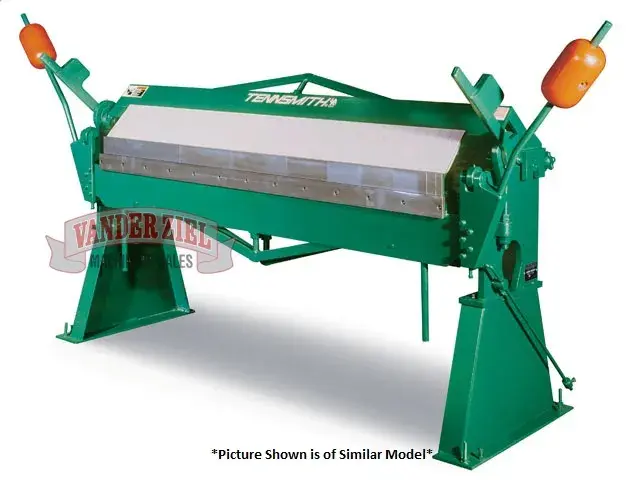

NEW TENNSMITH HBT48-12

Tennsmith 4' x 12 GA Universal Hand Brake, Model HBT48-12 - NEW
SKU # 3602019

Specifications:

TENNSMITH's HBT is designed to provide forming capabilities for complex parts. This machine is truly a universal hand brake, which allows for the removal of both upper and lower segments of fingers. Complex parts, such as HVAC transverse duct forming and down flanged parts, as well as architectural sheet metal and signage applications, can easily be formed using this machine.
The HBT is built with the same high-quality features and standards that TENNSMITH brakes are recognized for throughout the industry.
Other models are available upon request. Please consult TENNSMITH for specific forming questions or applications.

Heavy-Duty Hand BrakesHBT48-12
Capacity, mild steel12 gauge/2.7 mm
Capacity, with bending support angle removed, mild steel16 gauge/1.6 mm
Bending length48 in./1220 mm
Maximum lift of beam1-1/2 in./38.1 mm
Front to rear beam adjustment1/2 in./13 mm
Maximum depth of box4 in./101.6 mm
Minimum reverse bend5/8 in./16 mm
Minimum flange in capacity material1 in./25 mm
Top segment tooling widths2, 3 and 4 in.50.8, 76.2 and 101.6 mm
Lower segment tooling widths1, 1-1/2, 4, 6, 8, 12, 20 in.25, 38, 102, 203, 305, 508 mm
Bending beam tooling segments1, 1-1/2, 6, 8, 12, 20 in.25, 38, 203, 305, 508 mm
Maximum transverse bend (through tooling centers)2 in./50.8 mm
Maximum transverse bend (at either end of machine)3 in./76.2 mm
Dimensions, counterweights in place, LxWxH72 x 36 x 53 in.1829 x 915 x 1346 mm
Shipping weight1750 lbs./795 kg

Available options: Radius fingers.
