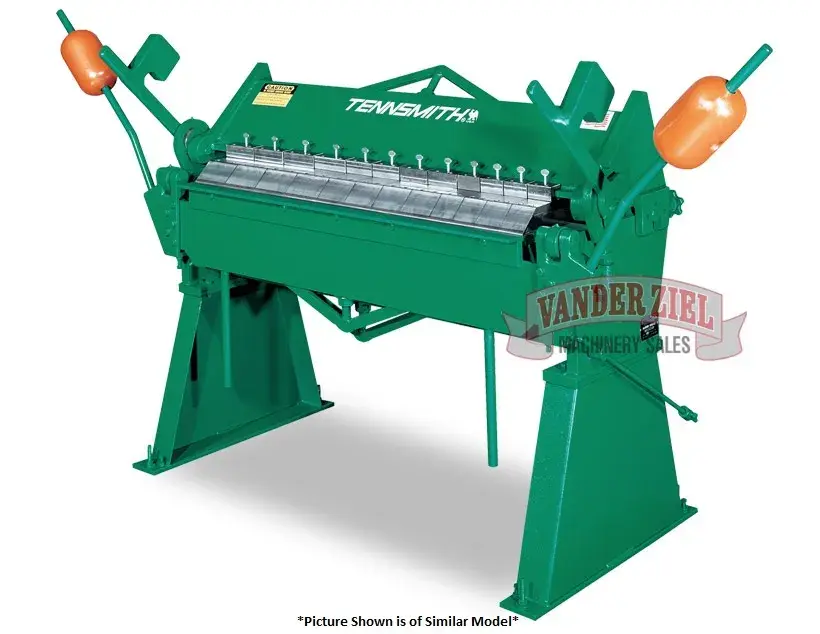

NEW TENNSMITH F6-120-14

Tennsmith 10' x 14 GA Box & Pan Brake, Model F6-120-14 - NEW
SKU # 3602018

Specifications:

TENNSMITH's F6 Series box and pan brakes were designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers. Ample clamping and easy-to-use nose bar adjustments allow for a quick-setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
Other adjustment features include:

Leveling screws and lock nuts on the pedestals

Jack screws and tensioner bolts on the apron

Truss rods on the apron, base and upper beam

Fully adjustable counter balances to facilitate the
bending process

Removable apron angle and insert permit 1/4-inch
reverse bends in lighter material

Box & Pan Hand BrakesF6-120-14
Capacity, mild steel14 gauge/2.0 mm
Capacity, stainless steel18 gauge/1.0 mm
Bending length120 in./3048 mm
Maximum Iift of beam2-1/4 in./57 mm
Front to rear beam adjustment1/2 in./12.7 mm
Maximum depth of box6 in./152.4 mm
Minimum reverse bend1/4 in./6 mm
Minimum flange in capacity material1 in./25 mm
Finger widths3, 4 and 5 in.76.3, 101.6 and 127 mm
Dimensions, counterweights in place, LxWxH161 x 53 x 60 in.4090 x 1347 x 1524 mm
Shipping weight3675 Ibs./1670 kg

Available options: Radius fingers; extension fingers (right and left extension fingers form inside corners with a return flange across the top on boxes, cabinets, etc.); open end fingers (provide triangular, square and rectangular tube forming abilities). Ask dealer for more details.
