NEW AKYAPAK AHS 20/08
Overview
Description

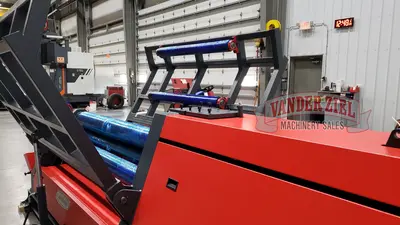

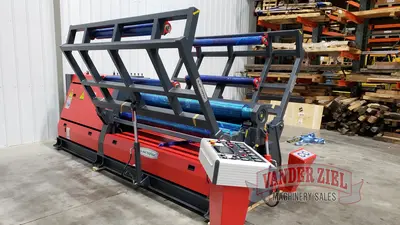

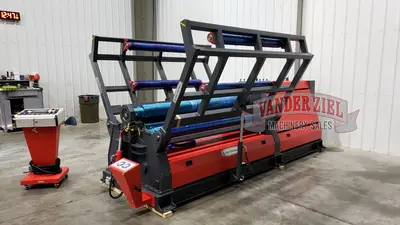

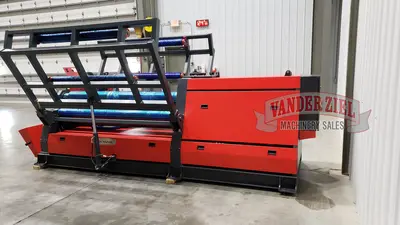

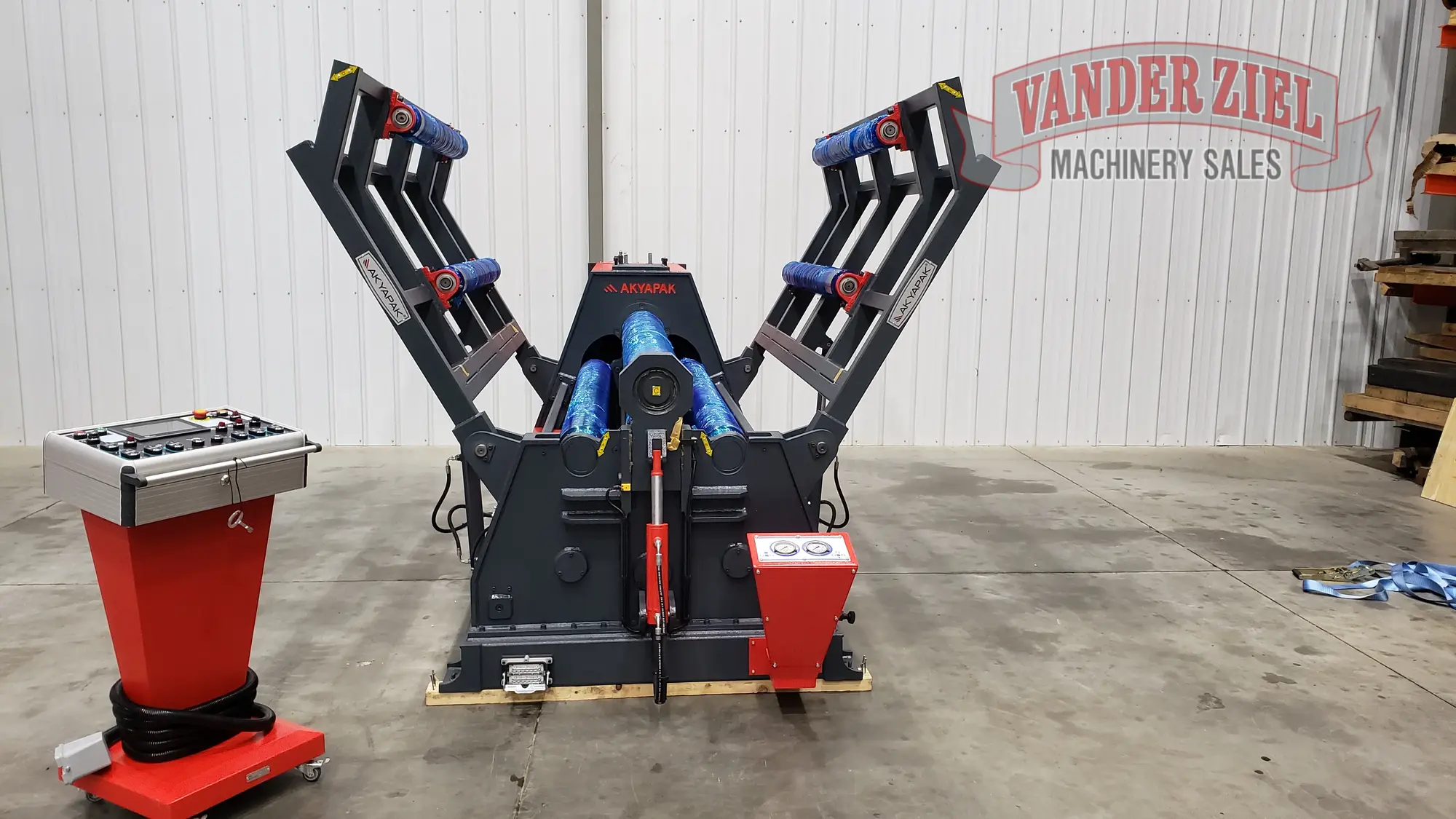

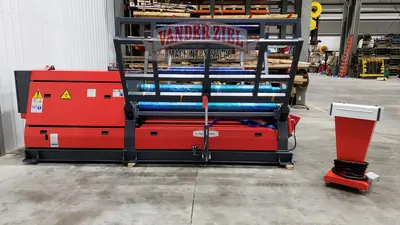

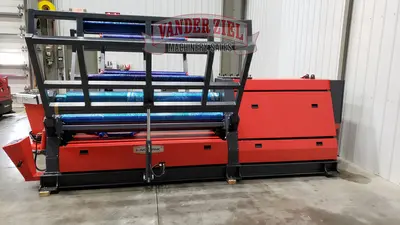

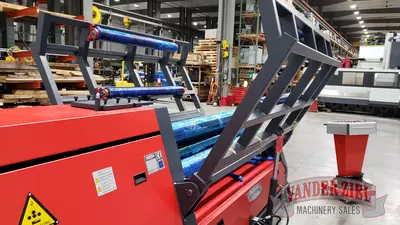

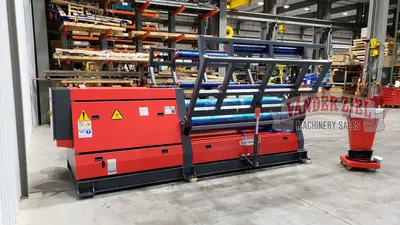

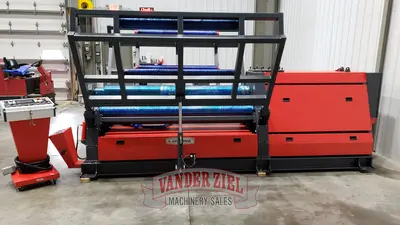

Akyapak 6' x 3/8" Four Roll Hydraulic Plate Roll, Model AHS 20/08 - NEW
Asset #15912N
Serial #SY210-284
480 Volt
EQUIPPED WITH
AHS 20/08 Four-Roll Hydraulic Plate Rolling Machine,
Induction Hardened Rolls
Torsion Bar
Digital Display
Cone Bending Device
Two Speed Control
All rolls are made of special steel.
Machine body is steel construction. ( ST 52 )
All rollers mounted in bearing.
Separate control panel
Drop-end controlled from control panel in order to release easily bended metal sheet
Movement and parallelism adjustment of the rollers controlled from the control panel. (Ergonomic designed control panel which allows to control all the functions of the machine is independent from the machine.)
Central rolls are driven with hydraulic motor and reducer.
Electrical and hydraulic protection against overloads.
Hydraulic installation from world-wide known companies
Electrical installation from world-wide known companies
Suitable for "CE".
TECHNICAL SPECIFICATIONS - AHS 20/08
Working length Ft. 6'
Maximum thickness In
Pre-bending - 5/16"
Bending - 3/8"
Yield Point: 36,000 PSI
Number of rolls 4
Motor Power Hp 10
Min. diameter in - Ø TRD x 3
Top roll in - Ø 8.3"
Pinch roll (Bottom) in - Ø 7.5"
Side roll in - Ø 6.7"
Length In 13.6'
Height In 4.3'
Width In 4.6'
Weight Ibs 9,700
Included Accessories:
460 Volt
Side Supports
Top Support Ready
OPTIONAL FEATURES
Variable speed of rotation
Material feeding table
Oil Cooler System
Central Support
Side Supports
AK400 CNC Control CS3
