USED ALORIS CXA 1

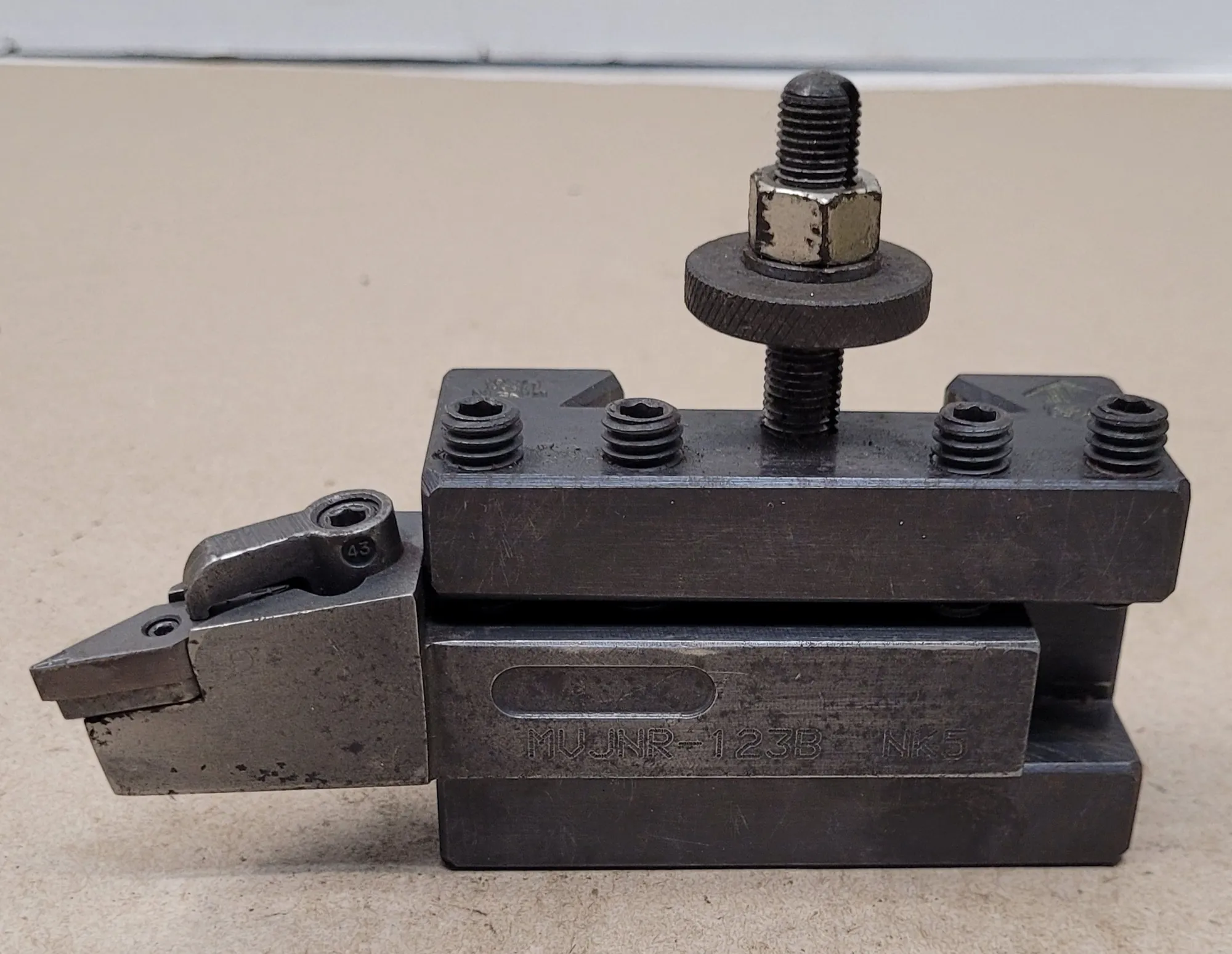

Aloris CXA 1 Lathe Tool Post Holder w/ Kennametal MVJNR-123B

USED
Brand: Aloris
Part Number: CXA 1
Tool Holder
Wedge: 2-1/4”
Lathe Swing (Inch) 13 to 18
Through Coolant No
Overall Height (Inch) 2-1/8
Overall Length (Inch) 3-1/2
Maximum Cutting Tool Size (Inch) 3/4
Centerline Height (Inch) 1-7/16
Tool Bit Range (Inch) 1/4 to 3/4

Comes with Kennametal MVJNR-123B
[H] Shank Height 19.05 mm
[B] Shank Width 19.05 mm
[F] F Dimension 25.4 mm
[L1] Tool Length 114.3 mm
[LH] Head Length 42.2 mm
Gage Insert VN..332
Lock Pin ID Drive Size 5/64
Clamp Screw ID Drive Size 5/32
