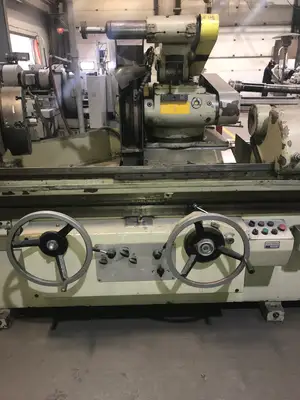

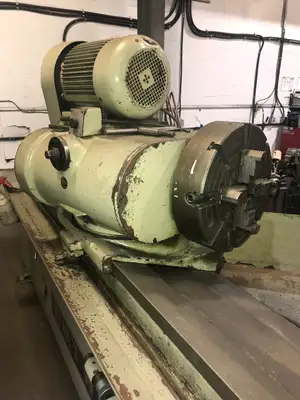

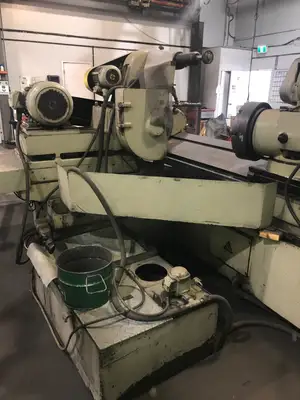

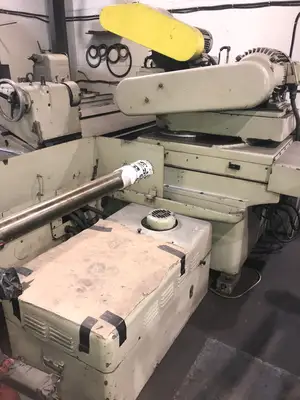

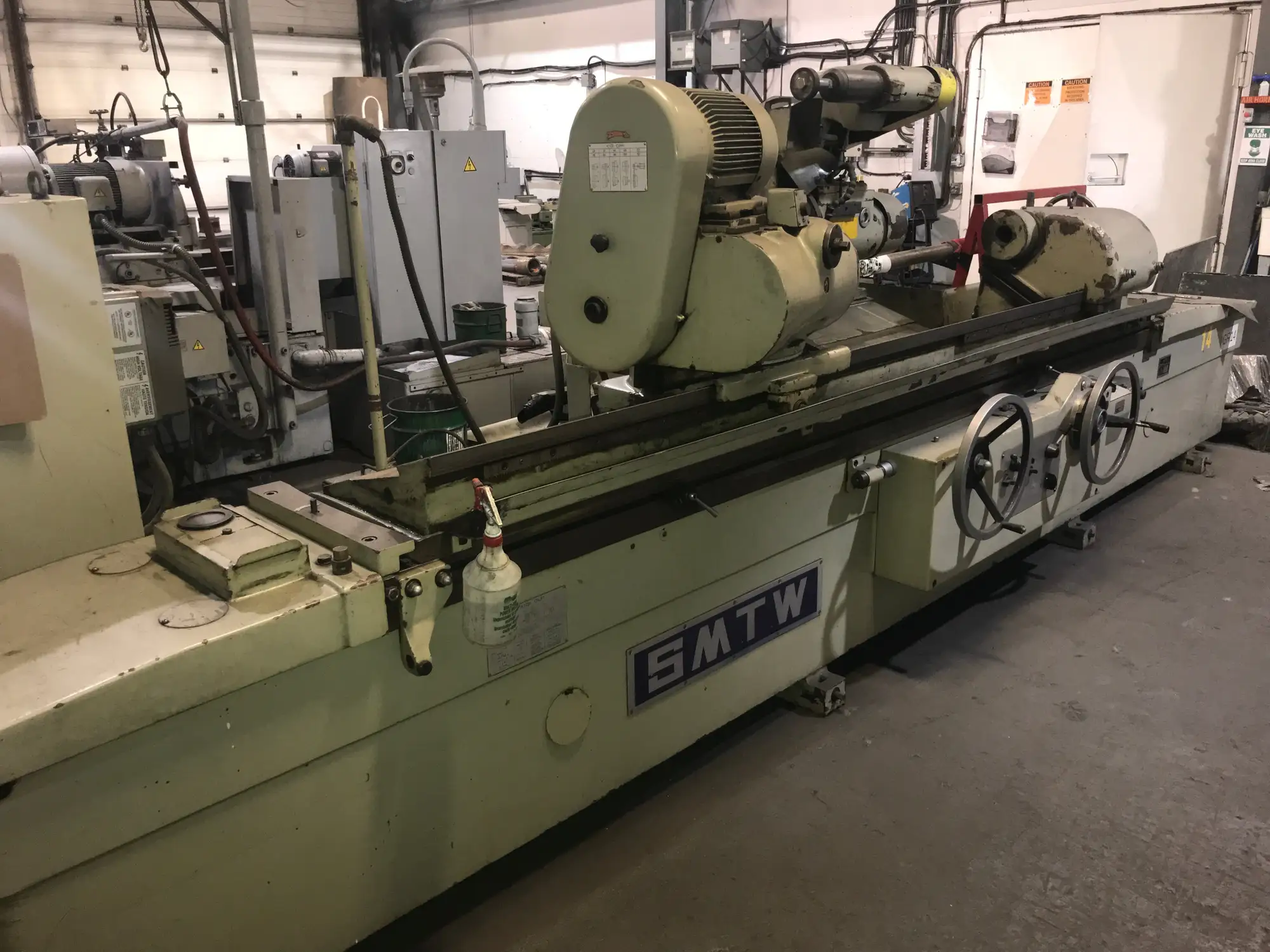

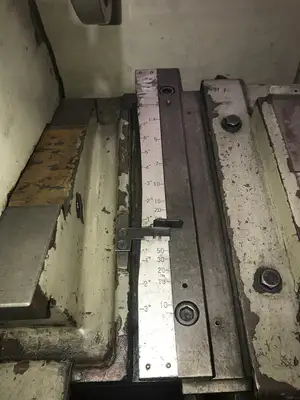

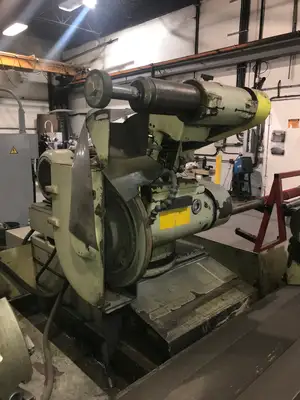

SMTW M1450A Cylindrical Grinder Specifications
Model
M1450A
Work Size Capacity
20" x 80"
Swing Over Table
20"
Distance Between Centers
80"
Max Weight Between Centers
Approx. 2,500 lbs
Grinding Wheel Diameter
24"
Grinding Wheel Speeds
1,223 and 1,462 RPM
Workhead Power
3 HP
Main Spindle Motor
7.5 HP
Workhead Speed
96 RPM
Table Speed (Variable)
3 – 130 IPM
Headstock Swivel (CCW)
90°
Headstock Swivel (CW)
75°
Table Swivel
12°
Voltage
220V / 3 Phase
Approx. Machine Dimensions
240" L x 102" W x 90" H
Approx. Machine Weight
25,000 lbs
