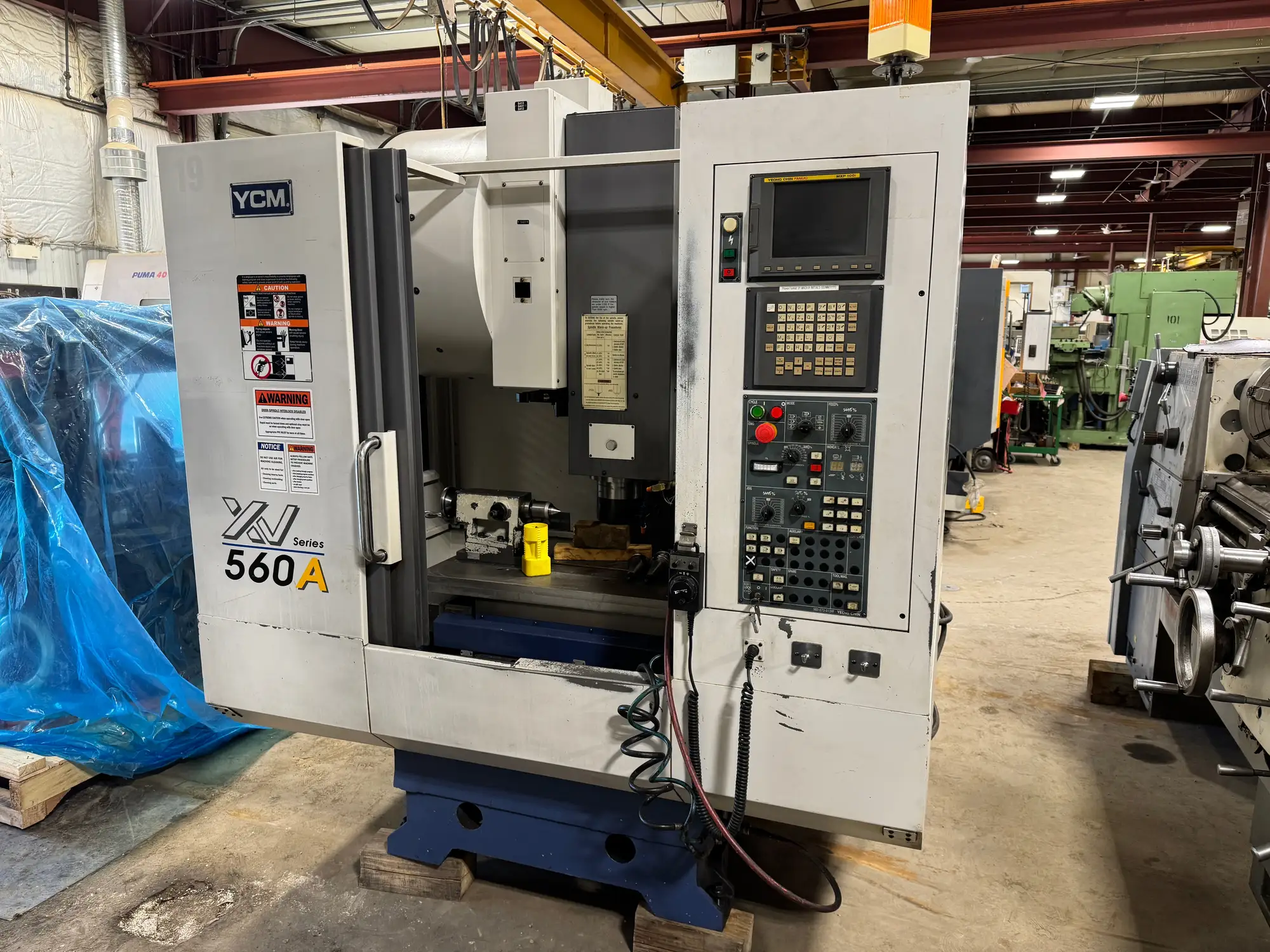

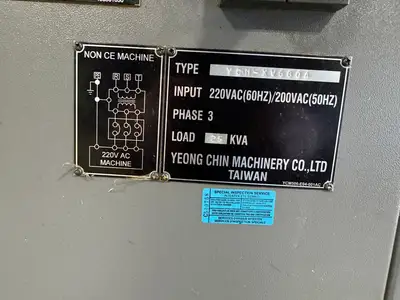

The YCM FV560A is a high-precision CNC vertical milling machine equipped with a CAT40 spindle and 3-axis travel. With spindle speeds up to 8000 rpm and both FANUC and Mitsubishi motor options, it’s ideal for metalworking, tooling, and precision production in Canada. Now available from Stan Canada.
SPINDLE
Spindle Motor:
• FANUC: α6 5.5/7.5/11kW (10min) SPM-15
• MITSUBISHI: SJ-PF7.5-01 5.5/7.5kW (30min)
Spindle Taper: (CAT40)
Spindle Speed: 45–8000 rpm
TRAVEL
X-Axis Travel (Table Longitudinal): 560 mm
Y-Axis Travel (Saddle Cross): 410 mm
Z-Axis Travel (Spindle Vertical): 450 mm
Spindle Nose to Table Surface: 110–560 mm
Distance Z from Spindle Center to Cover Surface: 444 mm

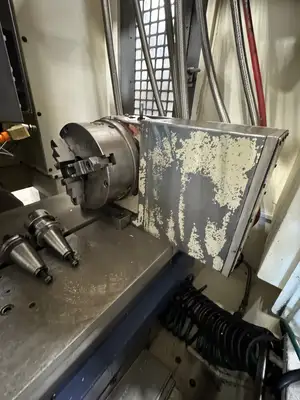

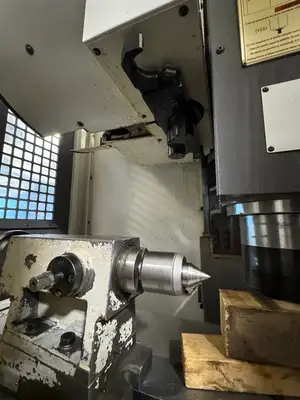

4th Axis with 3-jaw Chuck
TABLE
Table Size (L × W): 700 × 420 mm
T-Slots (W × No. × Distance): 14 × 3 × 100 mm
Max Loading Capacity: 300 kg
AXIAL
Rapid Feed (X, Y): 36 m/min
Rapid Feed (Z): 24 m/min
Cutting Feed: 1–10000 mm/min
Rated Thrust Force (X, Y): 285 kgf
Rated Thrust Force (Z): 575 kgf
Max Thrust Force (X, Y): 1320 kgf
Max Thrust Force (Z): 1805 kgf
A.T.C. (Automatic Tool Changer)
Number of Tools: 20
Max Tool Weight: 6 kg/pc
Max Tool Dimension: Ø90 × 250 mm
OTHERS
Voltage: 220V
Coolant Pump: 590 W
Lubrication Pump: 4 W
Machine Dimensions (L × W × H, with Chip Conveyor): 2500 × 1965 × 2450 mm
Coolant Tank Capacity: 180 L
Machine Weight: 3000 kg

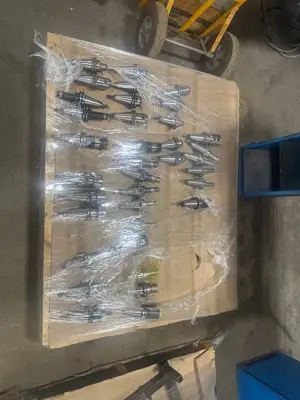

Additional accessories (Tool Holders)
Description
Qty
Adjusted Unit Price
CAT40 - 5/8 - 3.00
1
$120
CAT40 - 3/4 - 3.00
2
$120
CAT40 - 3/8 - 3.50
1
$115
CAT40 - 1.00 - 4.00
2
$125
CAT40 - 3/8 - 2.50
1
$110
CAT40 - KPU-13
1
$115
CAT40 - ER20 - 4.00 (small)
1
$135
CAT40 - ER20 - 4.00 (standard)
2
$135
CAT40 - ER11 - 4.00
1
$115
CAT40 - MD 1/2 - 2.50
2
$130
CAT40 - CV40BKM (Kennametal)
1
$140
CAT40 - Small hole ~9.5 mm
1
$115
CAT40 - LYNDEX C4006-0312
1
$130
CAT40 - #1 - 2.93
1
$115
CAT40 - ER16 - 3.50
1
$120
CAT40 - Erickson CV40ZEM125200
1
$140
CAT40 - 1/2 - 2.50
1
$115
BT40 - Ø2.238 adapter
1
$125
BT40 - Ø1.586 adapter
1
$120
