Standard Equipment
• Heidenhain i TNC 530 HSCI
• FANUC 31i-B digital controls
• Scales in three axis
• Digital motors and drives
• ZF Gearbox (1:4 ratio)
• Linear guideways
• Thermal compensation
• CE standard safety feature
• Ballscrews with double preloaded nut in all three axes
• Variable coolant pump (up to 15 bar)
• Automatic lubrication system

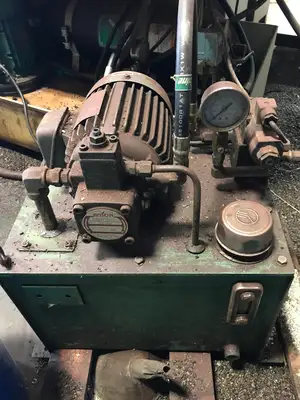

• Hydraulic compensation of vertical movement with motor brake
• Pre-installation for 4th axis (without drive)
• Automatic milling head 1º x 2’5º
• (*) RPM: 4000 standard / 5000 optional
• Ram oil cooler
• Portable electronic handwheel
• Rigid tapping
• Internal coolant through spindle
• External coolant
• Chip conveyor
• Automatic tool changers
• Coolant filter

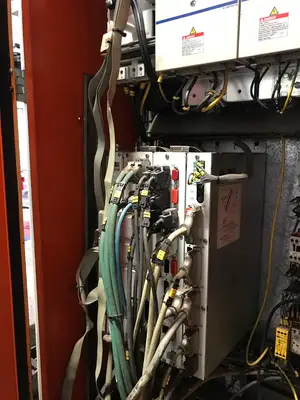

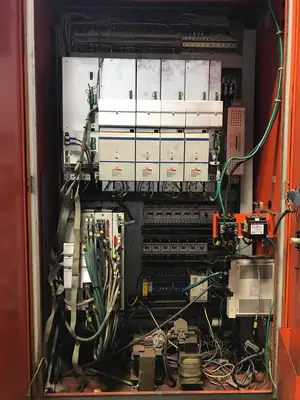

• Electrical cabinet cooling unit
• Automatic head oil air lubrication system
• Integrated carenage and posterior closing of machine. CE standard safety feature
• Integrated led lightning
• Led signal light with buzzer
• Visiport unit
Special Features

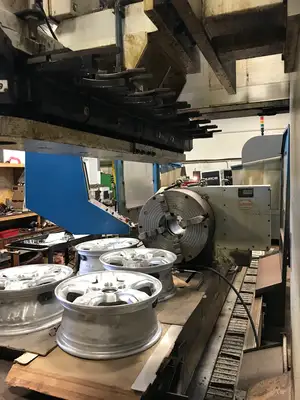

Rotary Table 4th Axis
Universal milling head swiveling
Electrical handwheel
Coolant system
Technical Details

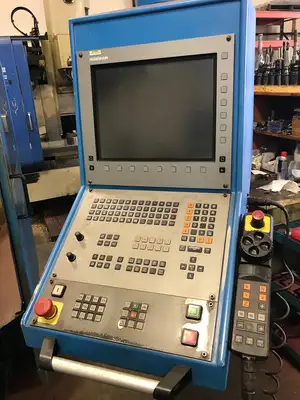

Control Heidenhain TNC 530
x-travel 2500 mm
y-travel 1000 mm
z-travel 1400 mm

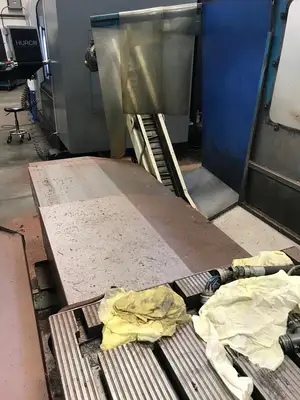

Table 2500 x 850 mm
Table load 6000 kg
Spindle revolutions 4000 1/min
Spindle power 22 kW
Rapid traverse 20000 mm/min
Tool holder SK 50
Weight 16000 Kg
Manufactured 2001
