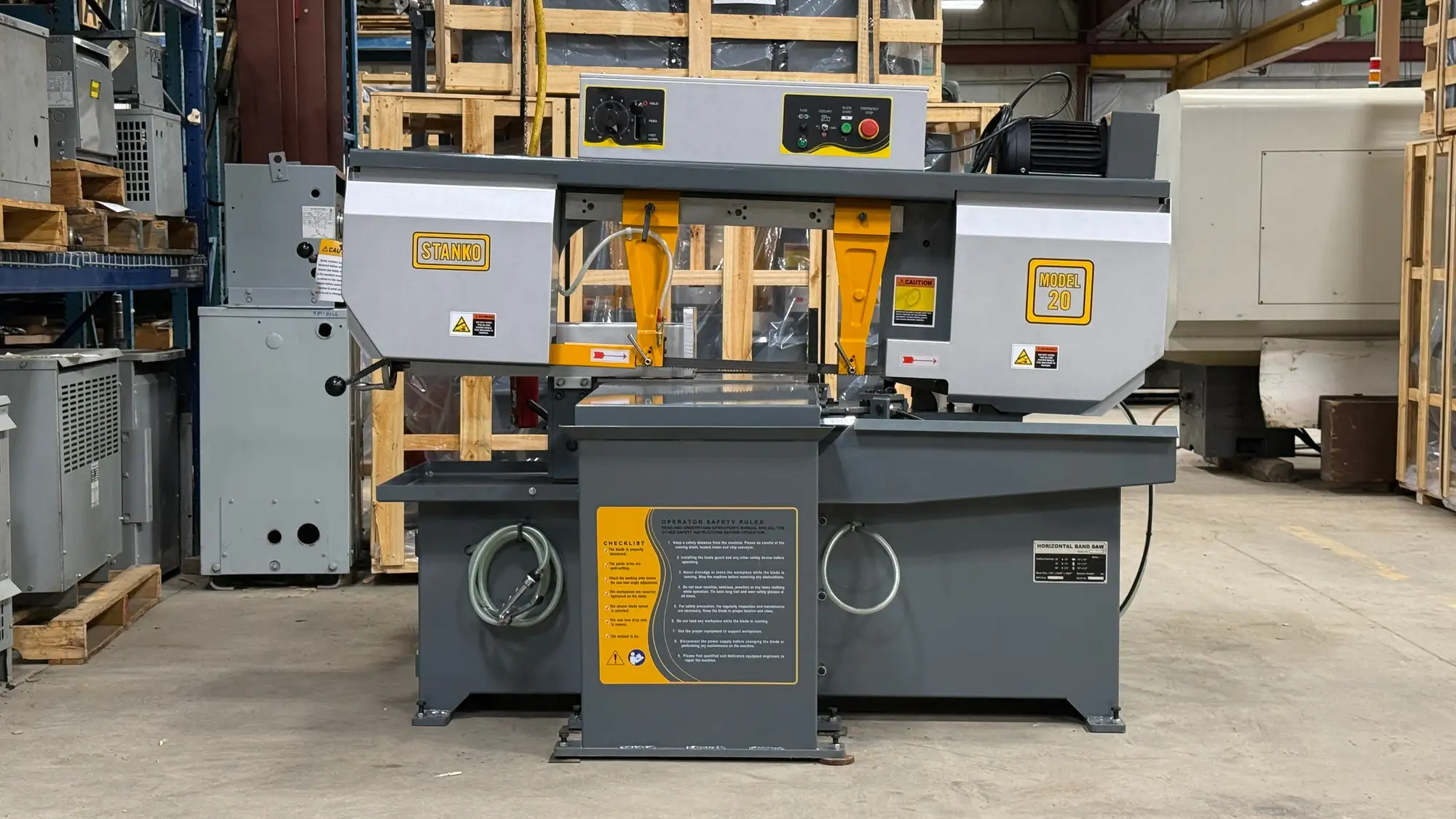

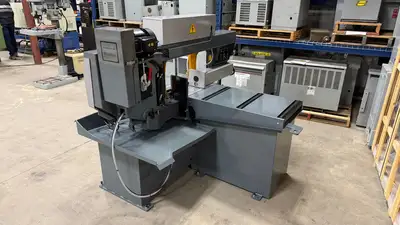

Stanko Model-20 Band saw

The STANKO Model 20 Horizontal Band Saw is a robust metal-cutting solution designed for precision and durability. It features a 13" x 18" cutting capacity at 90°, a swivel head for 45° and 60° mitre cuts, and four blade speeds ranging from 92 to 256 FPM. Equipped with  3-phase motor, it offers flexibility for different shop setups. With hydraulic downfeed control, coolant system, and heavy-duty frame, this saw ensures consistent and accurate performance in any fabrication environment.
Brand:
STANKO
Model:
Model 20

Capacity:

90° Round:
330 mm (13")

90° Rectangle:
330 × 450 mm (13" × 18")

45° Round:
280 mm (11")

45° Rectangle:
330 × 280 mm (13" × 11")

60° Round:
160 mm (6.3")

60° Rectangle:
250 × 160 mm (10" × 6.3")

Blade Size:
27 × 0.9 × 4130 mm (1.06" × 0.035" × 162.6")

Blade Speed (FPM):
92 / 137 / 198 / 256
Blade Speed (MPM):
28 / 42 / 60 / 78

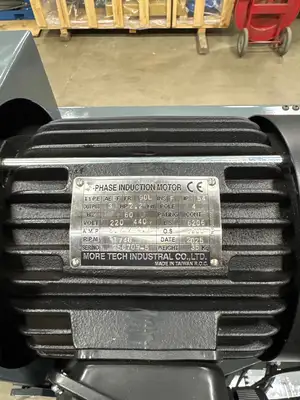

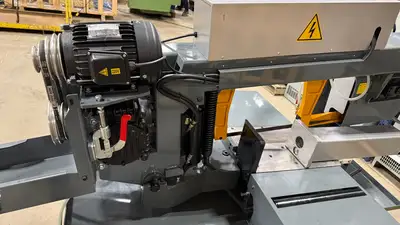

Motor:
3 PH – 3 HP (2.2 kW)
220V

Floor space 90° (L×W×H): 2020 × 2000 x 1550 mm
Weight: 850 kg (1870) lbs
SKU: .794.795.796.797.798
