STANKO 9×16 Band Saw

The STANKO 9×16 Horizontal Band Saw is a compact yet powerful cutting machine built for precision and versatility. Designed for production and maintenance shops, it offers a 9" x 16" cutting capacity at 90° with the ability to mitre up to 45°. Equipped with motor 3 PH, four adjustable blade speeds, and a heavy-duty cast frame, this saw ensures consistent, accurate cuts across a variety of materials. Ideal for steel fabrication, repair, and general metalworking applications.
Brand: STANKO
Model: 9×16 Horizontal Band Saw

Capacity:
90° Round: 230 mm (9")
90° Rectangle: 230 × 340 mm (9" × 13-1/2")
90° Square: 230 × 230 mm (9" × 9")
45° Round: 165 mm (6-1/2")
45° Rectangle: 230 × 165 mm (9" × 6-1/2")

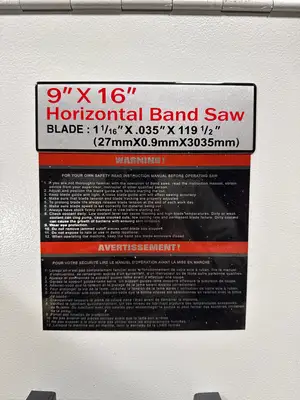

Blade Size: 27 × 0.9 × 3035 mm (1" × 0.035" × 119-1/2")

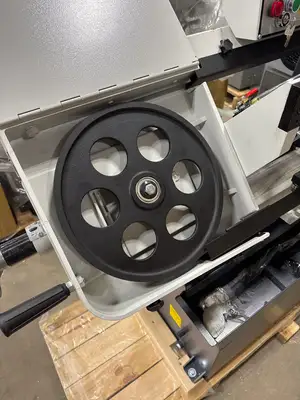

Blade Wheel Diameter: 330 mm (13")

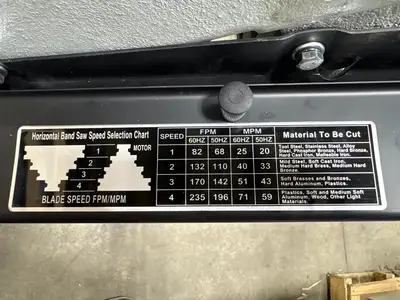

Blade Speed (FPM): 82 / 132 / 170 / 235
Blade Speed (MPM): 25 / 40 / 52 / 72

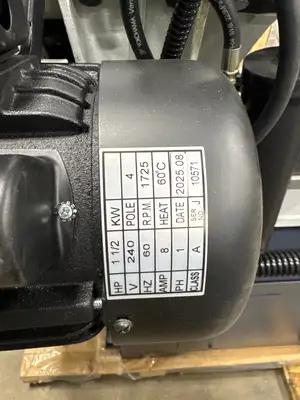

Motor:
1 PH - 1.5 HP (1.1 kW) – 1725 RPM – 60Hz
Voltage: 240V

Dimensions (L×W): 1700 × 760 mm (67" × 30")
Net Weight: 285 kg (625 lbs)
