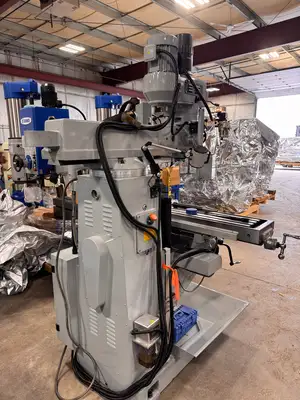

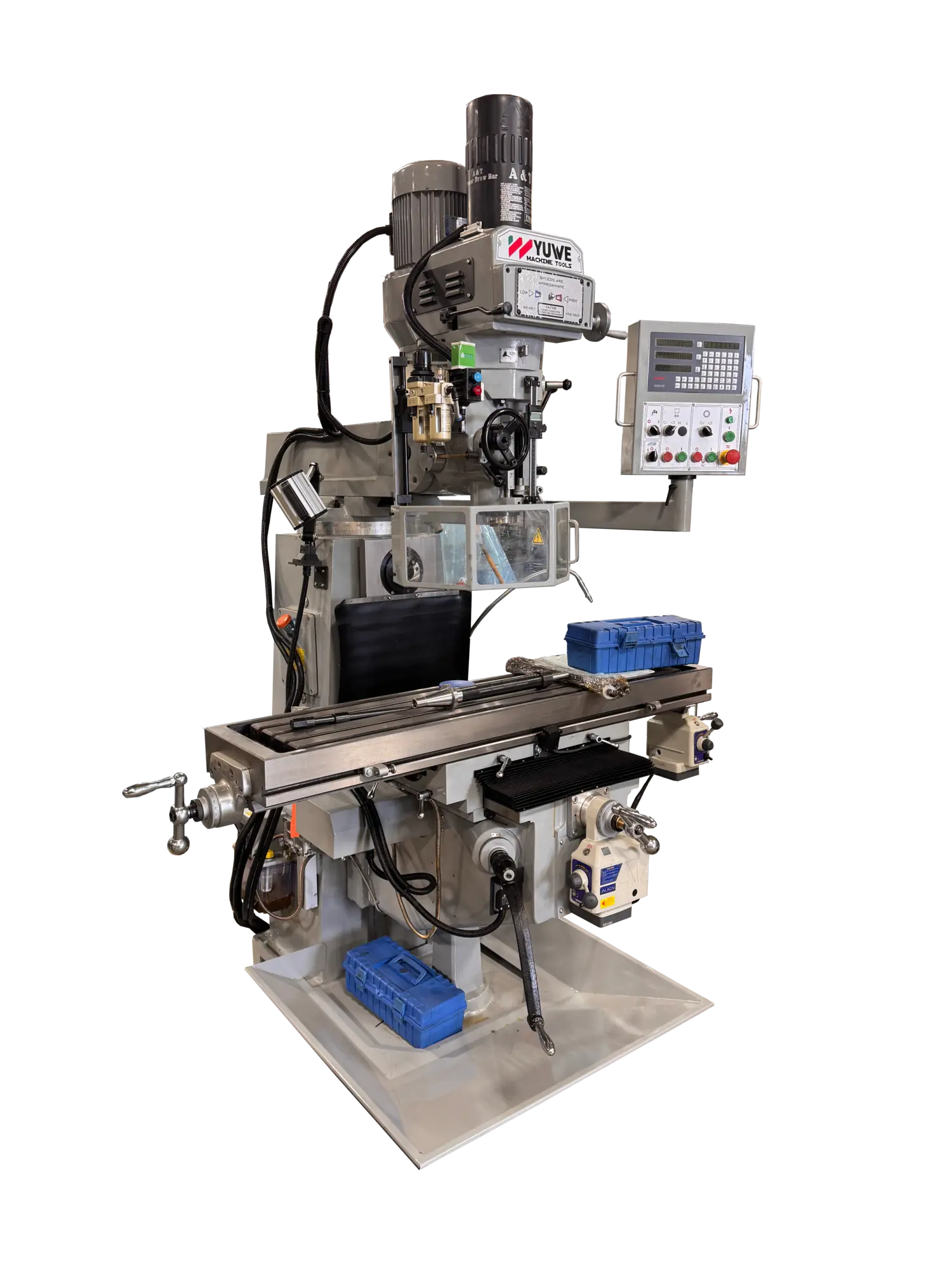

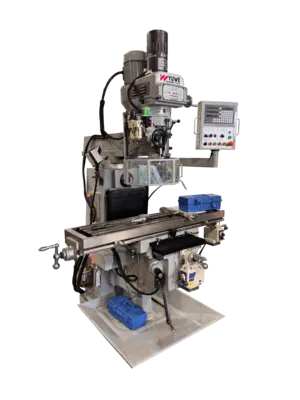

YUWE TM330H Bridgeport Style Horizontal & Vertical Milling Machine

Machine Description
The YUWE TM330H is a universal turret milling machine combining both vertical and horizontal milling capability in one rigid package. Built in Taiwan, this 5 HP dual-spindle mill offers a 12" × 54" table, generous X/Y/Z travels and strong gearbox power feeds for heavy cutting and versatile setup. With automatic lubrication, 3-axis SINO DRO plus quill DRO, and both vertical variable-speed head and horizontal spindle, it is well suited for production, fabrication and toolroom work where accuracy and reliability are critical. This model is a popular choice in Canada for industrial machining.

Specification
Machine: YUWE Universal Turret Milling Machine
Model / Type: TM330H

Origin
Country of Manufacture: Taiwan

Electrical
Power: 220 V, 3 Phase, 60 Hz

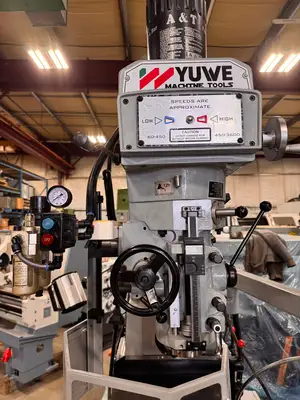

Vertical Milling Head Motor Power: 5 HP (variable speed, Taiwan head)
Horizontal Spindle Motor Power: 5 HP (12 speeds)

Capacities and Travels

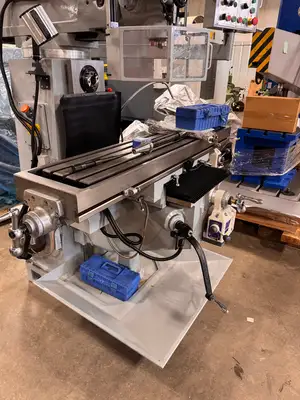

Table Size: 305 × 1370 mm (12" × 54")
Table Travel (X / Y / Z): 880 / 420 / 500 mm (34.65" × 16.54" × 19.69")
Quill Feeds:
0.038/0.076/0.152 mm/rev. (0.00150 / 0.00299 / 0.00598 in/rev)
Quill Travel: 127 mm (5")
Ram Cross Travel: 500 mm (20")
Distance Vertical Spindle Nose to Table: 0~535 mm (0"~21")
Distance Horizontal Spindle Center to Table: -50~410 mm (2"~16")
Distance from vertical spindle center to column slide way 160~640 mm (6.30" ~ 25.20")
Distance from horizontal spindle nose to column slide 35 mm (1.26")
Distance from horizontal spindle center to ram slide way 185 mm (7,28")
Maximum Table Load Capacity: 600 kg

Spindles

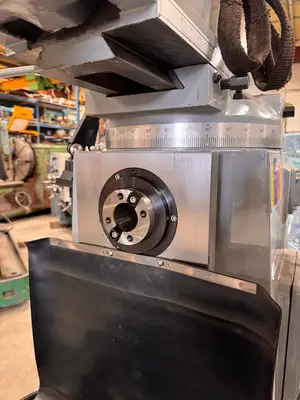

Spindle Taper (vertical and horizontal): NT40
Vertical Spindle Speed Range: 80–4200 rpm
Horizontal Spindle Speed Range: 40–1300 rpm (12 steps)

Head and Ram
Milling Head Swivel: ±90°
Milling Head Tilting: ±45°
Ram rotating : 180°

Feeds and Systems
Standard Power Feeds: X / Y gearbox feed
Z-Axis Up/Down Motor: Included
Lubrication System: Automatic

Machine Size and Weight
Machine Weight: 1650 kg (3,637 lb)
Overall Dimensions (H × L × W): 2250 × 2150 × 1800 mm

Measurement and Control

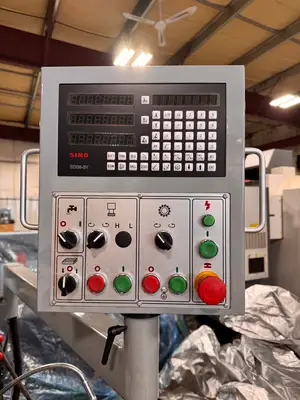

Digital Readout: 3-axis SINO DRO
Additional Readout: Quill DRO

Certification
Certification: CSA / ETL inspection approved

Standard Accessories
Draw Bar for V & H Spindle
Work Lamp
Tool Shank for Horizontal Spindle
Air Power Draw Bar
Cooling Pump and Oil Tray
YZ Axis Splash Guard
Auto Lubrication Pump
3-Axis SINO DRO
Quill DRO
Rubber Telescopic Cover
Water Plate
Tool Box with Wrenches
Optional Accessories
Clamping Kit
Dividing Head
Milling Vise 8"
Collet Set
Rotary Table

SKU:769,770,771,772,773,774
