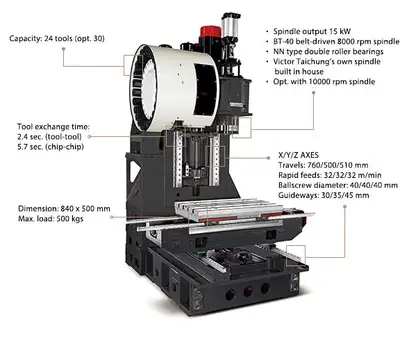

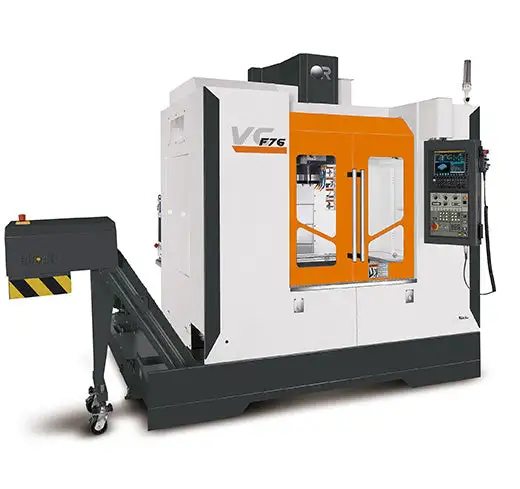

Vcenter-F76 Specifications
Travel
X Axis Travel: 760 mm
Y Axis Travel: 500 mm
Z Axis Travel: 510 mm (optional 690 mm)
Distance
Spindle Center to Column: 565 mm
Spindle Nose to Table Surface: 120 ~ 630 mm (optional 810 mm)
Table
Table Work Area: 840 x 500 mm
T-slot Dimension: 4 x 18 x 100 mm
Max. Table Load: 500 kg
Spindle
Spindle Taper: BT-40
Spindle Motor (Cont./-25% for 15 min): 11/15 kW
Spindle Speed: 8000 rpm (optional 10000 rpm)
Feed Rate
Rapid Feed Rate (X/Y/Z - Fanuc): 32 / 32 / 32 m/min
Axis Acceleration (X/Y/Z): 0.5G / 0.5G / 0.5G
Axis Feed Motor (X/Y/Z): 2.5 / 2.5 / 3 kW
Cutting Feed Rate by Table: 20 m/min
Ball Screw (X/Y/Z - Diameter x Pitch): 40 x P16 mm
Linear Guide Width (X/Y/Z): 30 / 35 / 45 mm
Tools
Max. Tool Length: 300 mm
Max. Tool Weight: 7 kg
Magazine Capacity: 24 (optional 30)
Max. Tool Diameter (Without Adjacent Tools): 75 mm (150 mm)
Tool Exchange Time: 2.4 sec (T-T), 5.7 sec (C-C)
Pull Stud Angle: 15° (JIS 40P)
Tool Selection Method: Random
Accuracy (ISO 230-2)
Positioning Accuracy (Bi-directional): 0.010 mm
Repeatability: 0.007 mm (±0.0035 mm)
Machine
Power Requirement: 22 kVA (excluding CTS)
Min./Max. Air Pressure: 5.5 ~ 6.5 kg/cm²
Coolant Tank Capacity: 220 L
Standard NC Controller (Fanuc): 0i-MF Plus (10.4")
Floor Space Requirement: 2714 x 2782 mm
Max. Machine Height: 2578 mm
Machine Weight: 5260 kg
