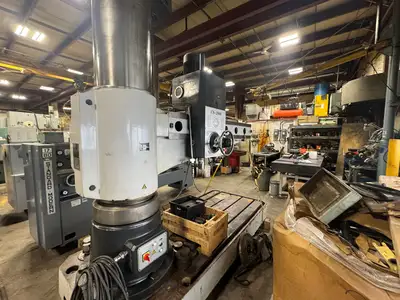

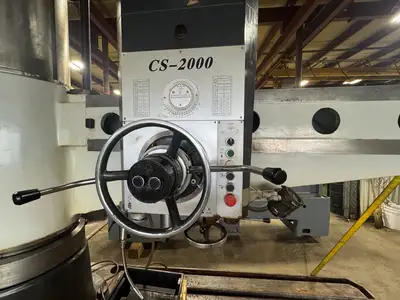

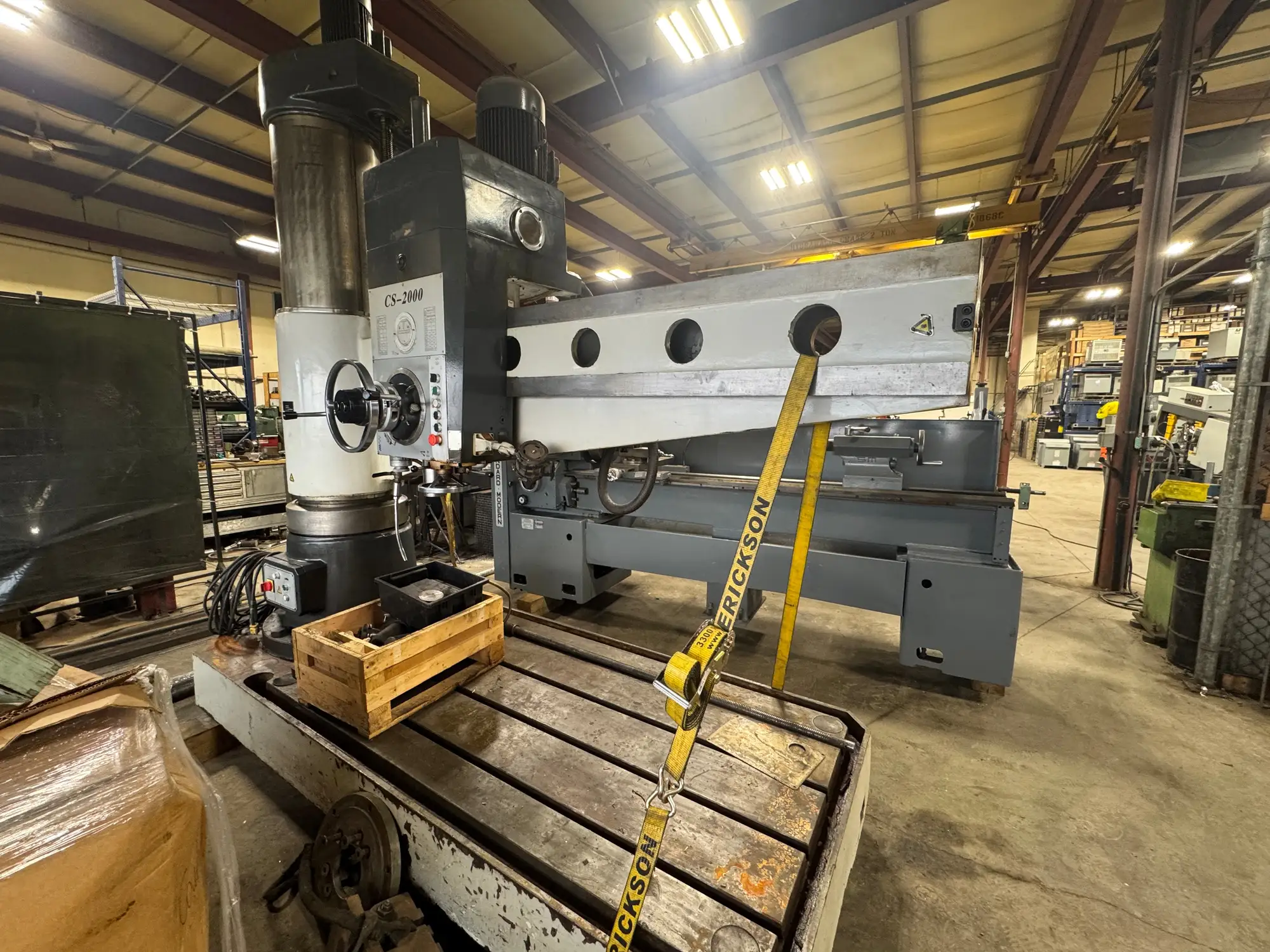

SMTCL CS-2000 Radial Drill – Built for Precision and Heavy-Duty Power
This industrial-grade SMTCL CS-2000 radial arm drill features a 3" drilling capacity in solid steel, a robust 15 HP motor, and a 66" horizontal head travel. With a MT 5 spindle taper and 86" arm length, it's designed for versatile and powerful operation in demanding shop environments.
Max. diameter of hole drilled: 63 mm
Distance from center line of mainshaft to the bus of the upright column (Max.): 2000 mm
Distance from center line of mainshaft to the bus of the upright column (Min.): 450 mm
Mainshaft box horizontal movement distance: 1550 mm
Distance from mainshaft end to baseplate working surface (Max.): 1600 mm
Distance from mainshaft end to baseplate working surface (Min.): 400 mm
Rocker arm rising-falling distance: 800 mm
Rocker arm rising-falling speed: 0.017 m/s
Rocker arm rotation angle: ±180°
Mainshaft conical bore: Morse No.5
Mainshaft rotation speed range: 20–1600 r/min
Mainshaft rotation speed class: 16 classes
Mainshaft feed quantity range: 0.04–3.2 mm/r
Mainshaft feed quantity class: 16 classes
Mainshaft travel: 400 mm
Drilling depth per each rotation of dial: 151 mm
Allowable mainshaft max. torque: 980 N·m
Allowable mainshaft max. feed resistance force: 24500 N

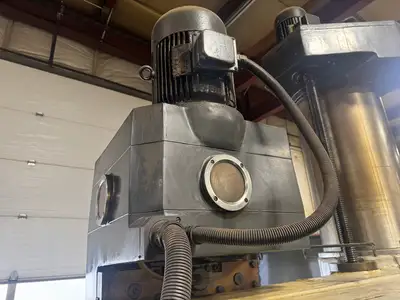

Power of master motor: 5.5 kW
Power of rocker arm rising-falling motor: 2.2 kW
Power of hydraulic clamping motor: 0.75 kW
Power of cooling pump motor: 0.09 kW
Voltage 220V 3 Phase 60Hz
Weight of machine tool (approx.): 7000 kg
Overall dimensions (L×W×H): 3080 × 1250 × 3205 mm
