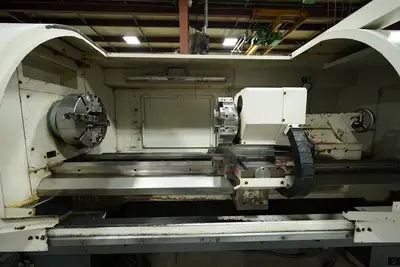

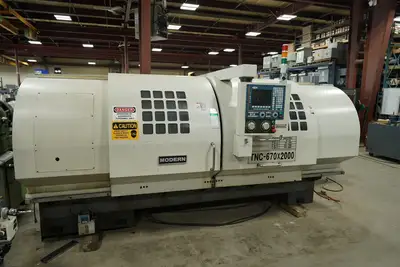

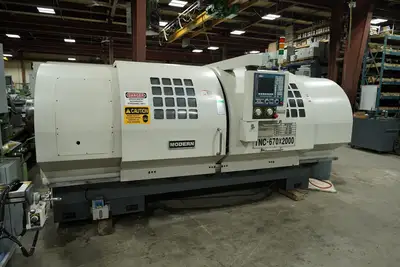

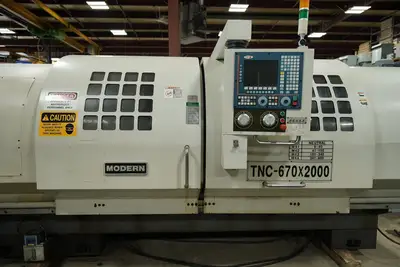

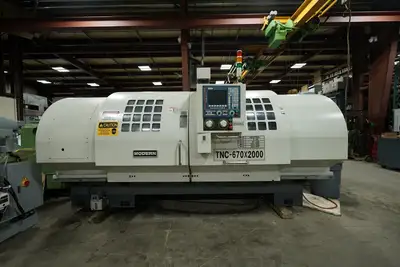

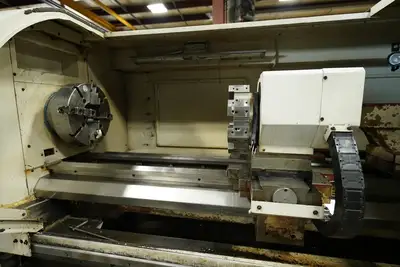

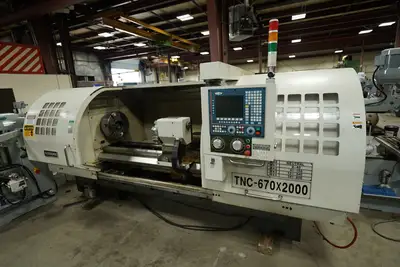

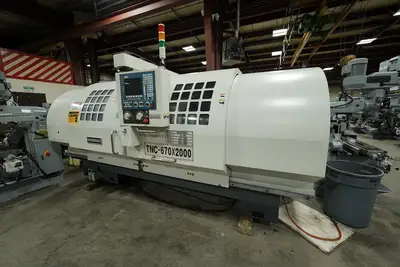

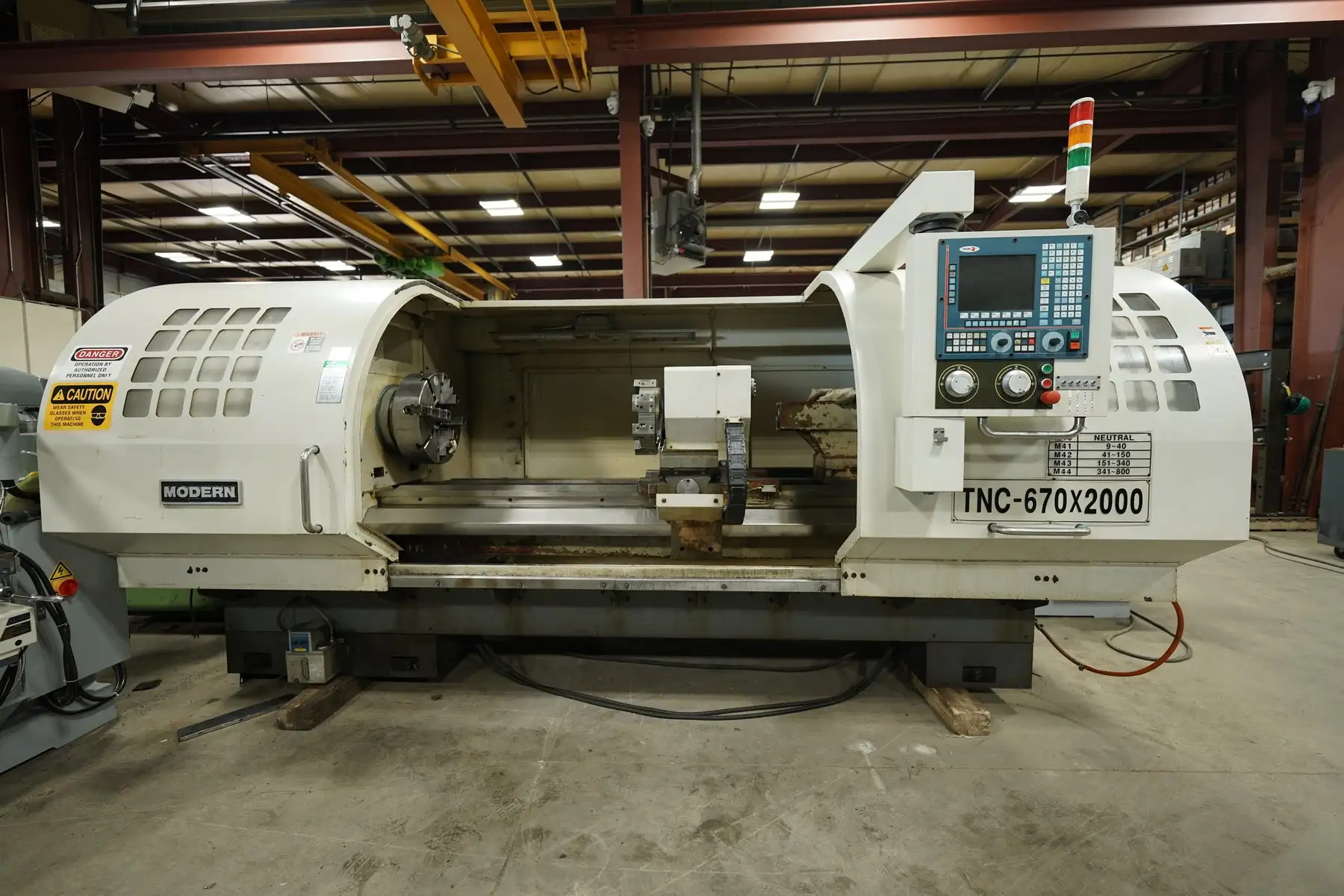

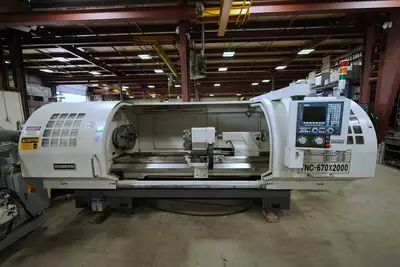

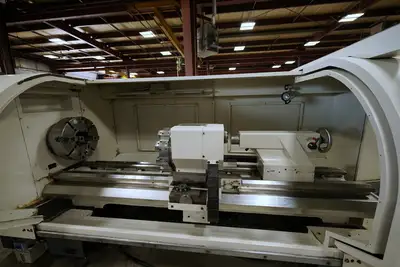

The Modern TNC 670 x 2000 CNC Lathe delivers powerful performance with a 26" swing, 80" between centers, and a large 6.25" spindle bore. Controlled via Fagor 8055 TC, this machine features a 31 HP spindle motor, chip conveyor, AC servo motors, and auto lubrication—ideal for heavy-duty turning applications.
Specifications
Spindle Bore: 6.25"
Spindle Nose: D1-11
Spindle Motor: 31 HP
Spindle Speed: 4 Range (9-800 RPM)
Swing over bed: 26"
Swing over cross slide: 15.74"
Distance Between Center: 80"
Rapid Travel X: 197 IPM
Rapid Travel Z: 394 IPM
Cutting Speed X: 0-197 IPM
Cutting Speed Z: 0-394 IPM
Max X-axis Travel: 1375
Max Z-axis Travel: 120
Tailstock Quill Travel: 9"
Tailstock Taper: MT5
X-axis Motor: 2.4 HP
Z-axis Motor: 4.66 HP
Coolant: 1/8 HP
Voltage: 400V
Chip Conveyor

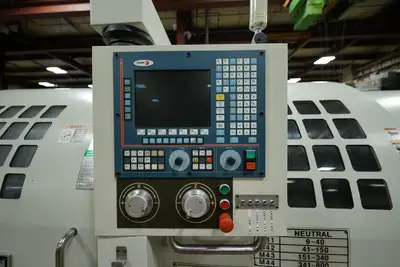

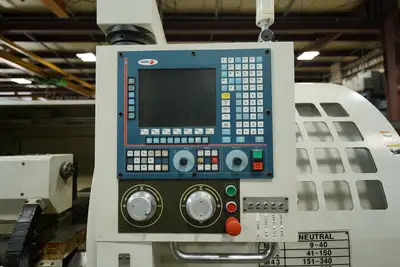

Control Fagor 8055 TC
Auto Lubrication to all ways
Coolant system
AC servo motors
Rear Flange Chuck
Dimensions 14' x 6' x 7'
