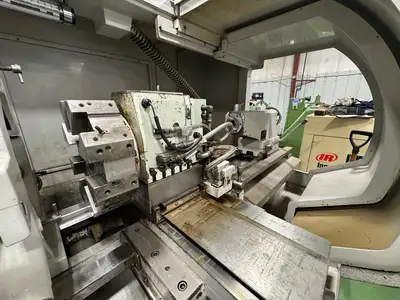

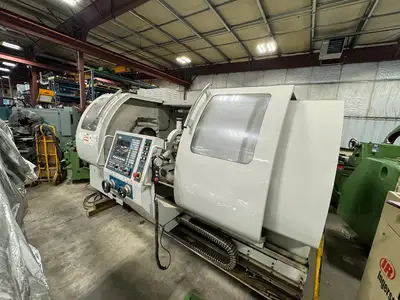

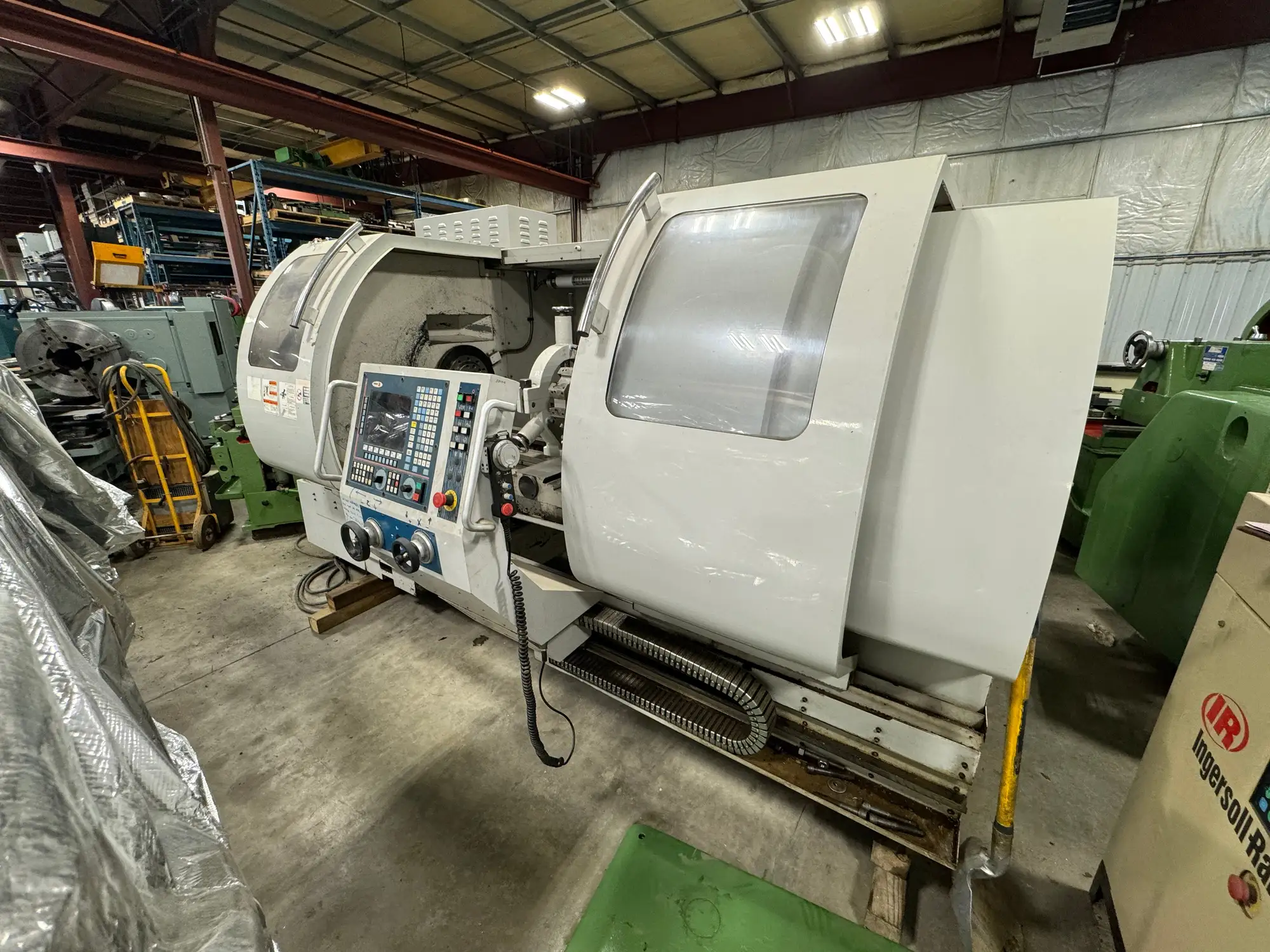

The Modern BNC 2260XL CNC Lathe offers precision machining with a 22" swing, 60" between centers, and a robust 4.1" spindle bore. Equipped with a 20 HP motor, A2-11 spindle nose, and positioning accuracy of 0.0002", this heavy-duty lathe delivers high-performance turning in a compact footprint.
Specifications:
Specifications
Spindle Bore: 4.1"
Spindle Nose: A1-8: A2-11
Spindle Speed: 80 - 2400 (2 Steps)
Spindle Taper: 01:19.8
Spindle Bearing Taper Roller P5
Swing over bed: 22"
Swing over Gap: 29"
Swing over cross slide: 12"
Center height: 11"
Width of bed: 16"
Distance between centers: 60"
Z Travel: 65"
X Travel: 13.6"

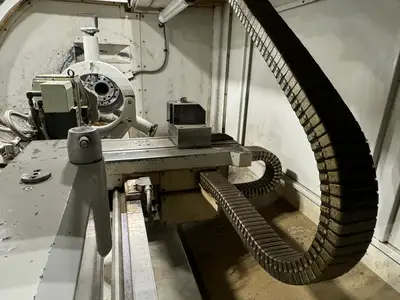

Cross slide width: 8.5"
Tailstock diameter: 3.94"
Tailstock quill travel: 6"
Tailstock taper: MT5
Motor: 20 HP

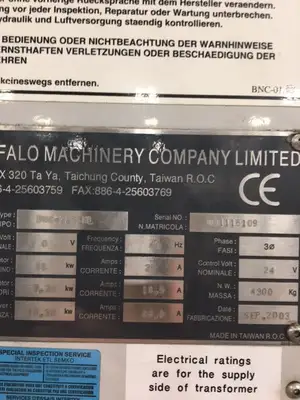

Voltage: 208V
XZ Feed Motor: 2.5 HP
Coolant Pump: 1/8 HP

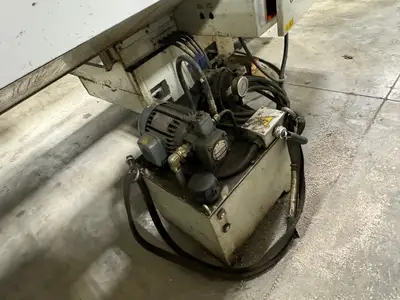

Auto Lube Pump: 1/16 HP
Rapid Travel: X/Z 240/315 IPM
Positioning Accuracy: 0.0002"
Machine Weight: 8,118 lbs
Floor Space: 140" x 60"
