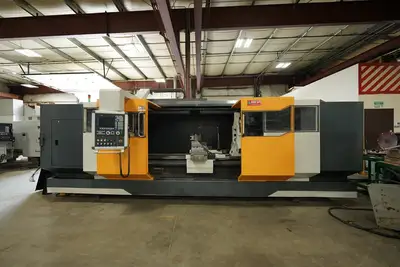

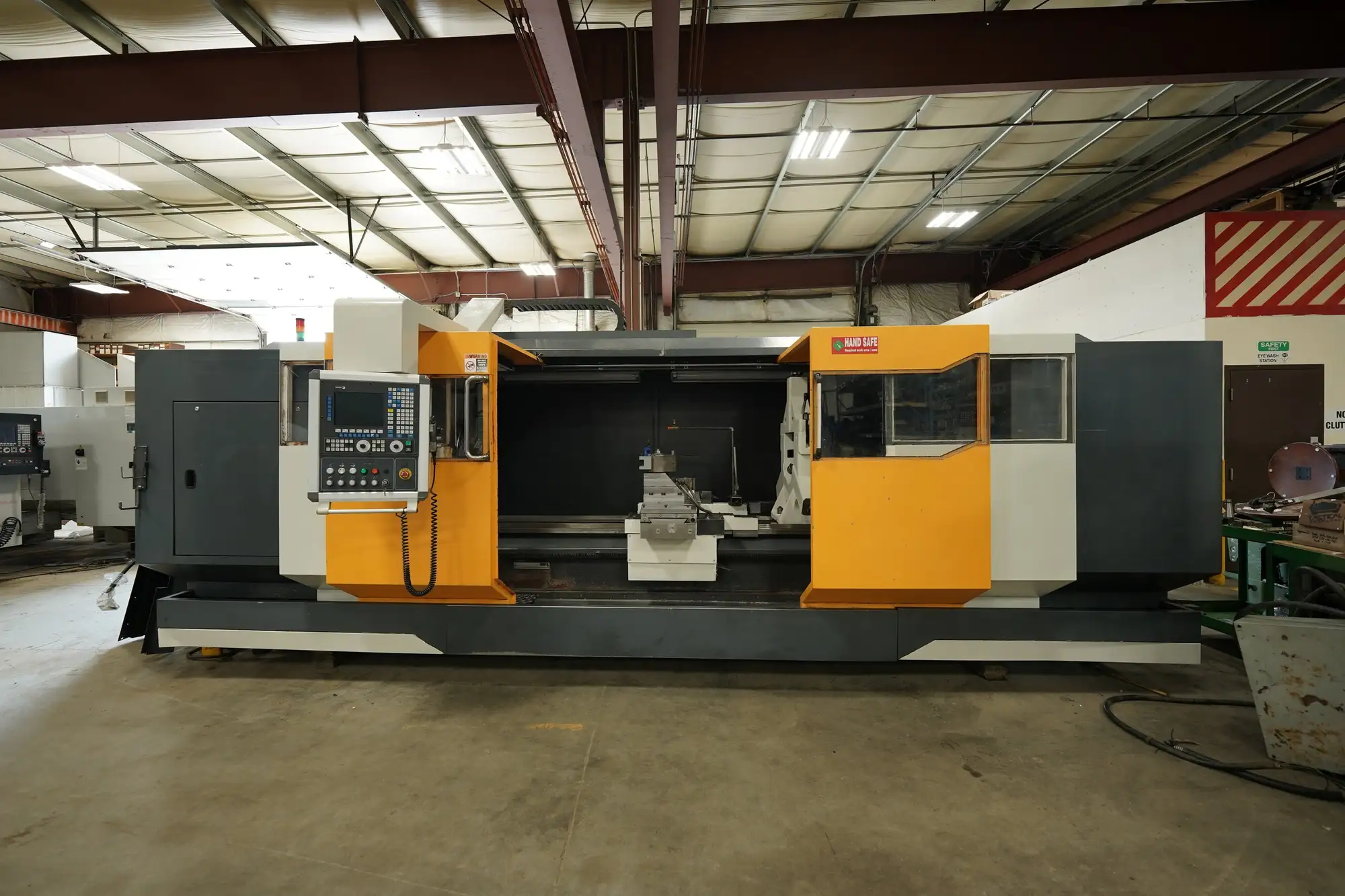

Maxcut MLNC 33" x 120" CNC Lathe

Handle large, demanding turning jobs with the Maxcut MLNC-9/32120 CNC Lathe. Offering a massive 33" swing, 120" centers, 9.48" spindle bore, and powerful 30 HP motor, this lathe is built on a 14,000 lb heavy-duty frame and controlled via Fagor 8055 for precision CNC machining.
Specifications

Model: Maxcut MLNC-9/32120

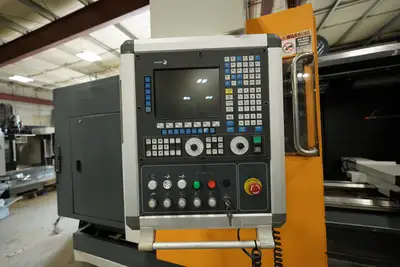

Control: Fagor 8055 Control

Swing over bed: 33"

Distance between centers: 120"

Swing over cross slide: 17.50"

Max. cutting diameter: 32"

Max cutting length: 110"

Bar cap.: 9"

Bed Width: 23.6"

Load Cap. between centers: 5,511 lbs

Bedway: 24"

Steady Rest Cap.: 1.60" - 14"

Backsplash guard with travelling door

Heavy Duty Structure Frame: 14,000 lbs

Chip Conveyor

Travel X: 16.5"

Travel Z: 110.23"

Spindle: 60 - 800 RPM

Spindle Bore: 9.48"

Spindle Motor: 30 HP

Spindle Mount: A2-15

Dual Chuck: 25"- 4 Jaw Master (Bison)

Feedrate X: 3 M/min

Feedrate Z: 6 M/min

Voltage: 400 V

Tailstock Taper: MT5

Quill Stroke: 9.84"

Quill Diameter: 3.93"

Machine Dimension: 222.5" x 87.5" x 72"

Machine Weight: 16,540 lbs

ST: 623
