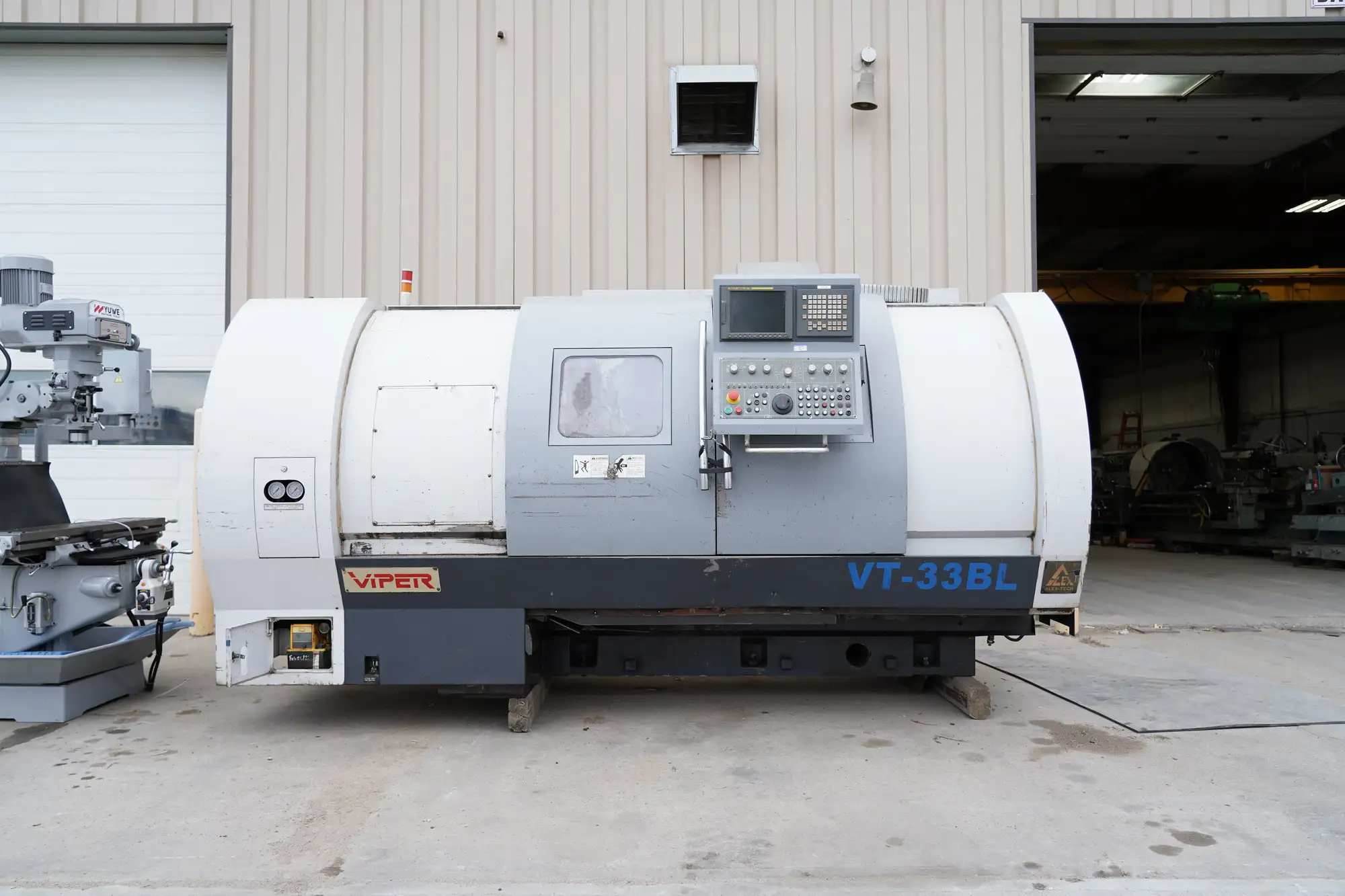

The Mighty Viper VT33BL CNC Lathe is a high-powered turning center built for heavy-duty performance. With a 26.8" swing, 5.15" spindle bore, 50 HP motor, and Fanuc Series 2Ti-TB control, this machine delivers precision and power for demanding production needs. Includes 12-station turret, chip conveyor, and programmable tailstock.
Specifications
Brand: Mighty Viper
Model: VT33BL
Year: 2005
Swing Over Beds: 26.8"
Max Turning Diameter: 18.9"
Max Turning Length: 41.9"
X-Axis Travels: 12.63"
Z-Axis Travels:42.9"
Spindle Speed: 2,400 RPM
Spindle Motor: 50 H.P.
Spindle Bore / Bar Capacity: 5.15" / 4.52"
Spindle Nose: A2-11
Turret Stations: 12 Stations
Control: Fanuc Series 2ti-TB
Equipped With:

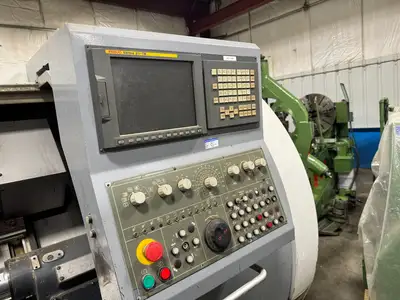

Fanuc CNC Control
15" 3-Jaw Chuck
12 Station Turret
Large 4.52" Bar Capacity
Programmable Tailstock
Chip Conveyor
Coolant Tank, Pump and Assembly
Voltage: 220V 60hz, 3p
Dimensions: 147"L x 80"W x 90"H
