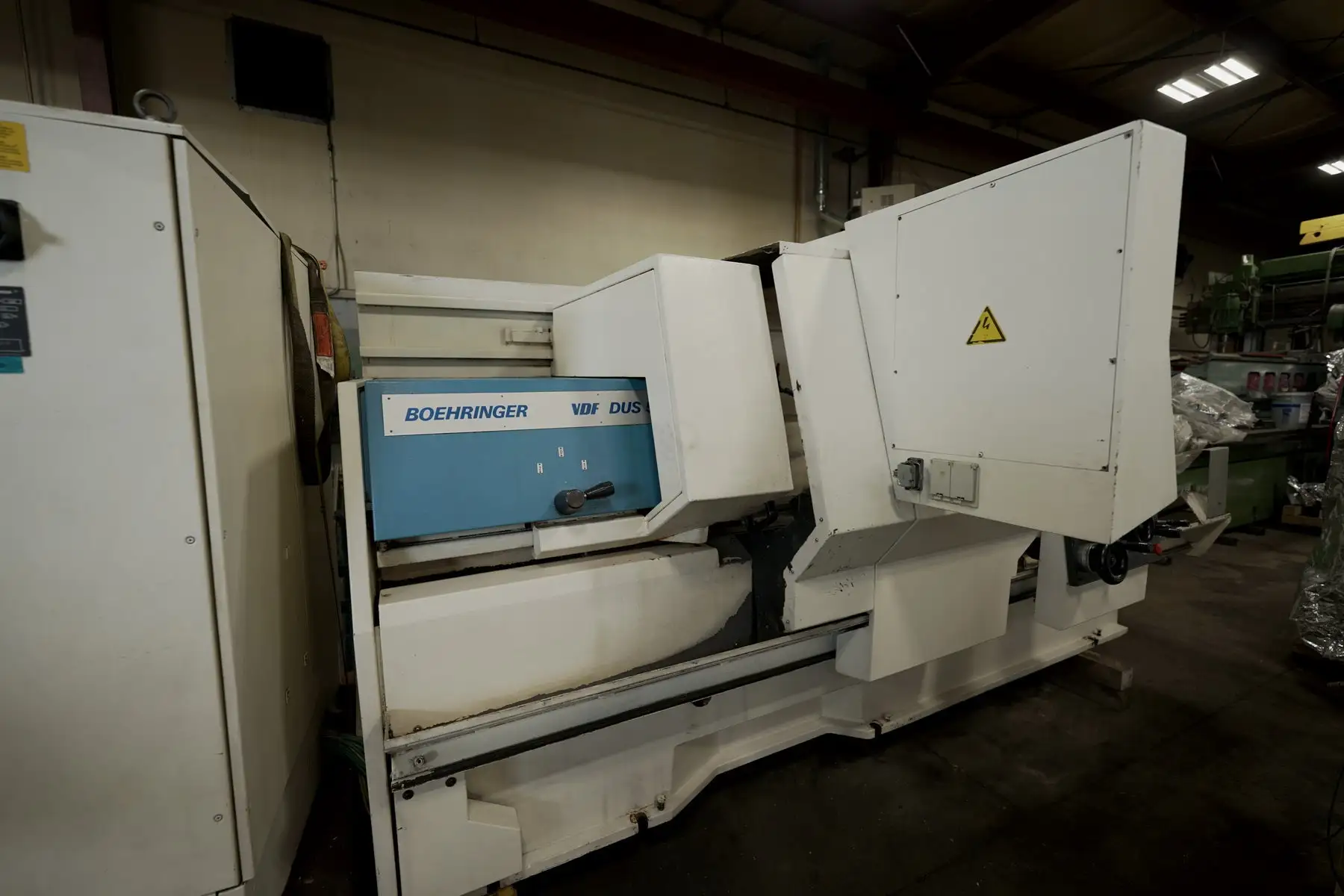

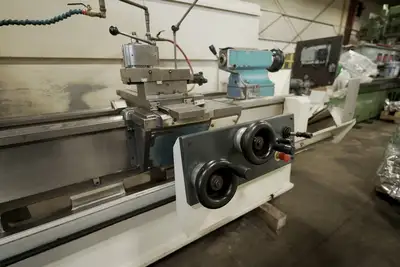

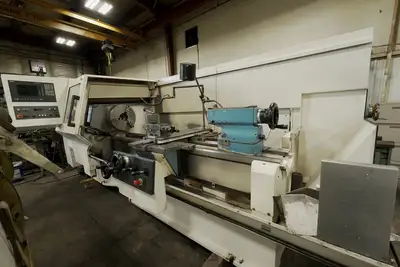

Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe
  • Boehringer VDF DUS 560 (1998) CNC Lathe

Boehringer VDF DUS 560 (1998) CNC Lathe

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Stock #:
545
Specifications

Specifications

Working Range

Swing Over Bed: 23"

Length: 70"

Swing Over Cross Slide: 14.4"

Stroke of Cross Slide (Compound Slide in mm): 245

Spindle Bore: 2.44"

Spindle Power: 20/28 HP

Chuck: 15 3/4 - 3 Jaw Master Bison

Continuously Variable 3 Phase AC Motor

Speed Range: 8000 RPM

Quill Ø: 3.94"

Quill Stroke:7.5"

Quill Taper: MK5

Tool Post: Quick Change 40 Position

Control: Siemens Sinumerik 810D

Voltage: 400V, 3p AC, 63A

Dimensions:  156L"x 70W"x 75H"

Weight: 12350lbs

Date: 1998
