Machine Description

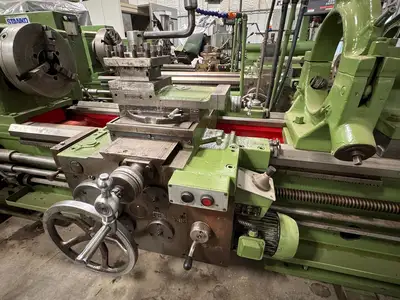

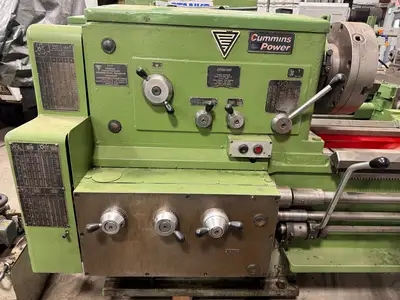

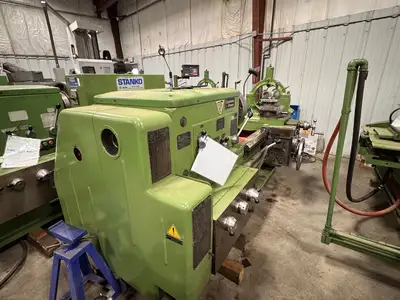

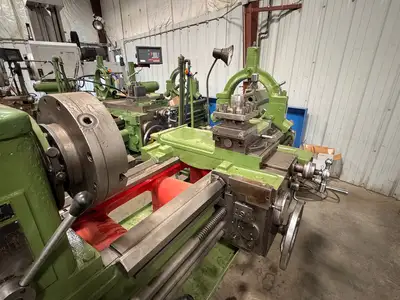

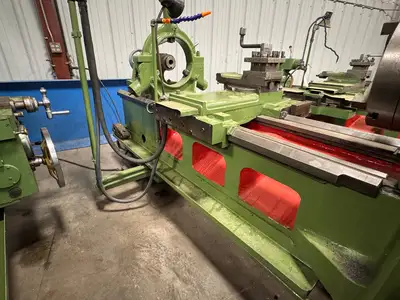

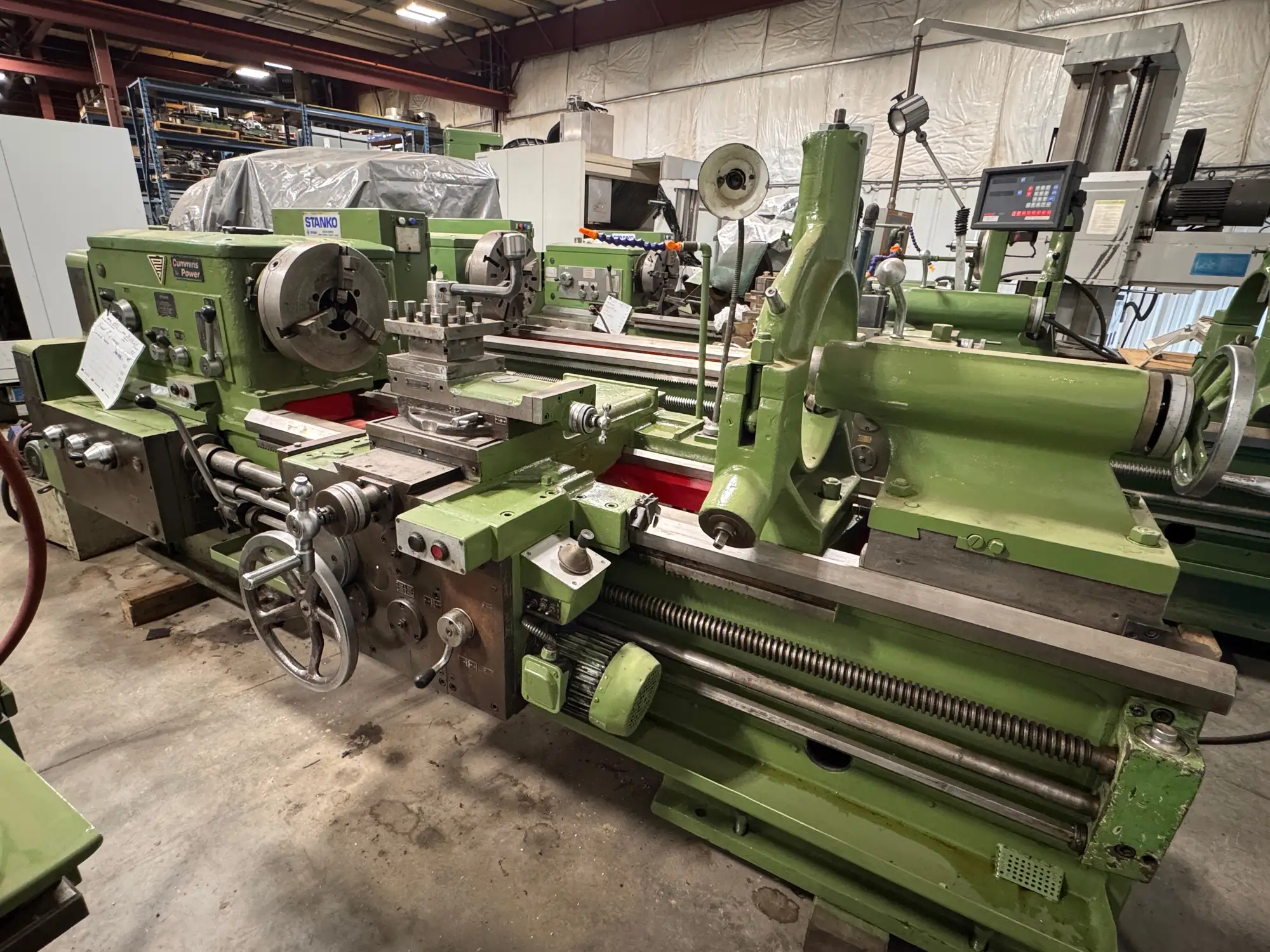

The Stanko 1M63B-1 is a robust heavy-duty engine lathe designed for serious industrial metalworking. With a generous 28" swing and 60" between centers, it can handle large shafts, rolls, and repair jobs with confidence. A 16" 3-jaw chuck and 2-3/4" spindle bore give strong workholding and the ability to pass substantial material through the spindle for longer components. The machine is equipped with rapid travel on the carriage, MT5 tailstock, steady rest, digital readout, and work lamp to support both productivity and precision in day-to-day shop use. This model is a popular choice in Canada for industrial machining and general jobbing work, especially where a solid, straightforward manual lathe is required.
Specification
Machine: Stanko Engine Lathe
Model / Type: 1M63B-1
Serial No.: 2620
Capacity
Swing over bed: 28"
Distance between centers: 60"
Spindle bore: 2-3/4"
Chuck: 16" 3-jaw
Leadscrew pitch: 2 TPI
Tailstock taper: MT5
Toolpost: Square
Rapid traverse: Yes

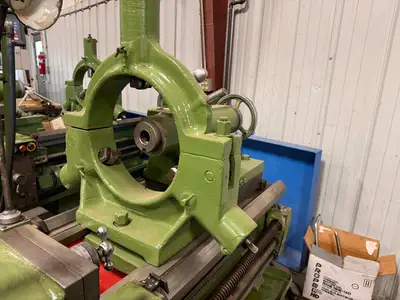

Steady rest: Included
Work lamp: Included
Digital readout: Included
Spindle
Spindle speed range: 10–1250 RPM

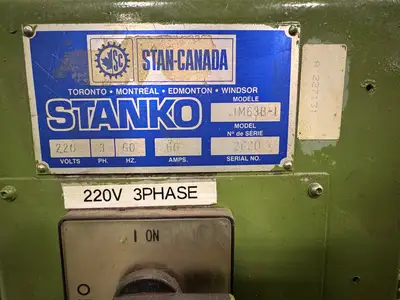

Electrical
Power supply: 220 V, 3-phase, 60 Hz
Full-load current: 60 A
Dimensions and Weight
Approx. overall dimensions: 150" L x 65" W x 70" H
Approx. weight: 8,000 lb
Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.“Price for reference only. For an exact quote, contact us:
