Title: Machine Description

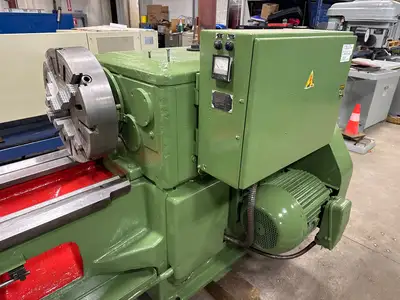

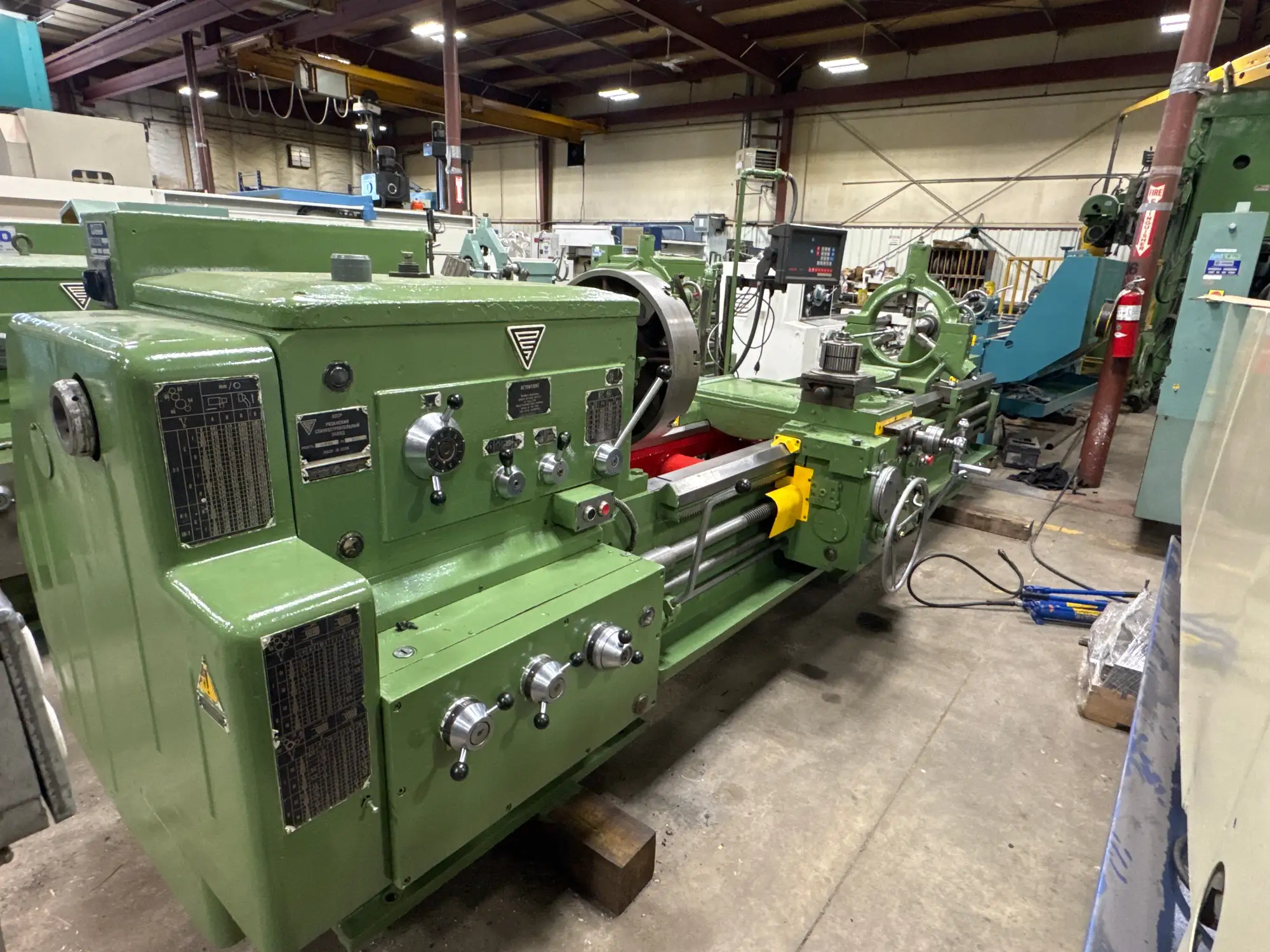

The Stanko 1M63B is a heavy-duty manual engine lathe designed for industrial applications where large swing and long shaft work are common. With a 28" swing over the bed, 100" between centers, and a 20" 4-jaw chuck on a 2-3/4" spindle bore, it is well suited to turning large flanges, rolls, and heavy repair work. The machine is equipped with a Newall DP7 2-axis digital readout, quick-change tool post, steady rest, rapid traverse and taper attachment to support both productivity and accuracy in day-to-day shop use. Powered at 600V, this Stanko 1M63B lathe offers robust Soviet-era construction and reliable performance for demanding industrial machining. This Stanko 1M63B lathe is a popular choice in Canada for industrial machining.
Title: Specification
Machine: Manual Engine Lathe
Brand: Stanko
Model / Type: 1M63B
Serial Number: 353
Capacity
Swing over bed: 28 in (711 mm)
Distance between centers: 100 in (2540 mm)
Spindle bore: 2-3/4 in (70 mm)

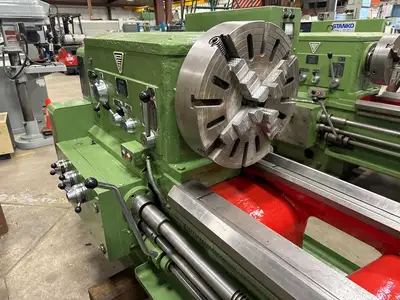

Chuck: 20 in (508 mm) 4-jaw chuck

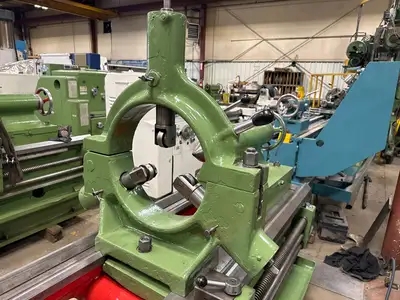

Steady rest capacity: 15 in (381 mm) diameter

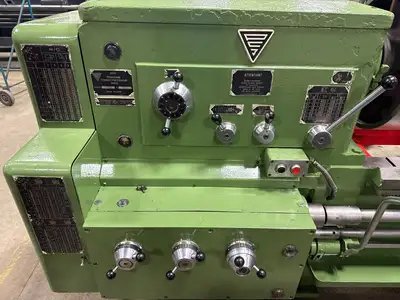

Headstock
Spindle speed range: 10 – 1250 rpm
Lead screw pitch: 2 TPI

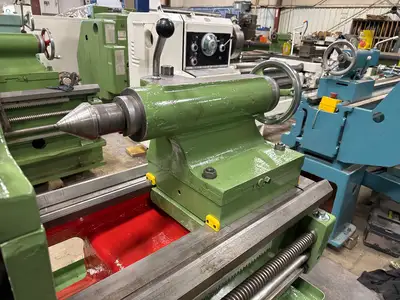

Tailstock
Tailstock quill taper: MT5
Equipment / Features

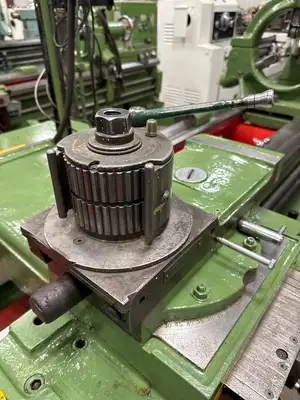

Tool post: Quick-change with tool holder

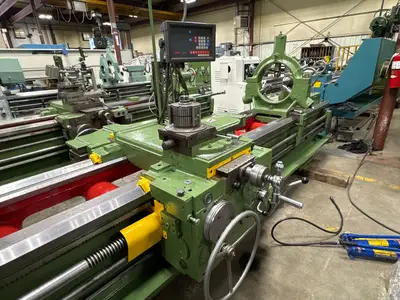

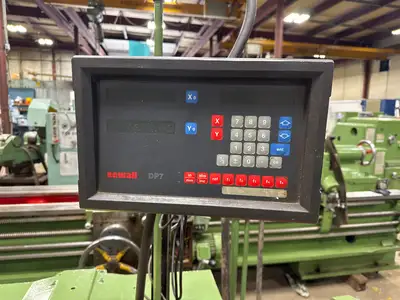

Digital readout: Newall DP7, 2-axis
Steady rest: Included, 15 in capacity
Rapid travel: Yes

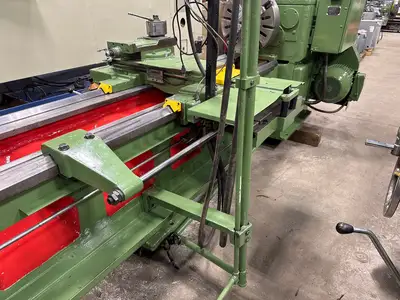

Taper attachment: Yes
Electrical
Power: 600 V
Dimensions and Weight
Overall dimensions (L × W × H): 192 in × 66 in × 77 in
Overall dimensions (approx. metric): 4877 mm × 1676 mm × 1956 mm
Weight: 6000 kg (approx. 13,230 lb)
