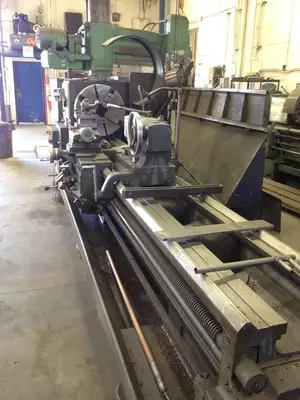

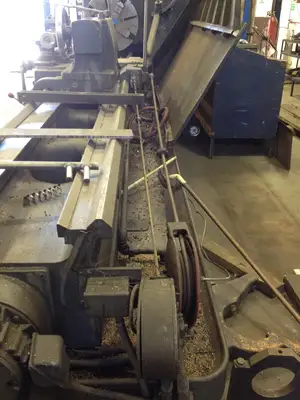

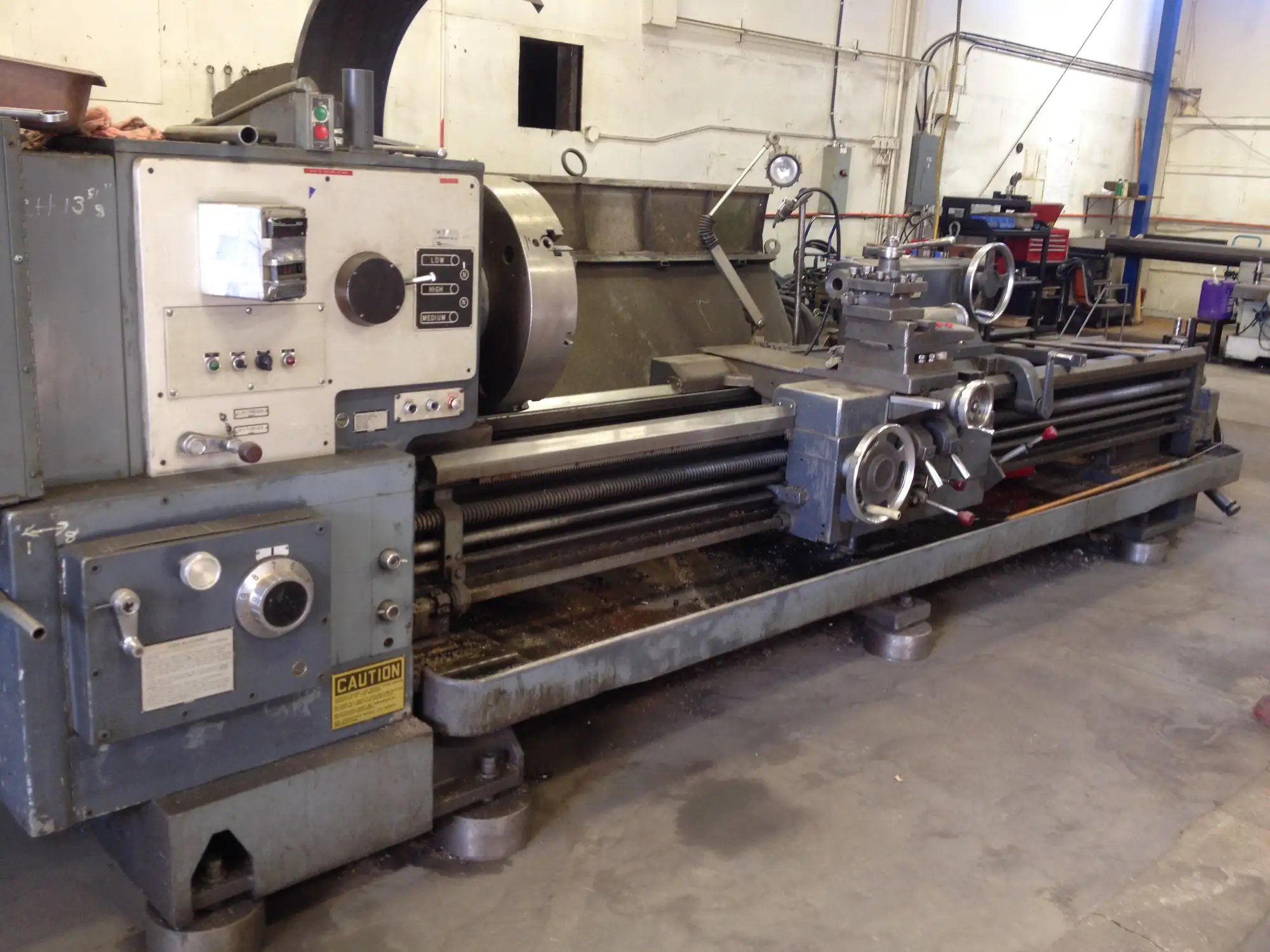

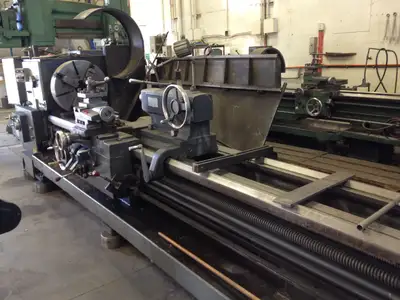

Lodge & Shipley PT2516 Manual Lathe – Heavy-Duty American Power
This robust Lodge & Shipley PT2516 engine lathe features a 6" spindle bore, 24" 4-jaw chuck, and 120" between centers. Equipped with a 30 HP motor, DRO, variable speed drive in 3 ranges, and 460V 3-phase operation, it's ideal for large-diameter and long workpieces.
Specification
Brand: Lodge & Shipley
Model: PT2516
Serial:
S1151
Pulley Speed: 1300RPM
Spindle Bore:
6''
Chuck: Duo

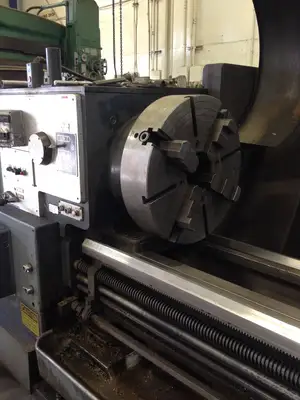

24" 4-jaw chuck on the front (3 Jaw 24")
20" over the cross slide
Distance: 120"
Digital Read Out
Motor:
30HP
Pulley Speed: 1300RPM
Power:

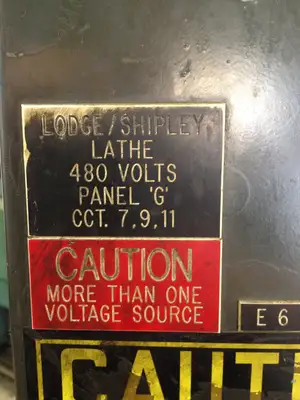

Voltage: 460/3/60
Variable Speed – 3 ranges

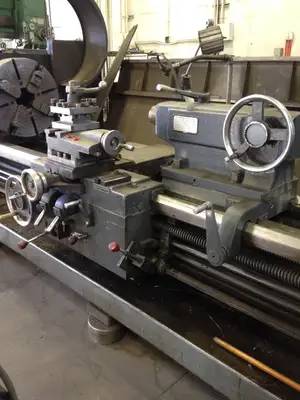

Tool Post: Square tool post
Follow Rest

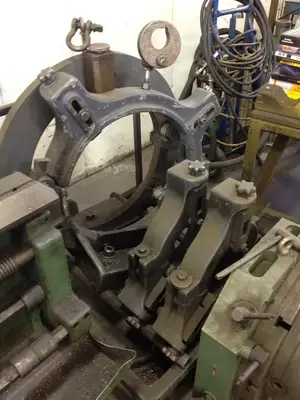

Steady Rest
Work Lamp
Chuck Guard
ST: 728
