Machine Description

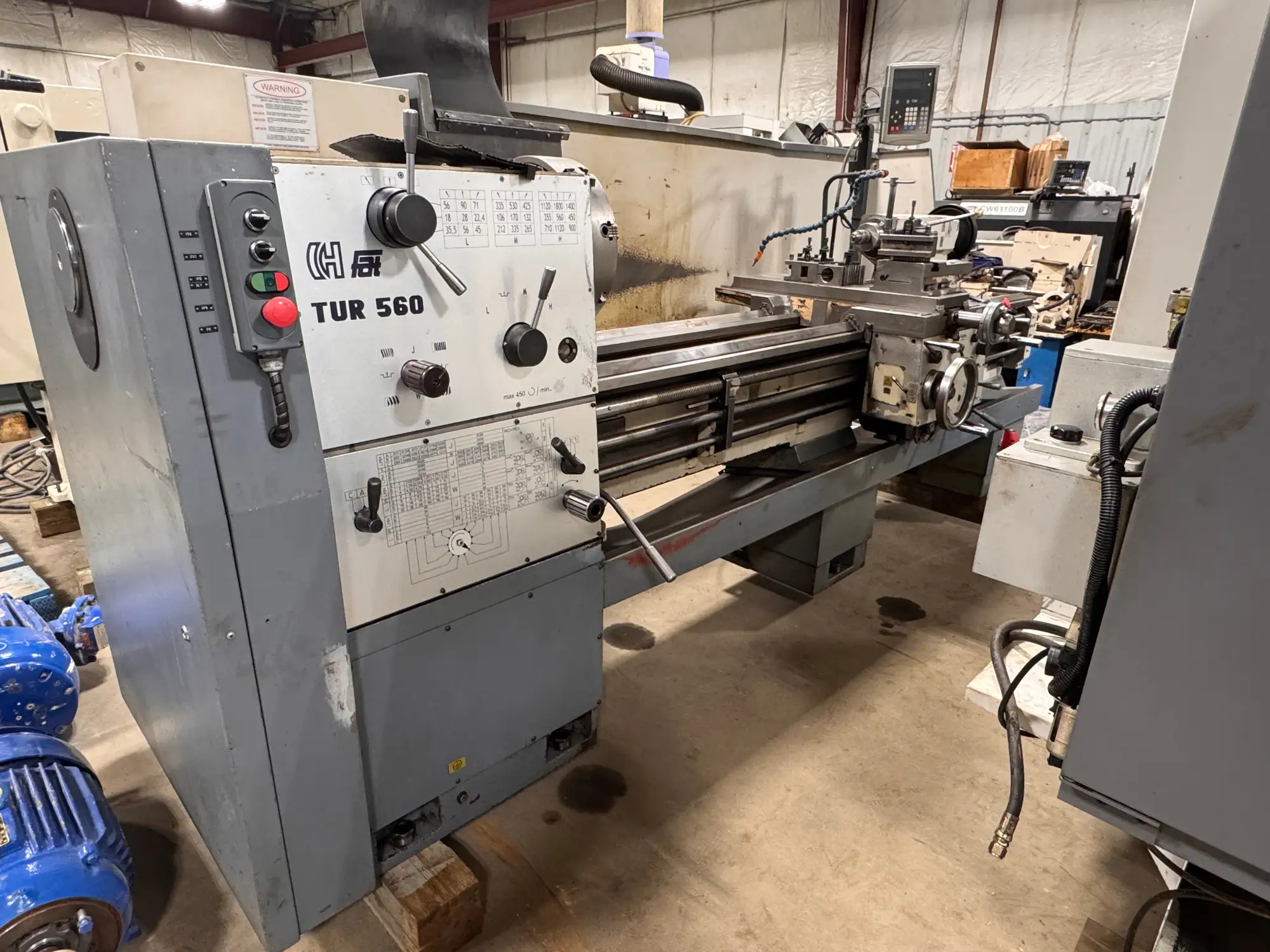

The FAT TUR 560 is a heavy-duty manual engine lathe built in Poland and designed for demanding industrial turning. With a 24" swing over bed, 72" between centers, and a generous 2000 mm turning length, it handles large shafts, rolls, and repair work with ease. A 16" 3-jaw chuck combined with a 4" spindle bore gives strong gripping capability for larger diameter workpieces, while the 18–1800 rpm spindle speed range covers everything from low-speed torque work to finer finishing cuts. The machine is equipped with a quick-change tool post, Newall 2-axis DRO, steady rest, and both chuck and splash guards to support accurate and safer operation. This model is a popular choice in Canada for industrial machining. Supplied on 440 V 3-phase power and weighing 3500 kg, the TUR 560 offers the rigidity and stability required for serious shop environments, with optional 4-jaw chuck available for expanded workholding flexibility.
Specification
Machine: Manual engine lathe
Brand: FAT
Model / Type: TUR 560
Serial Number: 040058
Year of Manufacture: 2004
Country of Origin: Poland
Capacity
Swing Over Bed: 24" (610 mm)
Distance Between Centers: 72" (1829 mm)
Turning Length: 2000 mm (78.7")
Spindle
Spindle Speed Range: 18 – 1800 rpm
Spindle Bore: 4" (102 mm)

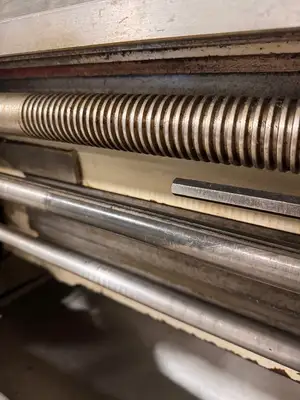

Leadscrew: 4 TPI

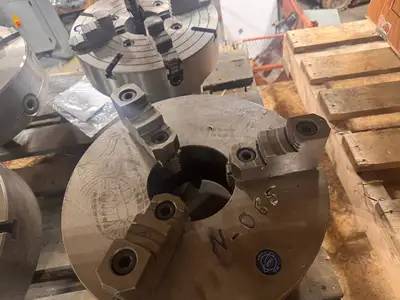

Chuck: 16" diameter, N-68, 3-jaw
Thread Dial: Yes
Feeds / Rapids
Rapid Travel: Yes
Equipment / Features

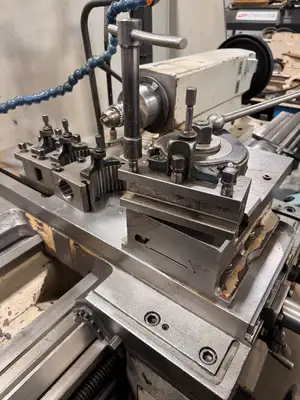

Tool Post: Quick-change

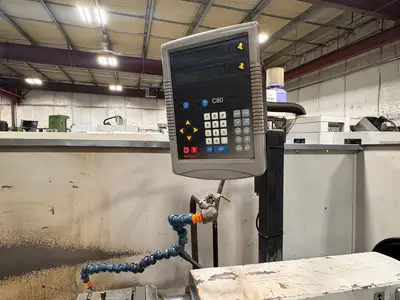

DRO: Newall, 2-axis (X / Y axis)
Steady Rest: Yes
Splash Guard: Yes
Chuck Guard: Yes
Electrical
Power Supply: 440 V, 25 A, 3 phase
Dimensions and Weight
Overall Dimensions (L × W × H): 145" × 60" × 73" (3683 × 1524 × 1854 mm)
Machine Weight: 3500 kg (≈ 7716 lb)
Other
Stock / Reference Number: ST 740
Optional Accessory: 4-jaw chuck available at additional cost ($1,850)
Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
