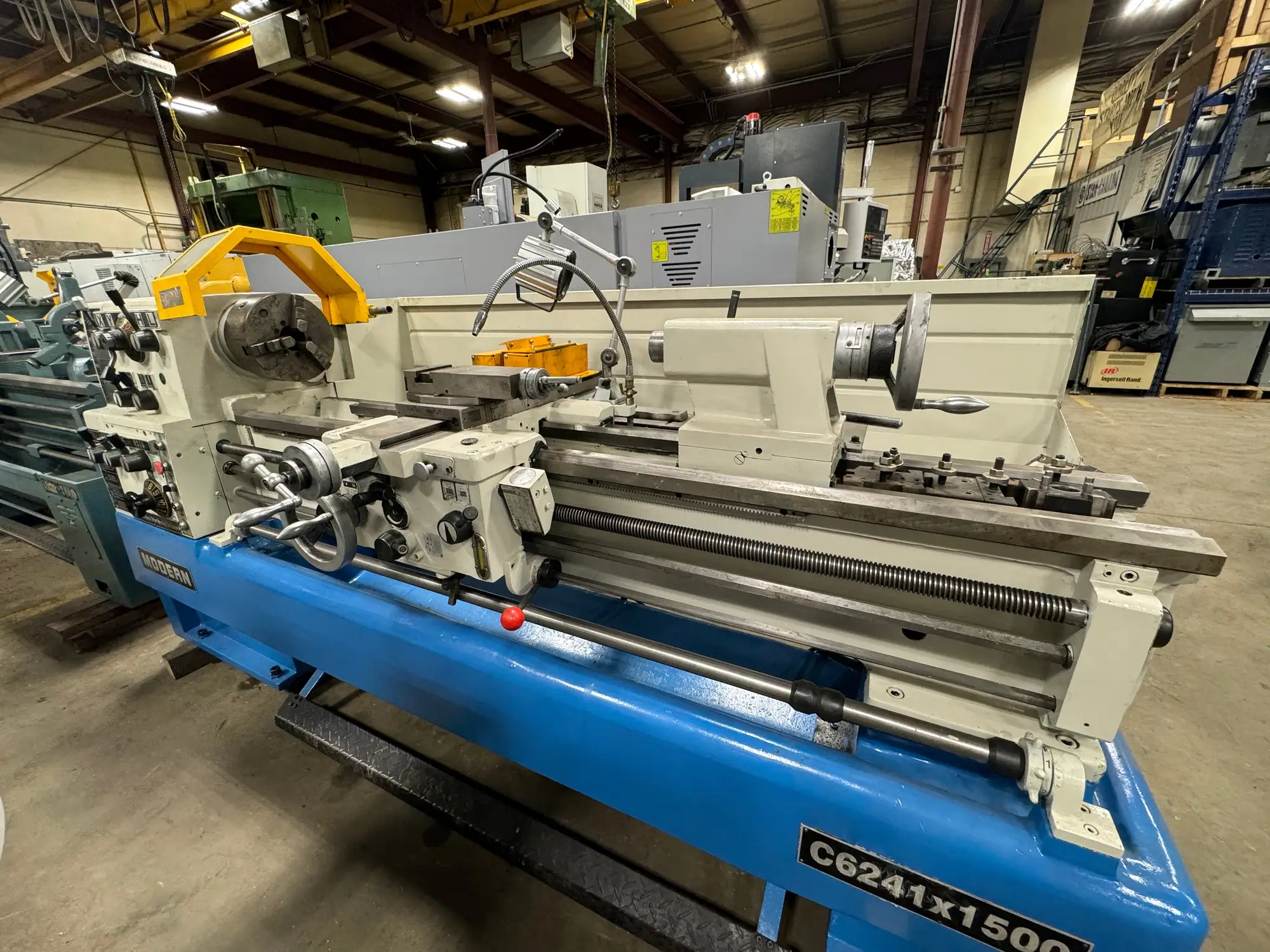

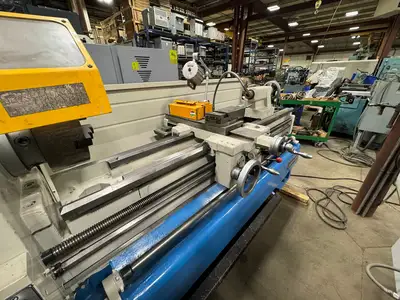

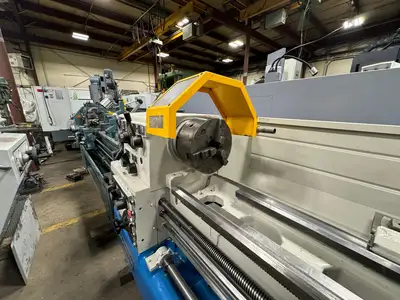

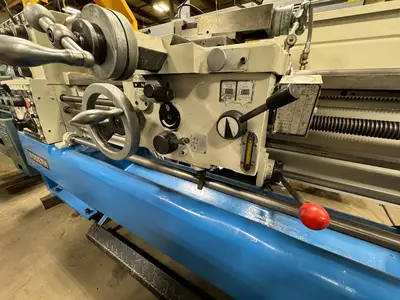

Maximize machining precision with the Modern C6241x1500 lathe, featuring a 16" swing, 60" distance between centers, versatile spindle speeds (32-2000 RPM), and a robust D1-6 spindle nose. Perfect for precise turning operations and reliable performance.
Specifications
Model: C6241x1500
Swing: 16"
Distance: 60"
Swing over cross slide: 9-7/16"
Swing in gap: 23-7/16"
Length of gap: 6-1/2"
Spindle Bore: 2-1/16"
Spindle Nose: D1-6 (Cam 6)
Spindle Speed (12): 32 - 2000 RPM
Compound Travel: 4-3/4"
Cross Slide Travel: 9"
Leadscrew: 4 TPI

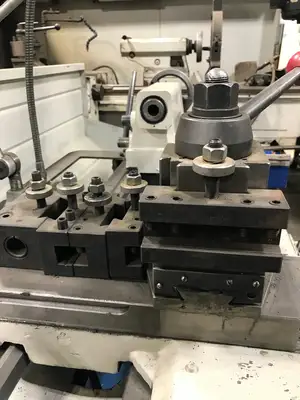

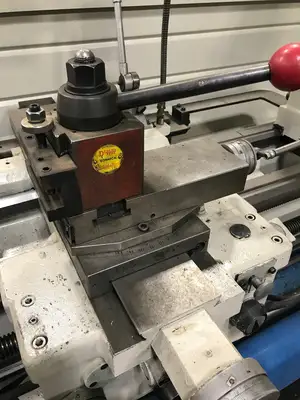

Quick Change toolpost + 5 toolholders

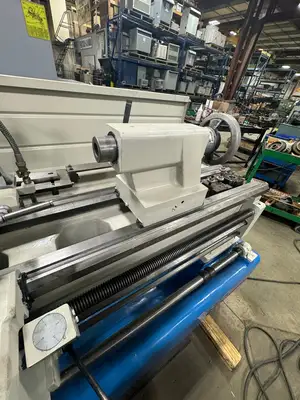

Tailstock Travel: 4-3/4"
Tailstock: MT4
Coolant Pump: 1/8 HP

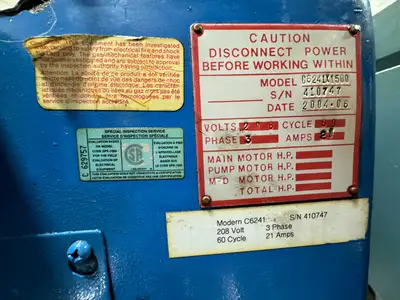

Voltage: 208V, 60 Hz, 3 Phase
Dimensions: 2750 x 980 x 1210
Weight: 2,000 Kg
