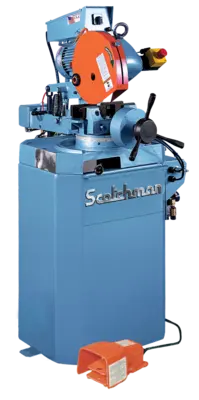

Scotchman ColdSaws CPO 275 PKPD

Cutting Speeds (specify when ordering):
LT (Low Turn): 30 / 60 rpm, Motor rate: 2 hp (for solid mild steel, solid stainless steel & thick wall pipe)
HT (High Turn): 60 / 120 rpm, Motor rate: 1.5 hp (for thin wall tube 0.060 wall thickness or thinner and non-ferrous material)
SS (Single Speed): 60 rpm, Motor rate: 2 hp (for 220v 1ph applications)

Maximum Cutting Capacities (based on mild steel):
TUBING
90 Degree:
Round: 3-3/8"
Square: 3" x 3"
Rectangle: 3" x 2-3/8"
45 Degree:
Round: 2"
Square: 2" x 2"
Rectangle: 2" x 2"

SOLID
90 Degree:
Round: 1-1/2"
Square: 1-1/2" x 1-1/2"
45 Degree:
Round: 1"
Square: 1" x 1"

Motor Options (Factory Wired):
LT & HT: 208/230/460/575v, 3 ph
SS: 220v, 1 ph

Maximum Diameter Blade: 275 mm (10-13/16")
Arbor Bore: 32 mm (1-1/4")
Pin Spacing: 2/8/45
Width: 21-7/8"
Depth: 43-1/2"
Height (not including feed handle): 53-1/4"
Height (floor to vise): 36-1/8"
Shipping Weight (may vary): 670 lbs.
