Cutting Speeds (must specify when ordering):
CPO 315 RFA (ferrous): Variable Speed 11 to 177 rpm, Motor Rate: 5 hp
CPO 315 RFA NF (non-ferrous): 3,000 rpm, Motor Rate: 5 hp
Maximum Cutting Capacities (based on mild steel):
TUBING 90 Degree:
Round: 3"
Square: 2-1/2" x 2-1/2"
SOLID 90 Degree:
Round: 1-3/4"
Square: 1-1/2" x 1-1/2"
Maximum Cutting Capacities (NF) (Non-Ferrous & PVC):
SOLID (NF) 90 Degree:
Round: 3"
Square: 2-1/2" x 2-1/2"
Length Tolerance: ± 0.006" per index
Squareness Tolerance: ± 0.002" per dia. inch
Minimum Cut Length: 1-1/4"
Maximum Cut Length: 80" (90" or 120" Avail.)
Minimum Trim Cut: 1"
Motor Options (Factory Wired): 208/230/460v, 3 ph
Air Pressure: 90 psi
Maximum Saw Blade Diameter: 315 mm (12-3/8")
Arbor Bore Size: 40 mm (1-9/16")
Pin Spacing: 4/12/64
Must Specify Infeed Table Type:
Bundle Loader (BL):
Maximum Raw Stock: Up to 24"
Maximum Lifting Capacity: 4,000 lbs
Dimensions (24" BL): L: 138-3/4" W: 93" H: 60"

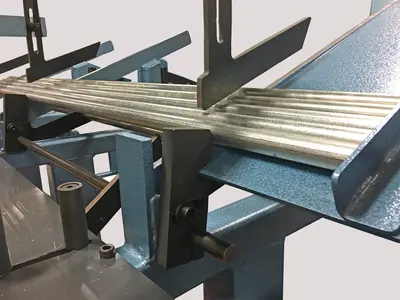

12' Supply Table (ST):
Maximum Raw Stock (12" ST): Up to 24"
Load Table Capacity: 2,500 lbs
Dimensions (12' ST w/60" Saw): L: 240" W: 48" H: 60"
24' Supply Table (ST):
Maximum Raw Stock (24' ST): Up to 24"
Load Table Capacity: 5,000 lbs
Dimensions (24' ST w/60" Saw): L: 384" W: 48" H: 60"
