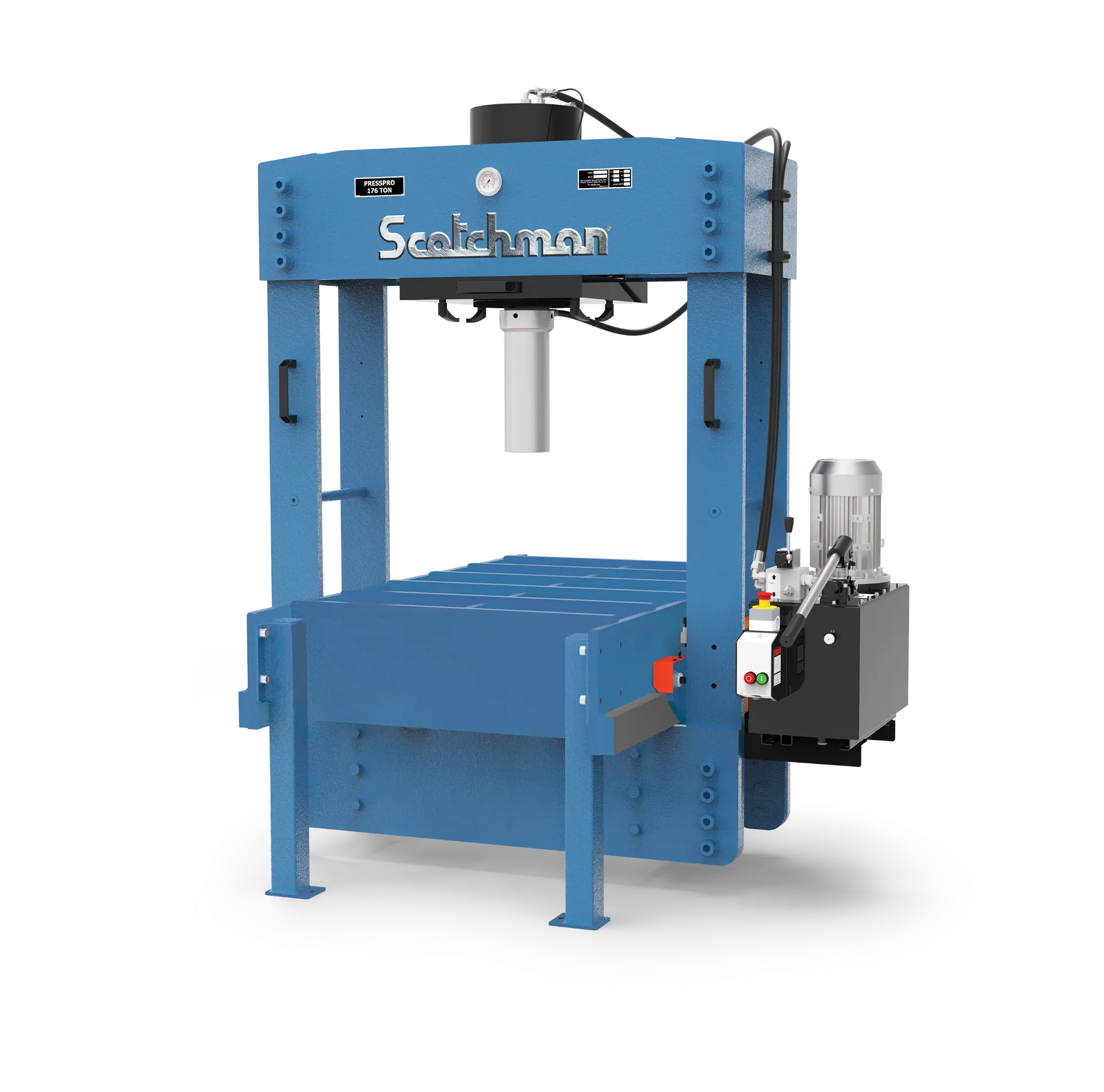

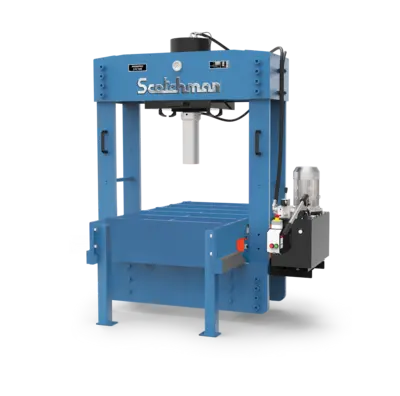

Press Force: 176 tons
Motor Options (must specify): 230/460v, 3ph, 5 hp
Ram Speed - Approach: 18 ipm
Ram Speed - Press: 6 ipm
Ram Speed - Return: 22 ipm
Open Height (min.): 27-1/2" (with small ram cap)
Open Height (max.): 29"
Stroke: 15-3/4"
Cylinder Extension: 14-1/4"
Lateral Ram Slide: YES
Width Between Uprights: 43-1/4"
Width Between Table Channels: 15"
Table Height: FIXED at 30"
Table Size (L x W): 68-1/2" x 39-1/4"
Frame Movement (forward & back): 39-1/4"
Max Load: 1,653 lbs
Footprint (L x W): 68-1/2" x 68"
Height Overall: 83"
Approx. Weight: 4,994 lbs.
