Punching Capacity: 45 Ton (41 mt)
1-1/8" in 1/2" (28mm in 12mm)

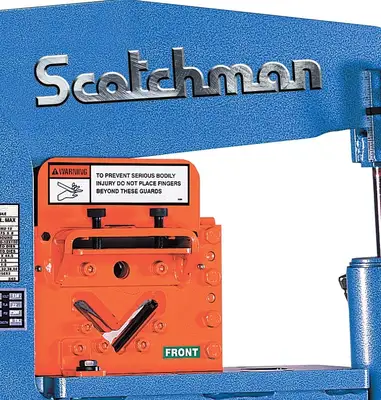

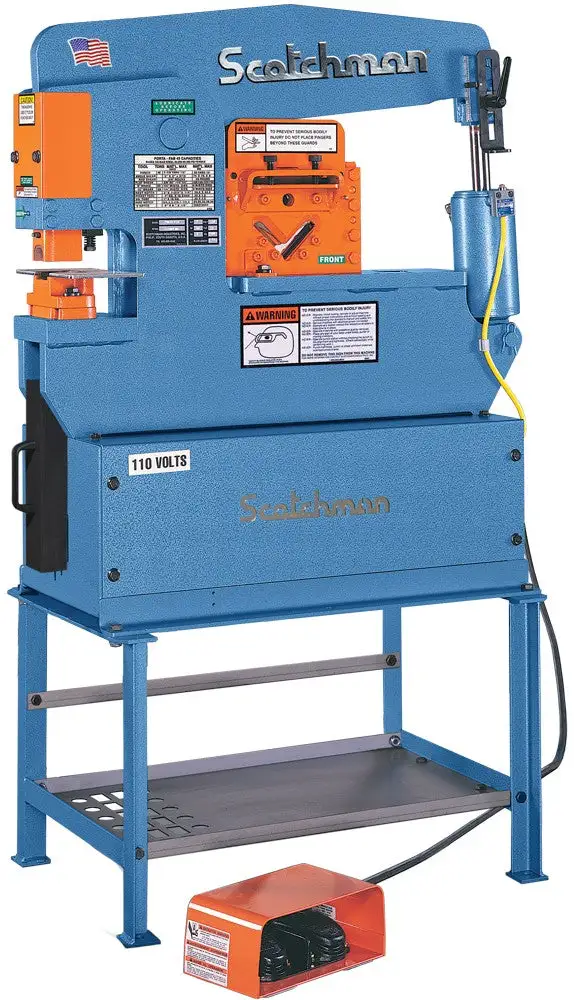

Model: Porta Fab 45
Special Tooling: 2-1/4" Max. Dia.
Throat Depth: 4-1/4"
Flat Bar Shear: 6" Length 1/2" x 4" 3/8" x 6"
Angle Shear 90 degree: 3" x 3" x 5/16"
Angle Shear 45 degree: 2" x 2" x 1/4"
Round Rod Shear: 3/4"
Brake 8": 25 Ton
Brake 12": 20 Ton
Open End Brake: Max. 1/4" x 3" (Flat or Angle Iron)
Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher: 2" x 1-3/4" x 1/4"
90 degree V-Notcher: 6" x 6" x 1/8"
Rod Shear Round (max.): 5 Cavity - 1/4" to 1"
Rod Shear Square (max.): 1 Cavity - 1/4" to 3/4"
Unistrut Shear: Samples Required
Square Tube Shear: 1/2" to 1", 12 gauge
Picket Tool: 1/2", 3/4" & 1", 16 gauge
Weld Coupon Bender (max.): 2" wide x 3/8"
Strokes per minute in light material: 10 spm [Punch Station]
Strokes per minute in heavy material: 4 spm [Punch Station]
Hydraulics: 2,500 psi
Motor Standard: 2 hp 110v
Motor Optional: 2 hp 220v, 1 ph
Dimensions: L: 38-1/4" W: 20" H: 39-1/2"
Shipping Weight (may vary): 710 lbs.
