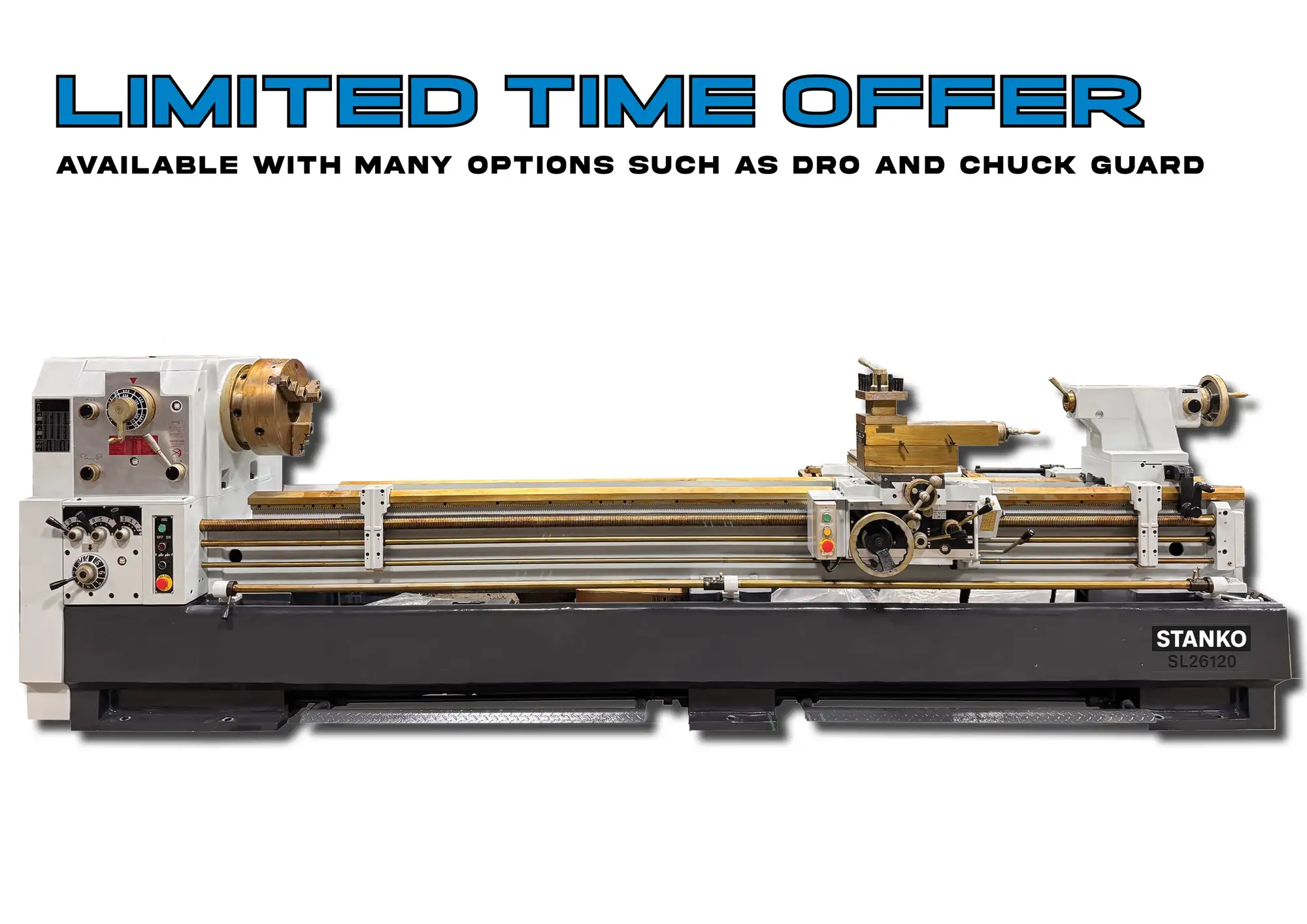

Stanko LA 660X3000 Manual lathe

he
Stanko LA 660×3000
is a heavy-duty manual engine lathe built by the same reputable Taiwanese manufacturer that produced the well-known
Modern 660×3000
model. This machine delivers the same proven reliability, rigidity, and cutting performance that many Canadian shops already trust. With a
26" swing over bed
,
118" between centers
, a
4.1" spindle bore
, and a
D1-11 camlock spindle
, it is engineered for machining large shafts, flanges, rollers, and general heavy turning.

An upgraded
15 HP main motor
,
rigid 15.75" wide bed
,
12 spindle speeds (13–1200 rpm)
, and
36 feed combinations
support precise roughing and finishing work. The
removable gap
allows oversized flange turning, while the large spindle bore makes this lathe ideal for long-shaft jobs in maintenance, oilfield, and job-shop environments.

Each Stanko LA 660×3000 comes equipped with a
15" 3-jaw chuck
,
drive plate
,
steady rest with rollers
,
dead center
,
coolant system
, and
leveling screws
. Optional upgrades include a
4-jaw chuck
,
DRO
, and additional tooling, making this machine a reliable and cost-effective replacement for the classic Modern Tool 660×3000 lathe.

Specifications:
Swing over bed: 25.98”
– Swing over carriage: 17.52”
– Swing over gap: 35.12”
– Width of gap in front of face plate: 10.63”
– Distance between centers: 118”
– Width of bed: 15.75”
– Compound slide travel: 7.5”
– Cross slide travel: 15.75”
– Spindle bore: 4 1/16”
– Chuck: 15" 3 Jaw, Bore-5"
– Taper of spindle bore & center: MT#7 & MT #5
– Spindle nose: D1-11
– Number of spindle speeds: 12
– Spindle speed: 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 rpm
– Number of feeds: 36
– Range of longitudinal feeds: 0.037~1.04mm/rev (P=6 mm, 12mm); 0.035~0.98mm/rev (4 TPI, 2TPI)
– Range of cross feeds: ½ of longitudinal feeds – Lead screw diameter: 1.77”
– Lead screw pitch: 4TPI, P=6mm
– Range of inch pitches: 2~72 TPI / 44 kinds (1~42TPI/ 48 kinds)
– Quill stroke: 7”
– Quill diameter: 2.95”
– Quill taper: MT #5
– Main motor: 15 HP/ 3P
– Voltage: 220V
– Coolant pump motor: ⅛ HP
– Machine height: 60”
– Dimensions 184"x56"x47"
– Weight: 6,930 lbs.

Standard Accessories:
– Multi-position length stop
– 12” drive plate
– Center sleeve MT # 7 x 5
– Service kit
– Dead center MT# 5
– Coolant system
– Leveling screws
– Steady rest 1.57”~10” with roller jaws
– 15 HP/4 P main motor
Optional Accessories:
20" 4 Jaw Chuck $2,295.00
Large rollers style steady rest 16" $2,480.00
Follow Rest $648.00
Taper Attachment $3,990.00
Rear Splash Guard $1,480.00
DRO System $3,990.00
LED Work Light $180.00
