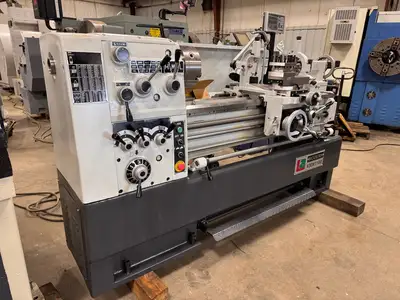

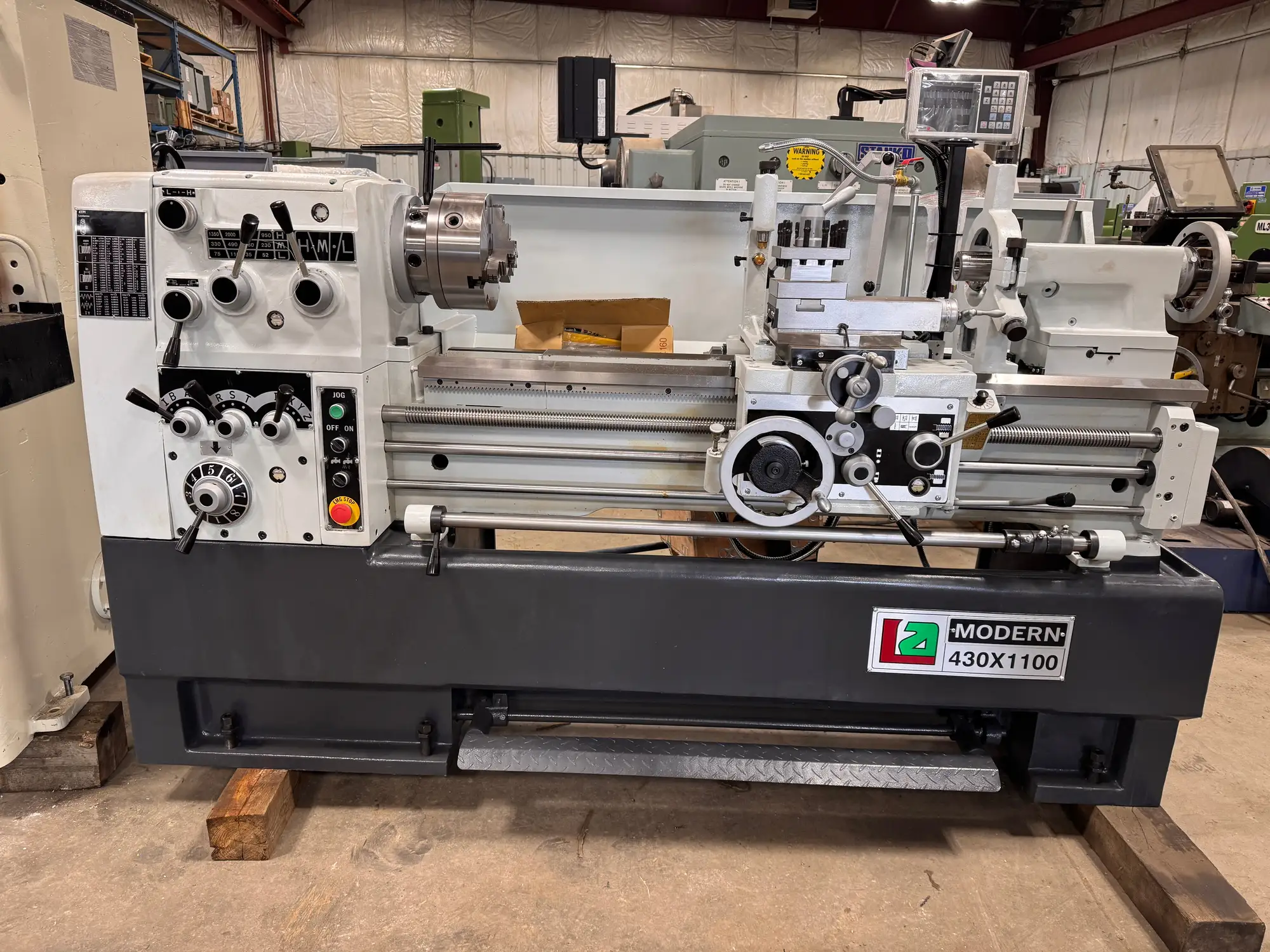

Modern La430x1100 Precision Lathe
Modern 17×44 is a heavy-duty precision engine lathe designed for machining, repair, and general turning operations. With a 17″ swing over bed and 44″ distance between centers, this machine provides excellent rigidity and accuracy for demanding shop work. A 2″ spindle bore and wide speed range (35–2000 RPM) make it versatile for threading, turning, and production machining.
This model is equipped with a D1-6 camlock spindle nose, hardened bedways, and a 7.5 HP motor, making it suitable for both light finishing jobs and heavy stock removal.
Brand:
Modern
Model:
17×44 (LA-430×1100)
Swing Over Bed:
17″ (430 mm)
Swing Over Cross Slide:
10.2″ (260 mm)
Swing in Gap:
24.8″ (630 mm)
Distance Between Centers:
44″ (1100 mm)
Spindle Bore:
2″ (52 mm)
Spindle Nose:
D1-6 Camlock
Chuck 10"
3 jaw (2 piece) self centering

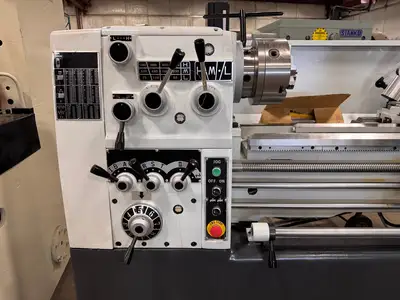

Spindle Speeds:
18 steps, 35–2000 RPM
Motor:
7.5 HP

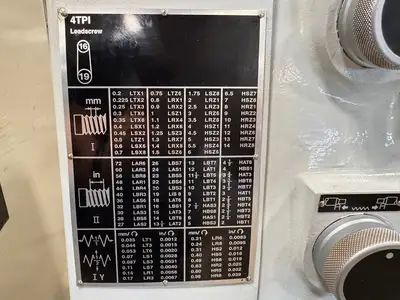

Threads Inch:
45 (2–72 TPI)
Threads Metric:
39 (0.2–14 mm)
Feeds Longitudinal:
0.0015–0.040 IPR (39 ranges)
Feeds Cross:
0.00075–0.020 IPR (39 ranges)

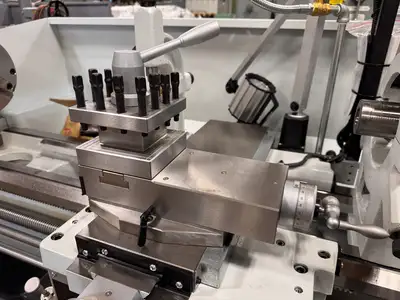

Compound Travel:
5.1″ (130 mm)
Cross Slide Travel:
9.4″ (240 mm)
Tailstock Quill Travel:
6.1″ (155 mm)
Tailstock Quill Diameter:
2.5″ (63.5 mm)
Tailstock Taper:
MT #4
Power:
220 V, 3 Phase, 60 Hz
Bed Width:
11.8″ (300 mm)
Overall Dimensions:
~92″ × 37″ × 48″
Weight:
~4,400 lbs
We also stock other sizes in the same series, including:
STANKO LA460x1500
– 18″ swing × 60″ centers
STANKO LA560x2000
– 22″ swing × 80″ centers
Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
