The

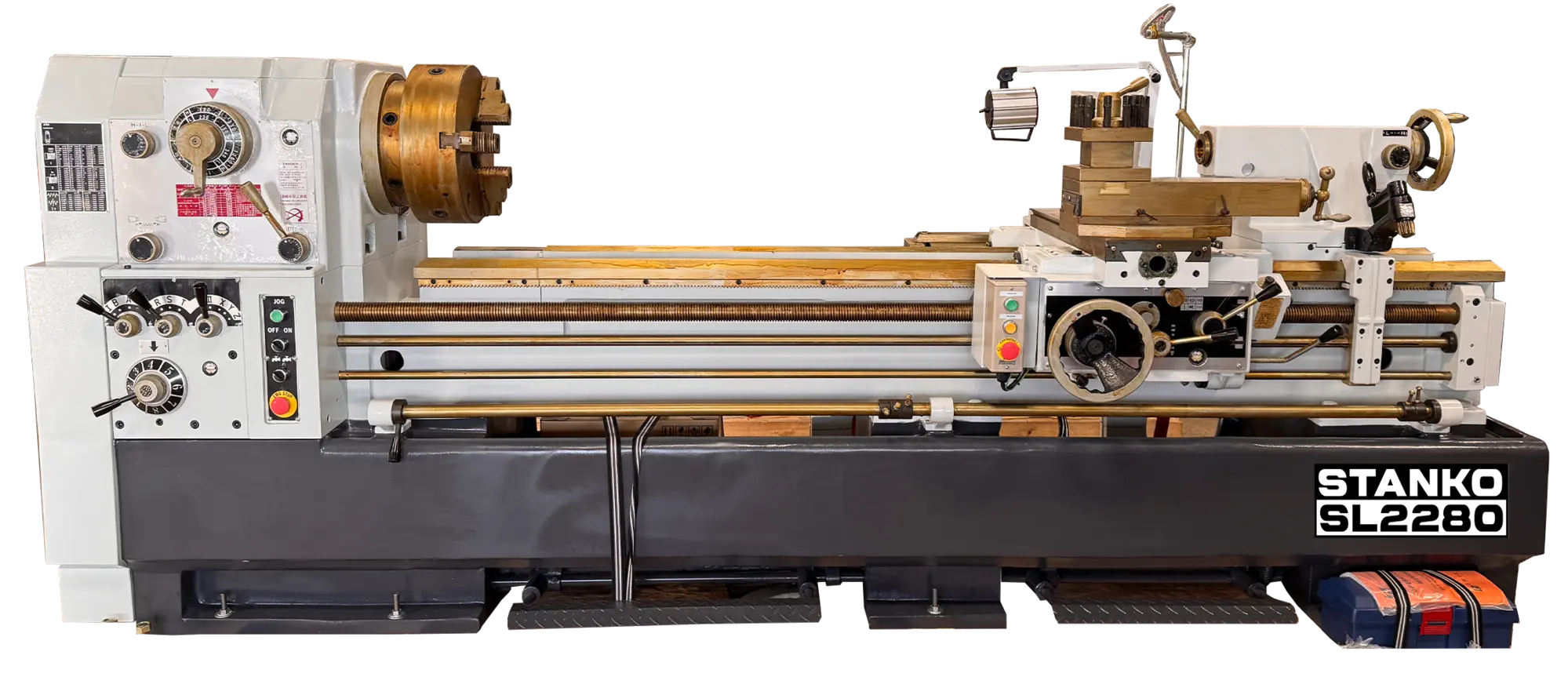

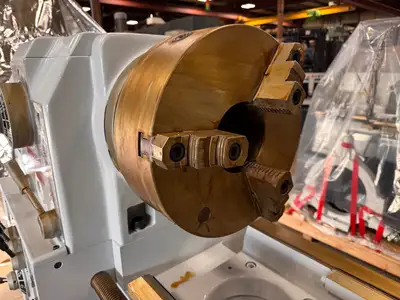

STANKO LA560x2000
is a robust heavy-duty manual lathe designed for industrial turning precision. With a 22" swing, 80" between centers, and a 4-1/16" spindle bore, this lathe provides excellent rigidity for demanding workpieces. Featuring a 12-speed headstock (8–800 RPM), full inch and metric threading capability, and a powerful 15 HP motor, it’s built for accuracy, performance, and reliability. Includes a full accessory package with follow rest, 4-jaw independent chuck, 16" steady rest, and optional DRO system.
Swing Over Bed: Ø560 mm (22”)
Swing Over Carriage: Ø340 mm (13-3/8”)
Swing in Gap: Ø797 mm (31-3/8”)
Width of Bed: 400 mm (15-3/4”)
Total Travel of Tool Post: 242 mm (9-1/2”)
Total Travel of Cross Slide: 190 mm (7-1/2”)
Height of Center from Base: 1067.5 mm (42”)
Distance Between Centers: 2000 mm (78.74”)

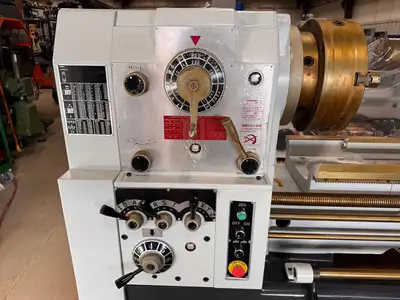

Headstock
Spindle Bore: Ø104 mm (4-1/16”)
Type of Spindle Nose: ASA A1-11 (D1-11)
Taper of Spindle Bore & Center: MT No. 7 × No. 5
Number of Spindle Speeds: 12 steps
Spindle Speeds (RPM): 8, 13, 20, 31, 47, 70, 105, 153, 230, 340, 530, 800
Spindle Motor (optional range): 7.5 HP / 6 P — RPM 8–800
Threading & Feeds
Number of Longitudinal Feeds: 36
Range of Longitudinal Feeds:
Inch: 0.035 – 0.99 mm/rev (0.0014” – 0.039”)
Metric: 0.037 – 1.04 mm/rev (0.0014” – 0.041”)
Range of Cross Feeds: ½ of longitudinal feeds
Lead Screw Diameter & Pitch: Ø45 mm (1 3/4”) × 4 TPI or 6 mm (2 TPI optional)
Threading Range:
Metric (6 mm lead screw): 0.2 – 14 mm (44 changes)
Inch (4 TPI lead screw): 2 – 72 TPI (44 changes)
Tailstock
Tailstock Spindle Diameter: Ø75 mm (2 15/16”)
Travel of Tailstock Spindle: 178 mm (7”)
Taper of Tailstock Spindle: MT No. 5
Motors
Main Spindle Motor: 15 HP
Voltage: 220V
Coolant Pump Motor: 1/8 HP
Machine Dimensions & Weight
Floor Space Required (L × W × H): 3700 × 1200 × 1500 mm
Packing Dimensions (Approx.): 3700 × 1300 × 1900 mm
Net Weight (Approx.): 3500 kg
Additional accessories avaialble (extra charge):
Follow rest
4 Jaw Chuck independent
DRO optional
16" Steady rest
