USED 1975 GRAY SERIES 300 HEAVY DUTY
Overview
Description

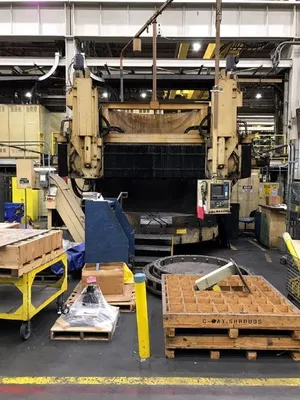

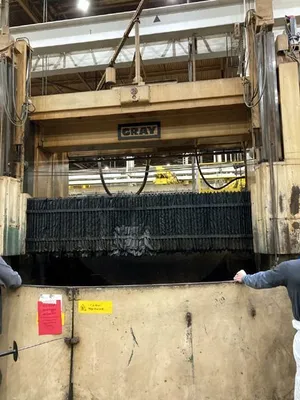

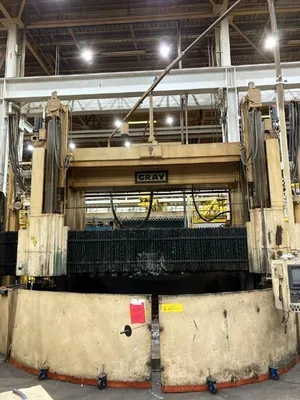

GRAY SERIES 300 HEAVY DUTY Vertical Boring Mill, 1975 model. Features a 192" table diameter and 204" swing, operating at 50 RPM. Condition: used. Perfect for large-scale machining tasks that require robust, reliable equipment.
Specifications
| Table Dia | 192" | 4,876.8 mm |
|---|---|---|
| Swing | 204" | 5,181.6 mm |
| Work Ht-U/R | 120" | 3,048 mm |
| RPM | 50 RPM | 50 RPM |
| Control | CNC (Fanuc 15TT) | CNC (Fanuc 15TT) |
Table Dia 192 "
Swing 204 "
Height 120 "
Age/Rtf 1975
Model 300 Series
Control GE FAUNC 15-TT
Additional Info:

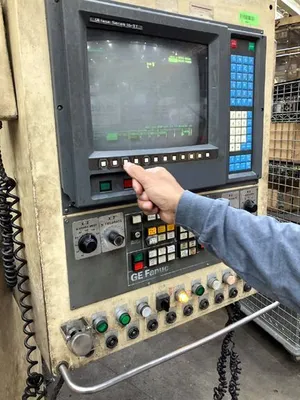

• GE FANUC 15-TT CNC Controls
• Set of Four 14" Face Plate Jaws (For use with Plain Table)
• RPM Indicator
• Table load Meter
• Flood Coolant, Mist Coolant, Chip Conveyor, Chip Guards
• R.H. & L.H. Ram Type with Power Index Tool Block
• Max/Min Height under Rail Head: 120"/24"
• Max Height under Ram or Ram Tool Block: 108"
• Ram Travel below Saddle: 96"
• Ram Head Travel to Table Center: 1"
• Smallest Hole Ram will Enter: 15-1/2"
• Number of Tool Positions in Ram Tool Block: (4)
• Size of Slots in Ram Tool Block for either RH or LH Tools: 1-1/2"
